G47TZ-RF2K080 (367h 29K080r ZR)
Swivel castor with total brake mounted behind 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 111 mm |
| Offset | 43,5 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- available with plate PD (77x67 mm) and PF (95x70 mm)
- available with bolt hole LC (10,2 mm) and LD (12,2 mm)
- on inquiry also available with fixing pin Z522 (24x45 mm) and Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
GMF-21G-L10 (Serie/s GM)
Swivel castor with total brake mounted behind 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Offset | 23 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 75 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- plain bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
GMF-21G-P60 (Serie/s GM)
Swivel castor with total brake mounted behind 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Offset | 23 mm |
| Top plate dimensions | 60x60 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 38x38-48x48 mm |
| Brake swivel radius | 75 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- plain bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment

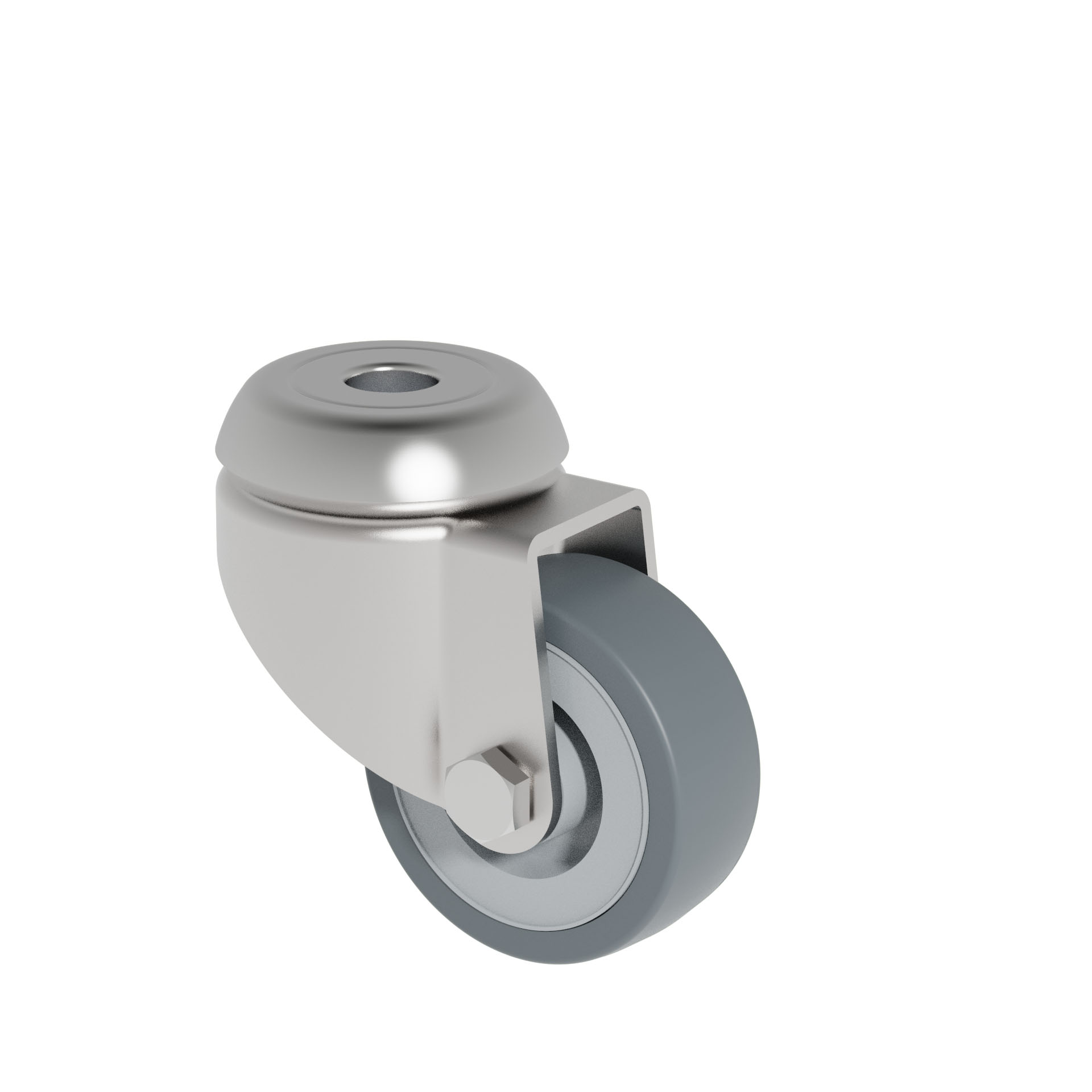

GML-21C-L10 (Serie/s GM)
Swivel castor 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Offset | 23 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 48 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
GML-21C-P60 (Serie/s GM)
Swivel castor 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Offset | 23 mm |
| Top plate dimensions | 60x60 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 38x38-48x48 mm |
| Brake swivel radius | 48 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
GMR-21G-P60 (Serie/s GM)
Fixed castor 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Top plate dimensions | 63x60 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 38x38-48x48 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- plain bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- zinc passivated
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
GMR-31C-P60 (Serie/s GM)
Fixed castor 50 mm - 75 mm, 50 kg - 60 kg
Technical data
| Diameter | 75 mm |
| Tread width | 25 mm |
| Hub length | 28 mm |
| Height | 101 mm |
| Top plate dimensions | 63x60 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 38x38-48x48 mm |
| Load capacity | 60 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- zinc passivated
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
GSF-41C-L10 (Serie/s GS)
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 32 mm |
| Hub length | 36 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 130 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment

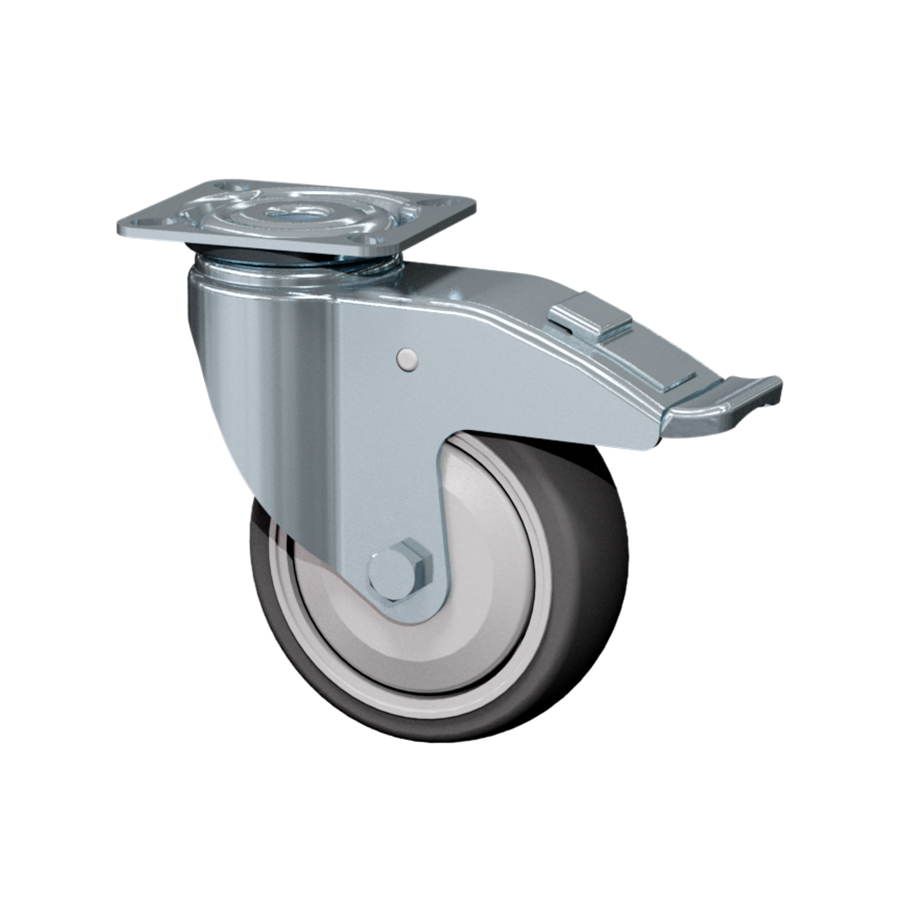

GSF-41C-P77 (Serie/s GS)
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 32 mm |
| Hub length | 36 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Top plate dimensions | 77x67 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Brake swivel radius | 130 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment

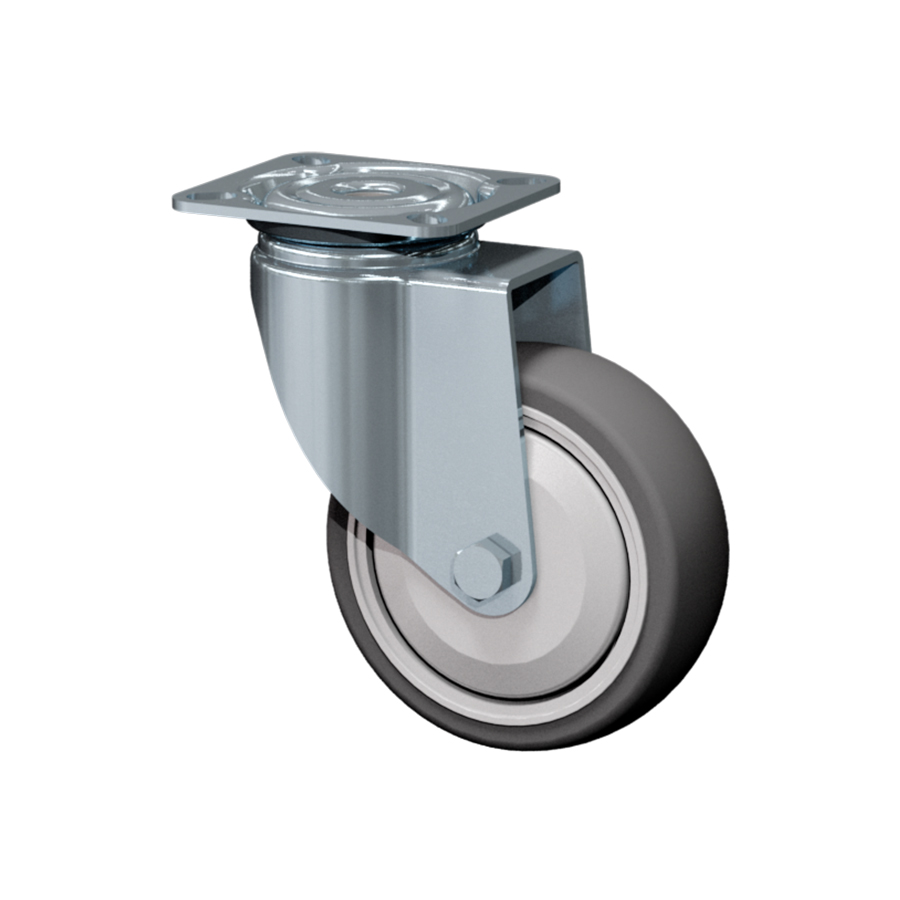

GSL-41C-L10 (Serie/s GS)
Swivel castor 100 mm - 150 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 32 mm |
| Hub length | 36 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 93 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
