Transport Appliance Castors
The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from RHOMBUS are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.
439a 00R065p ZPG
Fixed castor 65 mm - 200 mm, 100 kg - 300 kg
Technical data
| Diameter | 65 mm |
| Tread width | 33 mm |
| Height | 92 mm |
| Top plate dimensions | 104x84 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 100 kg |
| Weight | 318 g |
Wheel
- polyamide white
- roller bearing
Technical description
- stable sheet steel design and proven technology
- wide choice of wheels for different areas of application
- zinc passivated
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers

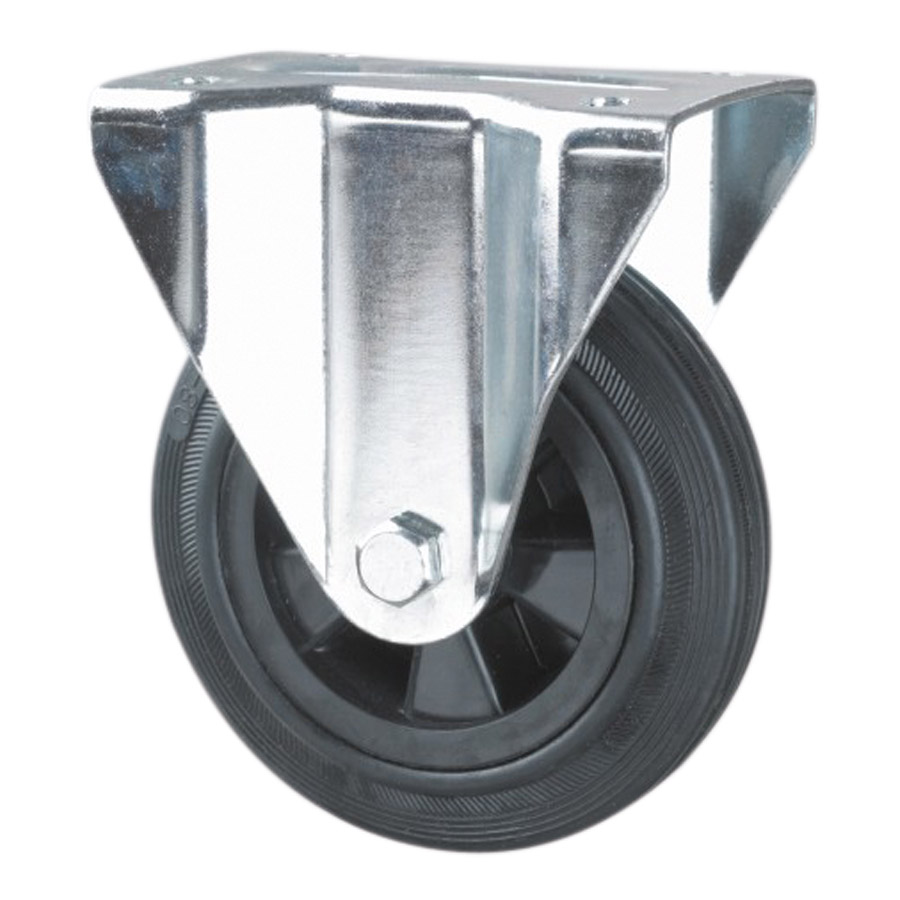

439a 07R080c ZPG
Fixed castor 80 mm - 200 mm, 50 kg - 205 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Height | 107 mm |
| Top plate dimensions | 104x84 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 50 kg |
Wheel
- solid rubber tyre black (Shore A 80)
- plastic wheel centre
- roller bearing
Technical description
- stable sheet steel design and proven technology
- wide choice of wheels for different areas of application
- zinc passivated
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers

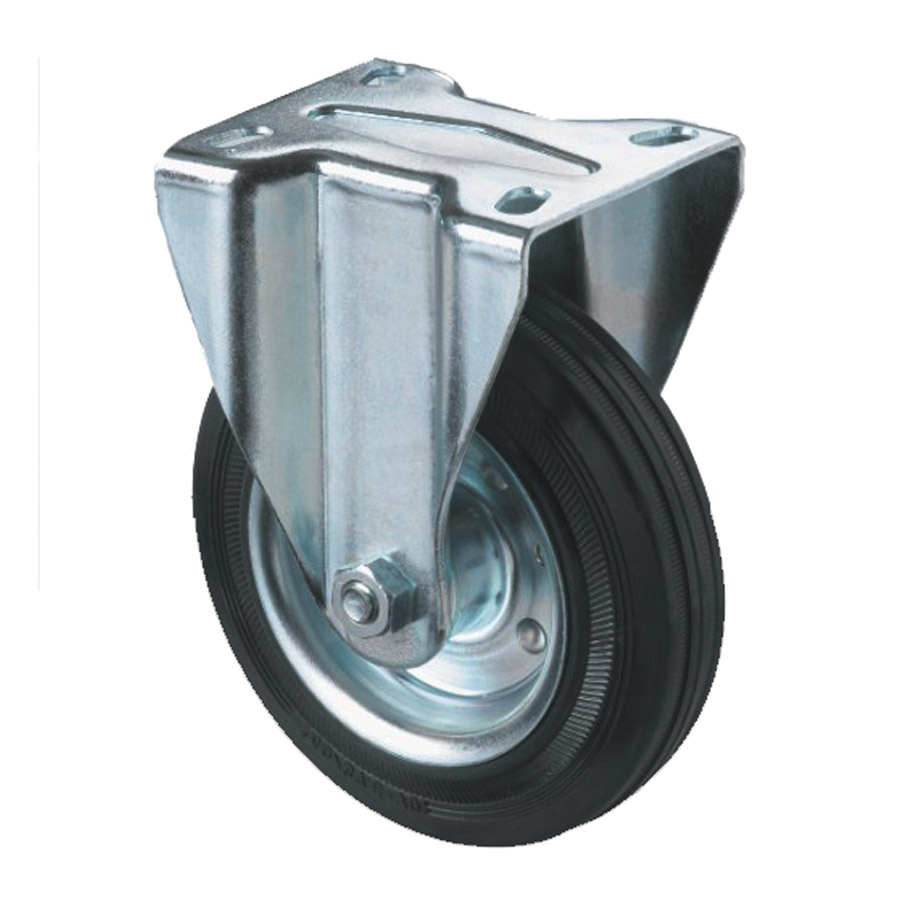

439a 08R080c ZPG
Fixed castor 80 mm - 200 mm, 50 kg - 205 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Height | 107 mm |
| Top plate dimensions | 104x84 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 50 kg |
| Weight | 473 g |
Wheel
- solid rubber tyre black (Shore A 80)
- sheet steel metal rim zinc passivated
- roller bearing
Technical description
- stable sheet steel design and proven technology
- wide choice of wheels for different areas of application
- zinc passivated
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers

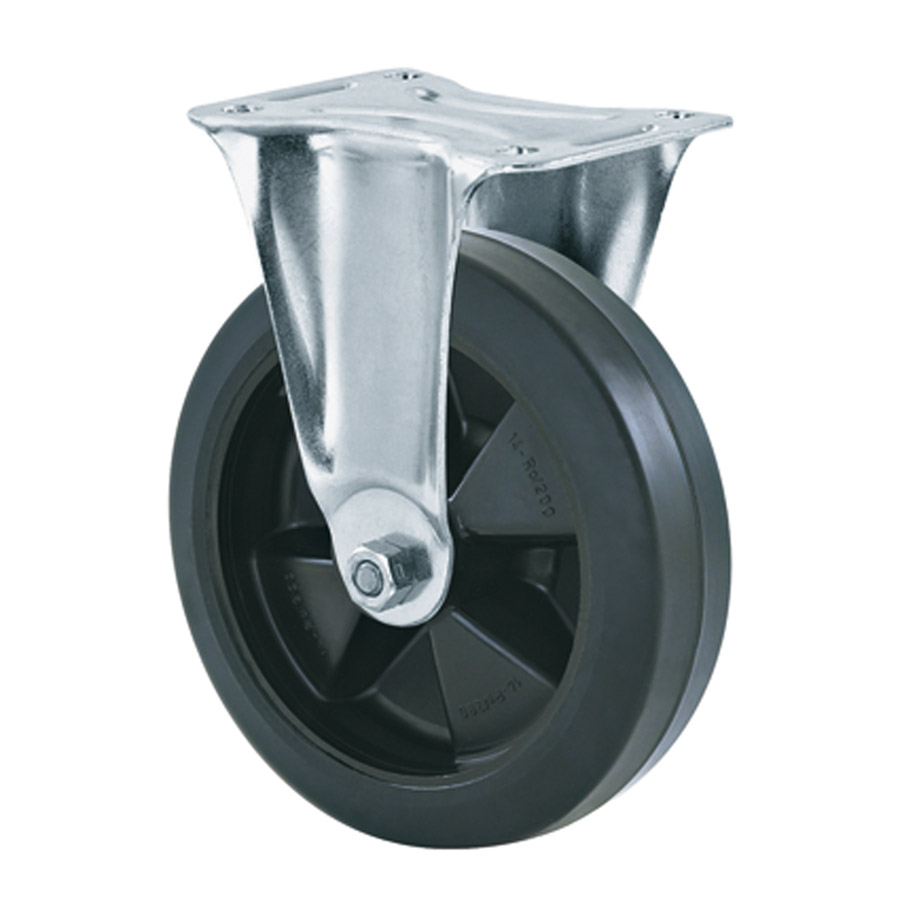

439a 14R100d ZPG
On request
Fixed castor 100 mm - 125 mm, 140 kg
Technical data
| Diameter | 100 mm |
| Tread width | 26 mm |
| Height | 128 mm |
| Top plate dimensions | 104x84 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 140 kg |
| Weight | 496 g |
Wheel
- elastic solid rubber tyre blue (Shore A 70)
- vulcanised firmly on plastic wheel centre black
- roller bearing
Technical description
- stable sheet steel design and proven technology
- wide choice of wheels for different areas of application
- zinc passivated
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers
441a 00R065p ZLD
On request
Swivel castor 65 mm - 100 mm, 100 kg - 125 kg
Technical data
| Diameter | 65 mm |
| Tread width | 33 mm |
| Height | 90,5 mm |
| Offset | 37,5 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
Wheel
- polyamide white
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers
441a 00R065p ZPH
Swivel castor 65 mm - 200 mm, 100 kg - 300 kg
Technical data
| Diameter | 65 mm |
| Tread width | 33 mm |
| Height | 92 mm |
| Offset | 37,5 mm |
| Top plate dimensions | 104x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 100 kg |
| Weight | 539 g |
Wheel
- polyamide white
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers

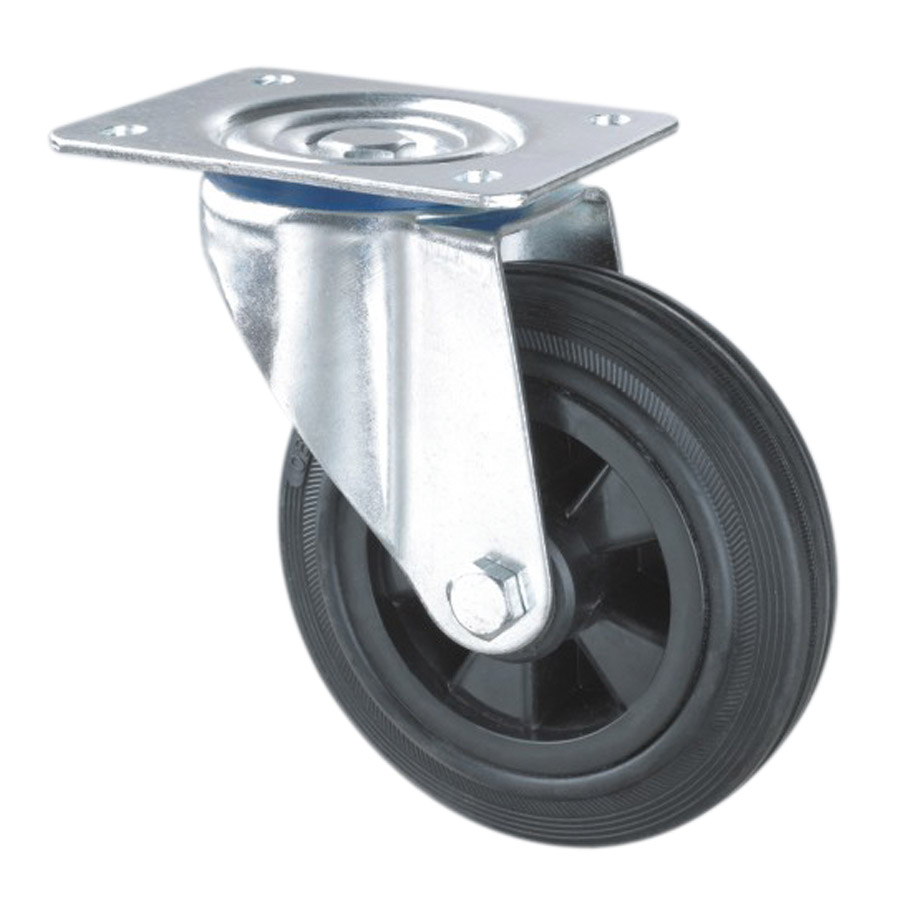

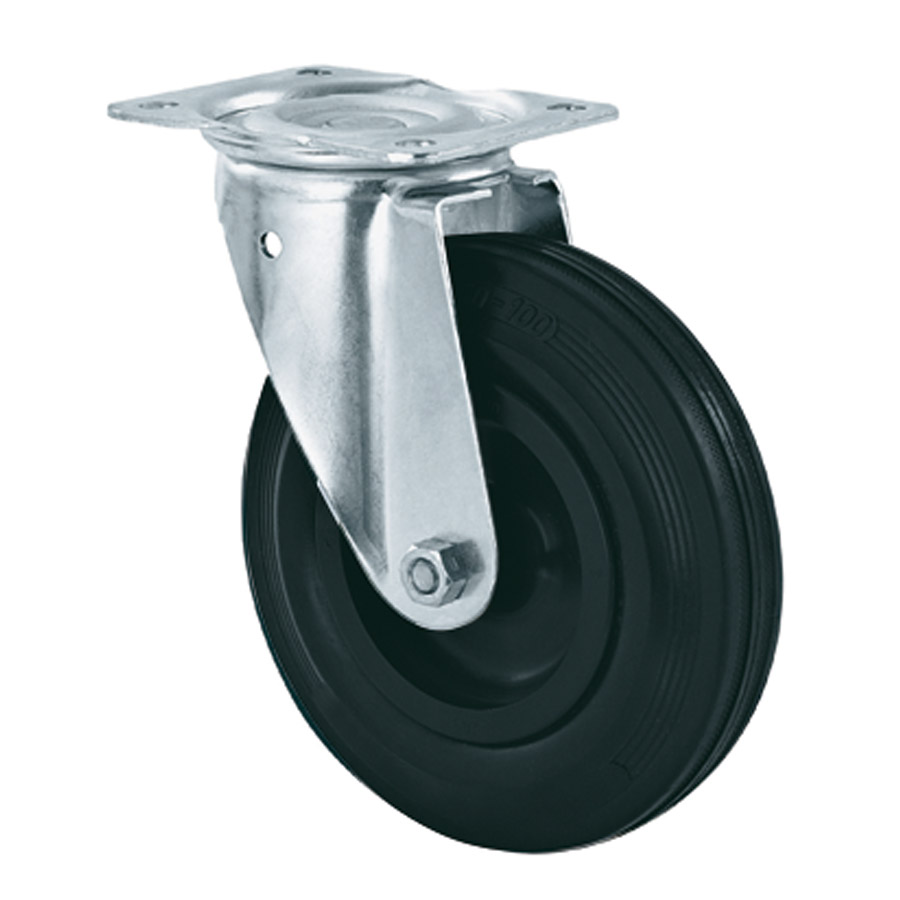

441a 07R080c ZPH
Swivel castor 80 mm - 200 mm, 50 kg - 205 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Height | 107 mm |
| Offset | 34 mm |
| Top plate dimensions | 104x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 50 kg |
| Weight | 630 g |
Wheel
- solid rubber tyre black (Shore A 80)
- plastic wheel centre
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers
441a 07R125c ZLD
Swivel castor 80 mm - 125 mm, 50 kg - 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 22 mm |
| Height | 151 mm |
| Offset | 32 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
Wheel
- solid rubber tyre black (Shore A 80)
- plastic wheel centre
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- magazine carts
- tool trolleys
- transport containers
- transport trolleys
- waste disposal containers
441a 08R080c ZLD
Swivel castor 80 mm - 125 mm, 50 kg - 100 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Height | 105,5 mm |
| Offset | 34 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 50 kg |
Wheel
- solid rubber tyre black (Shore A 80)
- sheet steel metal rim zinc passivated
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers

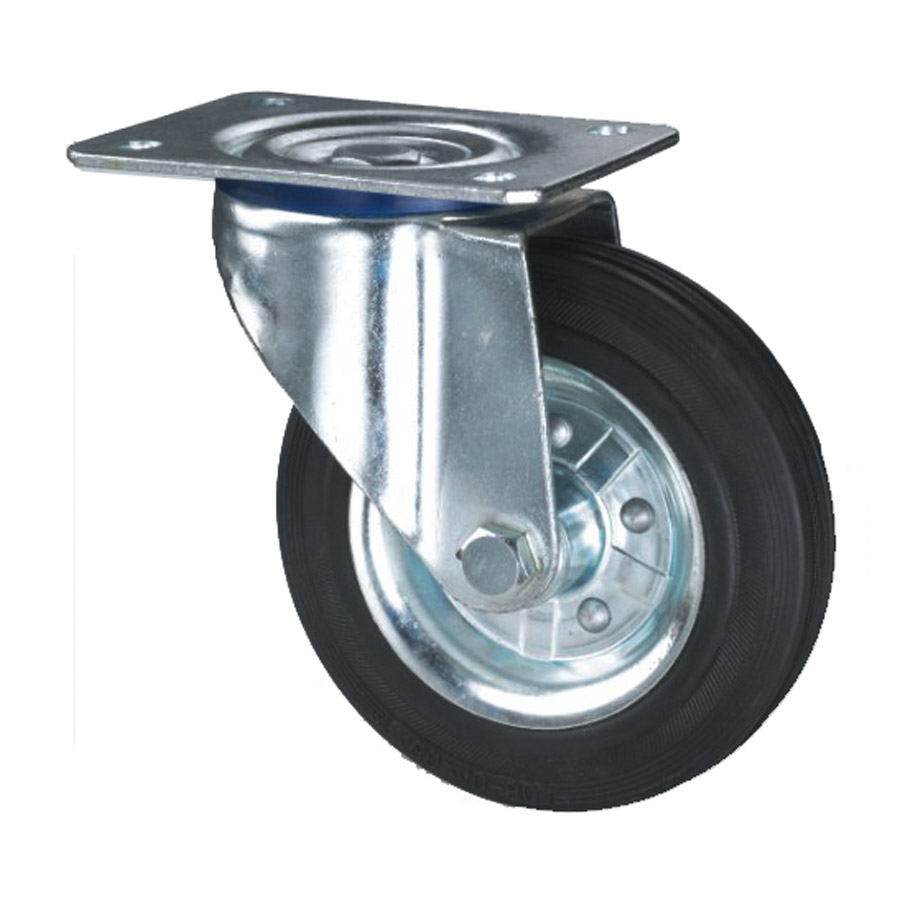

441a 08R080c ZPH
Swivel castor 80 mm - 200 mm, 50 kg - 205 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Height | 107 mm |
| Offset | 34 mm |
| Top plate dimensions | 104x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 72x52/80x60 mm |
| Load capacity | 50 kg |
| Weight | 693 g |
Wheel
- solid rubber tyre black (Shore A 80)
- sheet steel metal rim zinc passivated
- roller bearing
Technical description
- stable sheet steel design and proven technology
- easy running double ball bearing for good manoeuvrability
- wide choice of wheels for different areas of application
Areas of application
- assembly dolly
- creeper dolly
- picking carts
- transport containers
- magazine carts
- tool trolleys
- waste disposal containers
