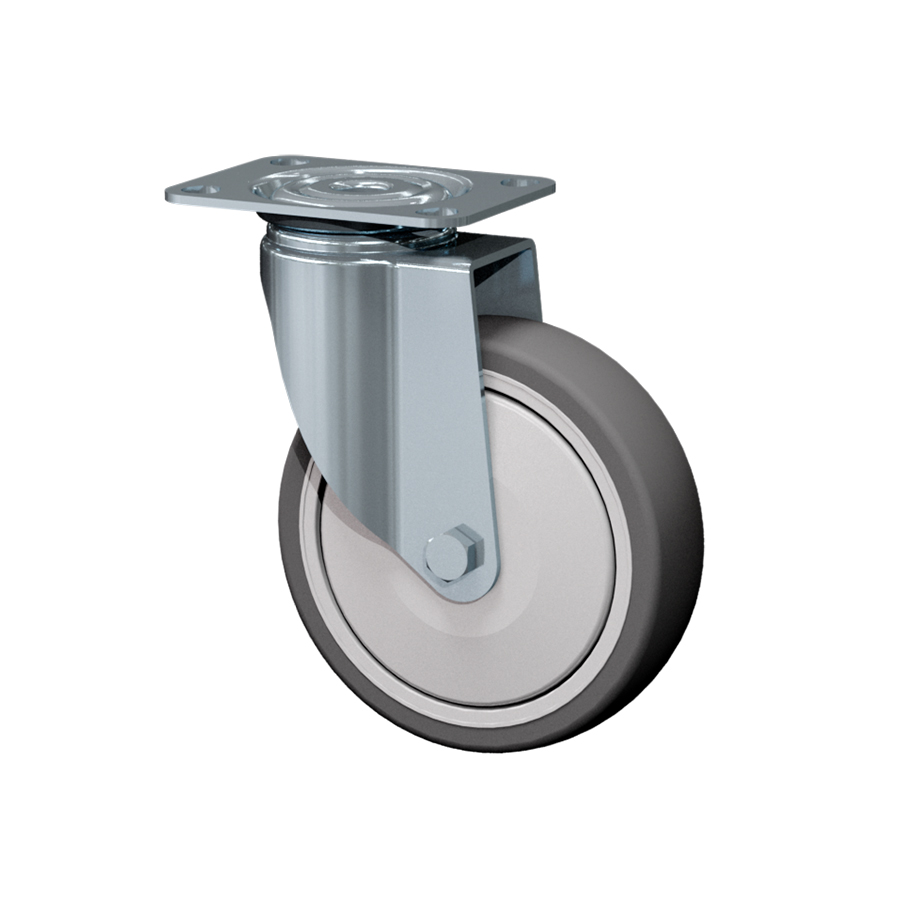

GSL-51C-P95 (Serie/s GS)
Swivel castor 100 mm - 150 mm, 100 kg - 120 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Hub length | 36 mm |
| Height | 160 mm |
| Offset | 41 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 75x50/72x52 mm |
| Brake swivel radius | 104 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
