TSH 150 NY2HF
Swivel castor with total brake mounted in front 150 mm - 200 mm, 800 kg - 1500 kg
Technical data
| Diameter | 150 mm |
| Tread width | 50 mm |
| Height | 202 mm |
| Offset | 62 mm |
| Top plate dimensions | 150x110 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 800 kg |
Technical description
- heavy steel welded construction
- zinc passivated
- swivel castor with special turntable
- grease filling and grease nipple in fork head
Areas of application
- assembly dolly
- containers
- heavy transport equipment
- lifting platforms
- lifting tables
- machine construction
- road constructions
TSH 150 PT2HF
On request
Swivel castor 150 mm - 200 mm, 730 kg - 1100 kg
Technical data
| Diameter | 150 mm |
| Tread width | 38 mm |
| Height | 202 mm |
| Offset | 62 mm |
| Top plate dimensions | 150x110 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 730 kg |
Technical description
- heavy steel welded construction
- zinc passivated
- swivel castor with special turntable
- grease filling and grease nipple in fork head
Areas of application
- assembly dolly
- containers
- heavy transport equipment
- lifting platforms
- lifting tables
- machine construction
- road constructions

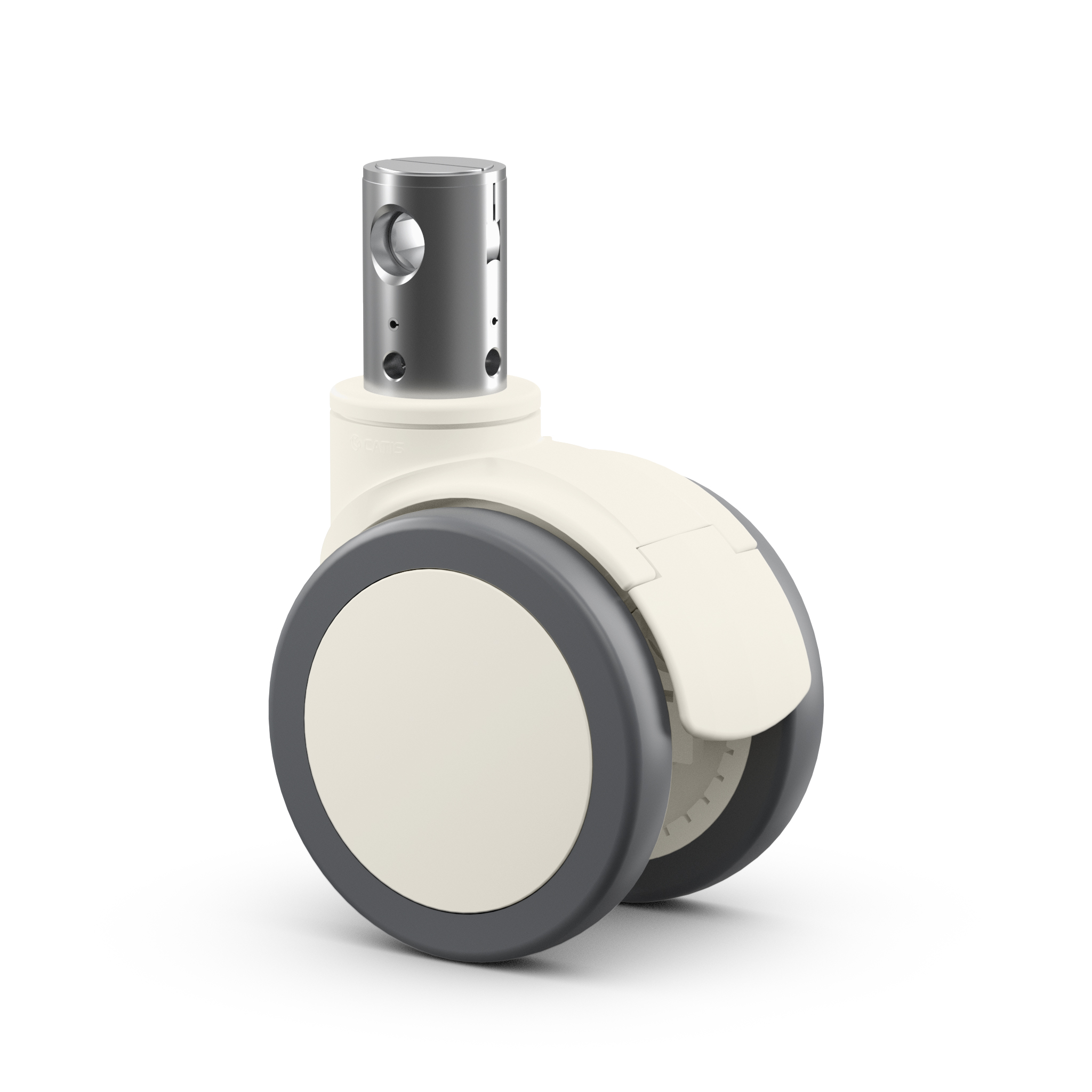

TT322 R6Ea/19U-G (TT Serie/s)
Swivel castor with central total brake 75 mm - 100 mm, 90 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Tread width | 73 mm |
| Wheel width | 2x12 mm |
| Height | 93 mm |
| Offset | 78 mm |
| Stem size | 32x50 mm |
| Load capacity | 90 kg |
Wheel
- Wheel centre nylon
- Polyurethane tread (85 Sh A)
- Precision ball bearing
- Available also in conductive version
Technical description
- High-strength glass fibre-reinforced PA6 housing
- Precision ball bearing in the swivel head
- Dust and splash-proof
- Integrated switching mechanism with central total lock
- Permanent grease filling in the switching mechanism
- Also available with other wheel variants and long stem 28x98 mm
Areas of application
- Intensive care beds
- Hospital beds
- Medical equipment
- Operating theatre beds
- Operating tables
- Nursing beds
BDPE 0501 1001
Swivel castor with total brake mounted behind 50 mm - 125 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 20 mm |
| Hub length | 24 mm |
| Height | 70 mm |
| Offset | 24 mm |
| Top plate dimensions | 60 x 60 mm |
| Top plate hole diameter | 6.2 mm |
| Dist. between holes | 48/38 x 48/38 mm |
| Brake swivel radius | 75 mm |
| Load capacity | 40 kg |
| Weight | 0.22 kg |
Wheel
- Polypropyleene wheel with a grey rubber tyre
- (Shore A 85) with zincplated threadguards
BDPE 0505 1001
Swivel castor with total brake mounted behind 50 mm - 125 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 20 mm |
| Hub length | 24 mm |
| Height | 68 mm |
| Offset | 24 mm |
| Top plate hole diameter | 10.5 mm |
| Brake swivel radius | 75 mm |
| Load capacity | 40 kg |
| Weight | 0.17 kg |
Wheel
- Polypropyleene wheel with a grey rubber tyre
- (Shore A 85) with zincplated threadguards
BDPU 0501 1000 TWIN
Swivel castor with total brake mounted behind 50 mm, 100 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 18 x 2 mm |
| Hub length | 40 mm |
| Height | 71 mm |
| Offset | 28 mm |
| Top plate dimensions | 60 x 60 mm |
| Top plate hole diameter | 6.3 mm |
| Dist. between holes | 48/38 x 48/38 mm |
| Brake swivel radius | 83 mm |
| Load capacity | 100 kg |
| Weight | 0.3 kg |
Wheel
- Double polypropylene wheel with grey polyurethane tyre
- (Shore D 70) and plain bearing
BDPU 0505 1000 TWIN
Swivel castor with total brake mounted behind 50 mm, 100 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 18 x 2 mm |
| Hub length | 40 mm |
| Height | 71 mm |
| Offset | 28 mm |
| Bolt hole diameter | 10.5 mm |
| Brake swivel radius | 83 mm |
| Load capacity | 100 kg |
| Weight | 0.26 kg |
Wheel
- Double polypropylene wheel with grey polyurethane tyre
- (Shore D 70) and plain bearing
BFCN 1503 6100
Swivel castor with total brake mounted in front 150 mm - 250 mm, 910 kg - 1240 kg
Technical data
| Diameter | 150 mm |
| Wheel width | 45 mm |
| Hub length | 62 mm |
| Height | 202 mm |
| Offset | 59 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 150 x 110 mm |
| Top plate hole diameter | 10.5 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 160 mm |
| Load capacity | 910 kg |
| Weight | 5.4 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
BFCV 1503 6100
Swivel castor with total brake mounted in front 150 mm - 250 mm, 730 kg - 1200 kg
Technical data
| Diameter | 150 mm |
| Wheel width | 38 mm |
| Hub length | 62 mm |
| Height | 202 mm |
| Offset | 59 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 150 x 110 mm |
| Top plate hole diameter | 10.5 mm |
| Dist. between holes | 105 x 75,80 mm |
| Load capacity | 730 kg |
| Weight | 5.6 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
BFPN 1503 6100
Swivel castor with total brake mounted in front 150 mm - 250 mm, 1500 kg
Technical data
| Diameter | 150 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 202 mm |
| Offset | 59 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 150 x 110 mm |
| Top plate hole diameter | 10.5 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 160 mm |
| Load capacity | 1500 kg |
| Weight | 3.2 kg |
Wheel
- Polyamide wheel with two deep groove ball bearings
