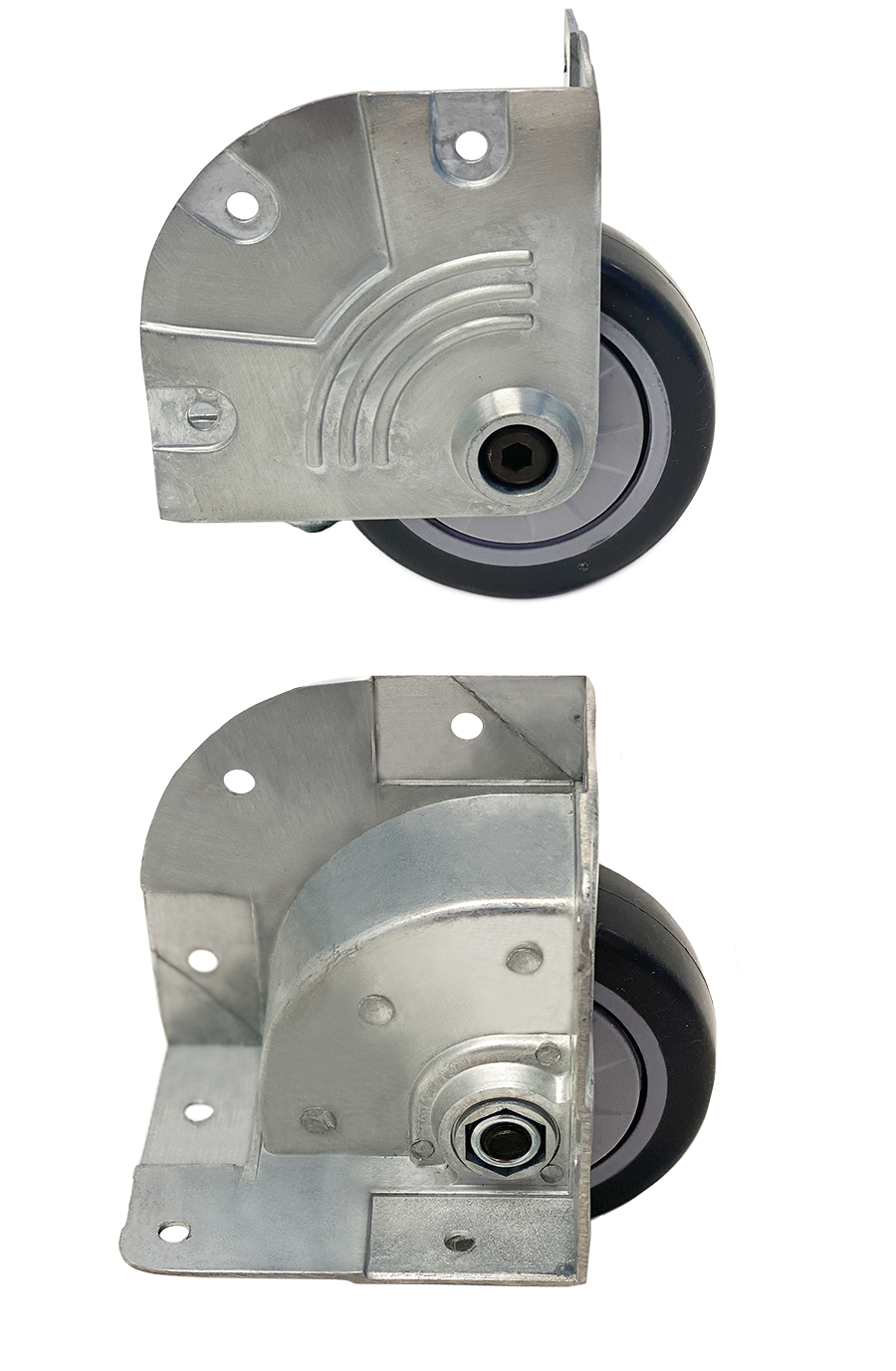

118a 820 799

Fixed castor 76 mm, 50 kg

Technical data

Diameter 76 mm
Tread width 25 mm
Height 104,4 mm
Top plate dimensions 81,4 x 65,3 mm
Top plate hole diameter 5,2 mm
Dist. between holes 34 x 50 + 40,71 x 40,71 mm
Load capacity 50 kg
Weight 430 g
Reach compliant Rohs compliant

Wheel

  • TPR wheel (Shore A 80)

Technical description

  • case corner castor with die cast aluminium body.
403a 29K100y K00-2

Swivel castor 100 mm, 250 kg

Technical data

Diameter 100 mm
Tread width 2x30 mm
Height 126 (132,5/144,5) mm
Offset 30 mm
Stem size 32 mm
Brake swivel radius 95 mm
Load capacity 250 kg

Wheel

  • TPU-wheels (Shore A 95)
  • electrically conductive

Technical description

  • Plunger lock castor series 403
  • Plastic twin wheel castor
  • Precision ball bearings in swivel section and wheel

Areas of application

  • Medical equipment, for example OP-tables
FLPL 3.00-4

Fixed castor 260 mm, 170 kg

Technical data

Diameter 260 mm
Wheel width 85 mm
Hub length 75 mm
Height 307 mm
Top plate dimensions 175 x 175 mm
Top plate hole diameter 14.5 mm
Dist. between holes 140 x 140 mm
Load capacity 170 kg
Weight 3.75 kg
Reach compliant Rohs compliant

Wheel

  • Pneumatic wheel with a red plastic core
  • black tyre
JA8SUB

JA8SUB

Technical data

Diameter 200 mm
Wheel width 51 mm
Height 266/342 mm
Offset 57 mm
Top plate dimensions 152x106 mm
Top plate hole diameter 12 mm
Dist. between holes 114,3x63,5 mm
Load capacity 1045 kg
JKCN 0501 1100 (2SL 050 STOL)

Swivel castor 50 mm, 270 kg

Technical data

Diameter 50 mm
Wheel width 2 x 14 mm
Height 64 mm
Offset 25 mm
Top plate dimensions 95 mm
Top plate hole diameter 6.8 mm
Dist. between holes 36 x 36 mm
Load capacity 270 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with plain bearing

Technical description

  • Heavy duty swivel fork of welded and forged
  • zinc-coated steel swivel bearing with single
  • ball race way
JKCV 0501 1100 (2SL 050 PTOL)

Swivel castor 50 mm, 160 kg

Technical data

Diameter 50 mm
Wheel width 2 x 14 mm
Height 64 mm
Offset 25 mm
Top plate dimensions 95 mm
Top plate hole diameter 6.8 mm
Dist. between holes 36 x 36 mm
Load capacity 160 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with bonded-on Vulkollan tyre
  • (Shore A 92) with a plain bearing

Technical description

  • Heavy duty swivel fork of welded and forged
  • zinc-coated steel swivel bearing with single
  • ball race way
JKPN 0501 1100(2SL 050 NYOL)

Swivel castor 50 mm, 160 kg

Technical data

Diameter 50 mm
Wheel width 2 x 14 mm
Height 64 mm
Offset 25 mm
Top plate dimensions 95 mm
Top plate hole diameter 6.8 mm
Dist. between holes 36 x 36 mm
Load capacity 160 kg
Weight 0.5 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with plain bearing

Technical description

  • Heavy duty swivel fork of welded and forged
  • zinc-coated steel swivel bearing with single
  • ball race way
JLPL 3.00-4

Swivel castor 260 mm, 170 kg

Technical data

Diameter 260 mm
Wheel width 85 mm
Hub length 75 mm
Height 307 mm
Offset 85 mm
Top plate dimensions 200 x 160 mm
Top plate hole diameter 14 mm
Dist. between holes 150 x 115 mm
Load capacity 170 kg
Weight 4.3 kg
Reach compliant Rohs compliant

Wheel

  • Pneumatic wheel with a red plastic core
  • black tyre

Technical description

  • Swivel fork of deep drawn zinc-coated steel
  • Swivel bearing with double ball race way
  • and sealring, operating temperatures -40° to +250°C

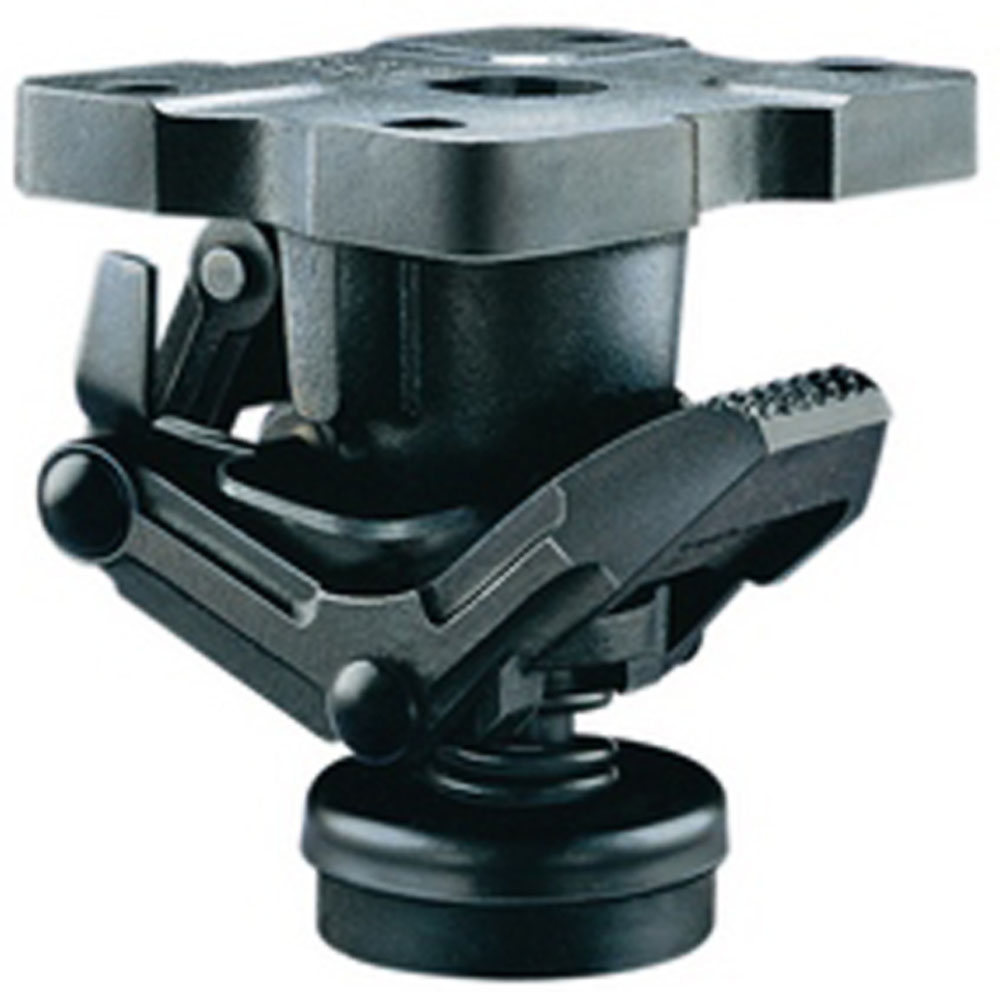

TLCH

Technical data

Height 163.5  mm
Top plate dimensions 152 x 114 mm
Top plate hole diameter 12 mm
Dist. between holes 127 x 63.5 mm
Weight 5.2 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron top fitting floor lock brake, designed to
  • bolt at the underside of a trolley at 200 mm above
  • the ground surface

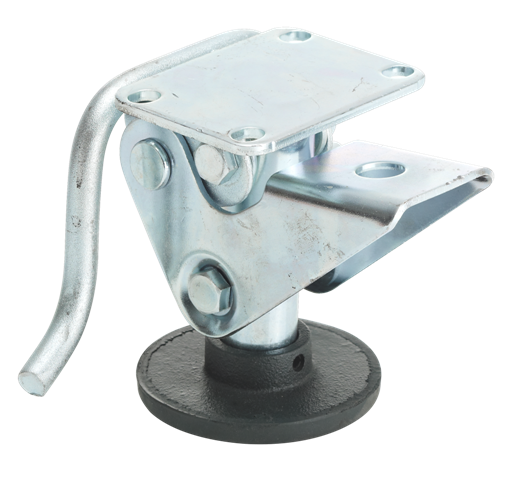

TLUS 1

TLUS 1

Technical data

Height h 99 H 125 mm
Top plate dimensions 64 x 92 mm
Top plate hole diameter 8 mm
Dist. between holes 45 x 71,78 mm
Weight 1.23 kg
Reach compliant Rohs compliant

Technical description

  • Zinc-coated top fitting floor lock,
  • designed to bolt on the underside of
  • a trolley at an overall height = H + 2
  • to 6 mm above the ground surface
