Heavy Duty Castors
In relation to mass and weight, modern heavy industry often thinks in dimensions that are a feat of strength for people and machines. For example, take a passenger bridge for the harbour, construction machines for road building, etc. All these heavy weights need to be moved. You’ll be doing well if you deal with these tasks on super-stable heavy load castors from RHOMBUS. Because in materials quality and processing, they are the absolute master in their class. This you can depend upon.
2FH 200 NY2H
Fixed castor 150 mm - 200 mm, 1360 kg - 1500 kg
Technical data
| Diameter | 200 mm |
| Tread width | 2x50 mm |
| Height | 252 mm |
| Top plate dimensions | 150x175 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 1500 kg |
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- assembly dolly
- containers
- heavy transport equipment
- lifting carts
- lifting platforms
- lifting tables
- machine construction
- road constructions
2FH 200 PT2H
On request
Fixed castor 150 mm - 200 mm, 1240 kg - 1500 kg
Technical data
| Diameter | 200 mm |
| Tread width | 2X45 mm |
| Height | 252 mm |
| Top plate dimensions | 150x175 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 1500 kg |
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- assembly dolly
- containers
- heavy transport equipment
- lifting carts
- lifting platforms
- lifting tables
- machine construction
- road constructions

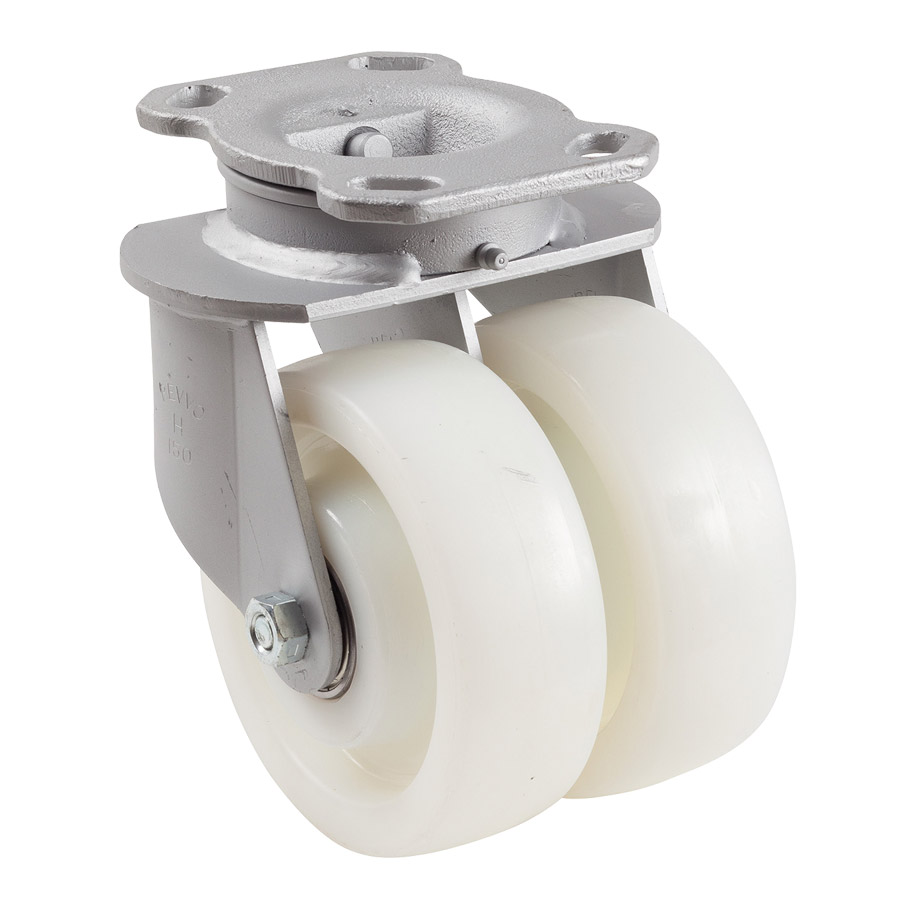

2SH 200 NY2H
Swivel castor 150 mm - 200 mm, 1360 kg - 1500 kg
Technical data
| Diameter | 200 mm |
| Tread width | 2x50 mm |
| Height | 252 mm |
| Offset | 70 mm |
| Top plate dimensions | 150x110 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 1500 kg |
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- article 2SH…W including wheel brake
- also available with directional lock 2SH...D
Areas of application
- assembly dolly
- containers
- lifting carts
- lifting tables
- lifting platforms
- machine construction
- road constructions
- heavy transport equipment
2SH 200 PT2H
On request
Swivel castor 125 mm - 200 mm, 720 kg - 1500 kg
Technical data
| Diameter | 200 mm |
| Tread width | 2x45 mm |
| Height | 252 mm |
| Offset | 70 mm |
| Top plate dimensions | 150x110 mm |
| Top plate hole diameter | 12/10 mm |
| Dist. between holes | 120/105x60/75 mm |
| Load capacity | 1500 kg |
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- article 2SH…W including wheel brake
- also available with directional lock 2SH...D
Areas of application
- assembly dolly
- containers
- lifting carts
- lifting tables
- lifting platforms
- machine construction
- road constructions
- heavy transport equipment
504a 0SK085p ZPS
On request
Fixed castor 85 mm, 1200 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Height | 125 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 16,5 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 1200 kg |
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- containers
- fork lift trucks
- lifting carts
- lifting tables
- lifting platforms
- machine constructions
- heavy transport equipment
504a 18K085v ZPS
On request
Fixed castor 85 mm, 700 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Height | 125 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 16,5 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- containers
- fork lift trucks
- lifting carts
- lifting tables
- lifting platforms
- machine constructions
- heavy transport equipment
505a 0SK085p ZPS
On request
Swivel castor 85 mm, 1200 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Height | 125 mm |
| Offset | 57 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 16,5 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 1200 kg |
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- fork lift trucks
- lifting carts
- lifting tables
- lifting platforms
- machine constructions
- heavy transport equipment
505a 18K085v ZPS
On request
Swivel castor 85 mm, 700 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Height | 125 mm |
| Offset | 57 mm |
| Top plate dimensions | 190x170 mm |
| Top plate hole diameter | 16,5 mm |
| Dist. between holes | 150x135 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- fork lift trucks
- lifting carts
- lifting tables
- lifting platforms
- machine constructions
- heavy transport equipment

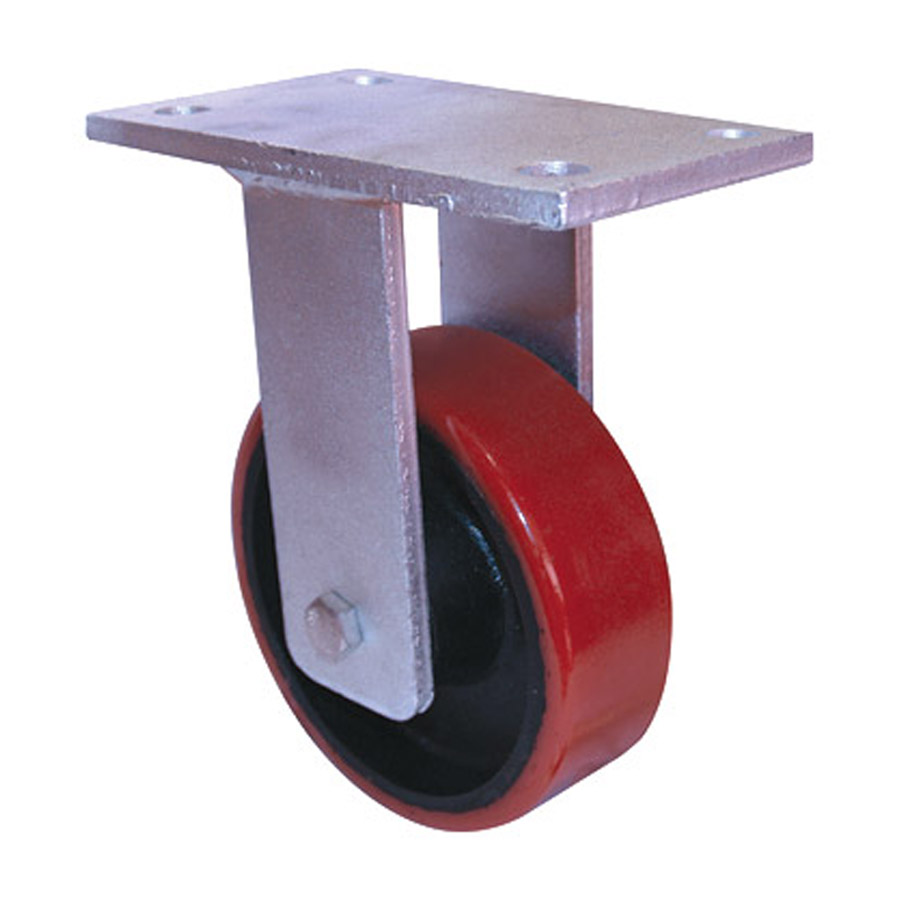

509a 18K150v ZPS
On request
Fixed castor 125 mm - 250 mm, 350 kg - 1000 kg
Technical data
| Diameter | 150 mm |
| Tread width | 50 mm |
| Height | 220 mm |
| Top plate dimensions | 190x110 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x75 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction
- zinc passivated
Areas of application
- containers
- fork lift trucks
- fork lifts
- heavy transport equipment
- lift tables
- lifting tables
- machine constructions
- road constructions
- transport containers
- transport trolleys
- winter service
510a 18K150v ZPS
On request
Swivel castor 125 mm - 250 mm, 350 kg - 1000 kg
Technical data
| Diameter | 150 mm |
| Tread width | 50 mm |
| Height | 220 mm |
| Offset | 58 mm |
| Top plate dimensions | 190x110 mm |
| Top plate hole diameter | 17 mm |
| Dist. between holes | 150x75 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
Technical description
- heavy steel welded construction with special turntable
- zinc passivated
- pressed ball track above, with tapered roller bearing below
- grease filling and grease nipple in fork head
Areas of application
- containers
- fork lifts
- heavy transport equipment
- lifting carts
- lifting tables
- machine constructions
- road constructions
- transport containers
- transport trolleys
- winter service
