FZCU 3006 6TR0

Fixed castor 300 mm, 2270 kg

Technical data

Diameter 300 mm
Wheel width 76 mm
Hub length 92 mm
Height 422 mm
Offset 72 mm
Wheel axle diameter 31.8 mm
Top plate dimensions 178 x 153 mm
Top plate hole diameter 16.5 mm
Dist. between holes 127 x 102 mm
Load capacity 2270 kg
Weight 25.7 kg
Reach compliant Rohs compliant

Wheel

  • Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings

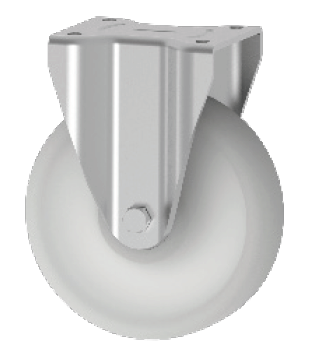

Fixed castor 65 mm - 200 mm, 300 kg - 1000 kg

Technical data

Diameter 65 mm
Wheel width 37 mm
Hub length 45 mm
Height 97 mm
Offset 45 mm
Wheel axle diameter 15 mm
Top plate dimensions 105x86 mm
Top plate hole diameter 9 mm
Dist. between holes 80/77x60 mm
Load capacity 300 kg
Reach compliant Rohs compliant

Wheel

  • Heavy-duty polyamide wheels with 2 sealed ball bearings. Operating temperatures from -40°C to + 80°C

Technical description

  • Heavy duty swivel fork of deep drawn zinc-coated steel Swivel head with sealed precision ball bearings and a sealring

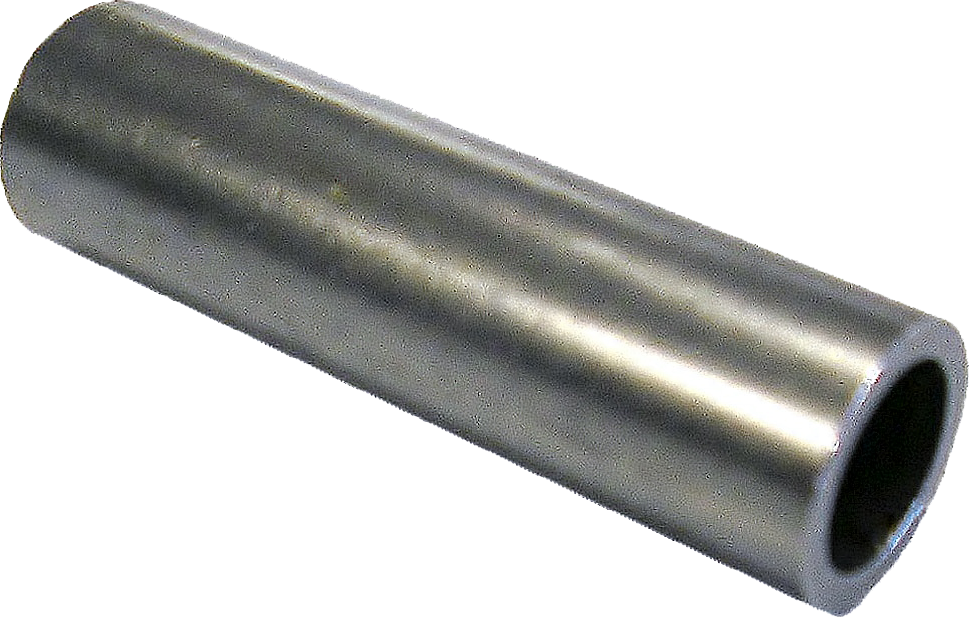

HAX 100846 RVS

Technical data

Diameter 10 mm
Wheel axle diameter 8 mm
Weight 0.1 kg
Reach compliant Rohs compliant

Technical description

  • Hollow shaft out of stainless steel
HAX 120842 D

HAX 120842 D

Technical data

Diameter 12 mm
Wheel axle diameter 8 mm
Weight 0.1 kg
Reach compliant Rohs compliant

Technical description

  • Hollow shaft out of steel

HAX 120845

Technical data

Diameter 12 mm
Wheel axle diameter 8 mm
Weight 0.1 kg
Reach compliant Rohs compliant

Technical description

  • Hollow shaft out of stainless steel
HAX 151052 P

HAX 151052 P

Technical data

Diameter 15 mm
Wheel axle diameter 10 mm
Weight 0.3 kg
Reach compliant Rohs compliant

Technical description

  • Hollow shaft out of stainless steel
ISO-210SUTM

Swivel castor 250 mm - 300 mm, 10000 kg - 12000 kg

Technical data

Diameter 250 mm
Wheel width 75 mm
Hub length 92 mm
Height 400 mm
Load capacity 10000 kg
Reach compliant Rohs compliant

Wheel

  • Heavy duty polyurethane wheel with a cast iron centre and two taper roller bearings

Technical description

  • Container Towcastor Kit: consists of two welded steel heavy duty swivel and fixed castors, the swivel forks are equipped with two tapered roller bearings and a grease nipple. Four locking screws, a lifting handle and a ratchet spanner are also included.
JA8SUB

JA8SUB

Technical data

Diameter 200 mm
Wheel width 51 mm
Height 266/342 mm
Offset 57 mm
Top plate dimensions 152x106 mm
Top plate hole diameter 12 mm
Dist. between holes 114,3x63,5 mm
Load capacity 1045 kg

Swivel castor 125 mm - 250 mm, 220 kg - 550 kg

Technical data

Diameter 125 mm
Wheel width 50 mm
Hub length 62 mm
Height 160 mm
Offset 50 mm
Top plate dimensions 135 x 112 mm
Top plate hole diameter 11 mm
Dist. between holes 105 x 75,80 mm
Brake swivel radius 145 mm
Load capacity 220 kg
Weight 3.8 kg
Reach compliant Rohs compliant

Wheel

  • Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C

Technical description

  • Swivel fork of deep drawn zinc-coated steel
  • with wheel brake. Swivelhead with sealed precision
  • ball bearings and a grease nippel

Swivel castor 125 mm - 250 mm, 220 kg - 550 kg

Technical data

Diameter 125 mm
Wheel width 50 mm
Hub length 62 mm
Height 160 mm
Offset 50 mm
Top plate dimensions 135 x 112 mm
Top plate hole diameter 11 mm
Dist. between holes 105 x 75,80 mm
Brake swivel radius 145 mm
Load capacity 220 kg
Weight 3.8 kg
Reach compliant Rohs compliant

Wheel

  • Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C

Technical description

  • Swivel fork of deep drawn zinc-coated steel
  • with wheel brake. Swivelhead with sealed precision
  • ball bearings and a grease nippel
