JBAU 1253 6440
Swivel castor 125 mm - 160 mm, 450 kg - 600 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 450 kg |
| Weight | 3.4 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision
- ball bearings and a grease nippel
JBAU 1253 6440/B
Swivel castor with wheel locking brake 125 mm - 160 mm, 450 kg - 600 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 450 kg |
| Weight | 3.7 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel
JBAU 2003 6440
Swivel castor 100 mm - 250 mm, 200 kg - 1000 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 235 mm |
| Offset | 60 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 800 kg |
| Weight | 4 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision
- ball bearings and a grease nippel

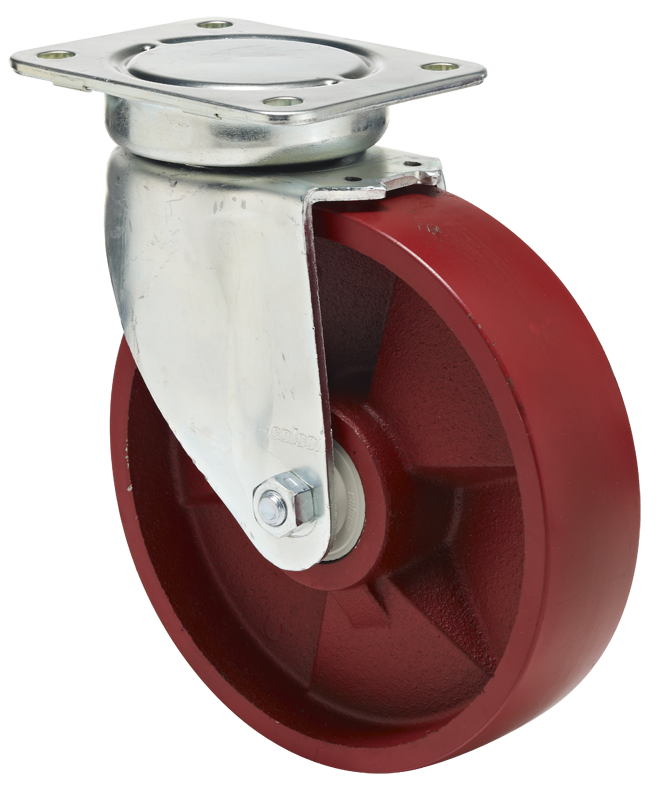

JBCN 1253 6441
Swivel castor 80 mm - 250 mm, 250 kg - 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 1000 kg |
| Weight | 5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel

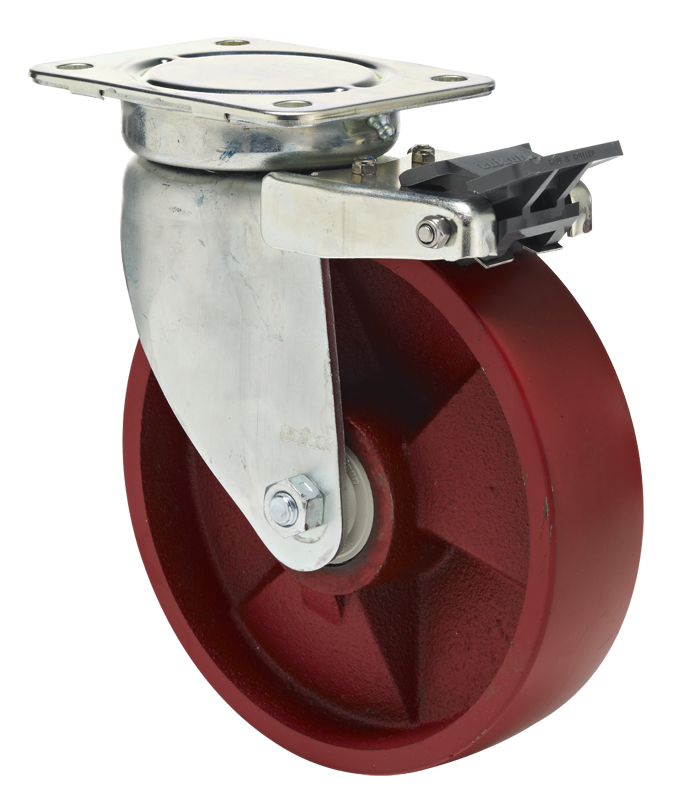

JBCN 1253 6441/B
Swivel castor with wheel locking brake 80 mm - 250 mm, 250 kg - 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 1000 kg |
| Weight | 5.3 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel
JBCP 2303 6443
Swivel castor 160 mm - 250 mm, 285 kg - 445 kg
Technical data
| Diameter | 230 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 280 mm |
| Offset | 60 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 410 kg |
| Weight | 6.5 kg |
Wheel
- Cast iron wheel with pressed-on full-elastic rubber tyre
- (Shore A 68) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel
JBCP 2503 6443/B
Swivel castor with wheel locking brake 160 mm - 250 mm, 285 kg - 445 kg
Technical data
| Diameter | 250 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 60 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 445 kg |
| Weight | 7.5 kg |
Wheel
- Cast iron wheel with pressed-on full-elastic rubber tyre
- (Shore A 68) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel
JBCV 1253 6443
Swivel castor 80 mm - 250 mm, 210 kg - 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 500 kg |
| Weight | 4.2 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel
JBCV 1253 6443/B
Swivel castor with wheel locking brake 80 mm - 250 mm, 210 kg - 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 500 kg |
| Weight | 4.5 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel
JBPH 1253 6443
Swivel castor 125 mm - 250 mm, 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 1000 kg |
| Weight | 3.11 kg |
Wheel
- Polyamide wheel with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision
- ball bearings and a grease nippel
