I33AZ-HY0T100-GHT (Elite High Temperature)
Fixed castor 100 mm, 210 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Height | 128 mm |
| Top plate dimensions | 104x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 210 kg |
Wheel
- black HT wheel with a hardness of 85 ± 5 Shore D
- operating temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
- double ball bearing
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-HY8G100-GHT (Elite High Temperature)
Fixed castor 100 mm, 190 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Height | 128 mm |
| Top plate dimensions | 104x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 190 kg |
Wheel
- black HT wheel with a hardness of 85 ± 5 Shore D
- operating
- temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
- plain bearing.
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-NL9K100 (Elite)
Fixed castor 100 mm - 200 mm, 250 kg - 500 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Height | 128 mm |
| Top plate dimensions | 105x86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 250 kg |
Wheel
- injection-molded PA6 nylon in white color
- with a hardness of 75 ± 5
- Shore D
- Ø80-125 mm single ball bearing
- Ø160-200 mm double ball bearing
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-PN5K100-C01 (Elite)
Fixed castor 100 mm - 125 mm, 150 kg - 180 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 129 mm |
| Top plate dimensions | 105x89 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 150 kg |
Wheel
- dark grey polypropylene hub
- PERFORMA® tread made of
- thermoplastic elastomer in blue color with a hardness of 65 ± 5 Shore A
- single
- ball bearing
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-PN5K100-C02 (Elite)
Fixed castor 100 mm, 150 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 129 mm |
| Top plate dimensions | 105x89 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 150 kg |
Wheel
- black polypropylene hub
- PERFORMA® tread made of thermoplastic
- elastomer in black color with a hardness of 65 ± 5 Shore A
- single ball bearing
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-UL8K100 (Elite)
Fixed castor 100 mm - 200 mm, 250 kg - 500 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Height | 128 mm |
| Top plate dimensions | 105x86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 250 kg |
Wheel
- white nylon hub
- polyurethane TPU wheel tread in red color with a
- hardness of 95 ± 5 Shore A
- Ø80-125 mm single ball bearing
- Ø160-200 mm
- double ball bearing
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
I33AZ-XM0T100-C04 (Elite)
Fixed castor 100 mm - 125 mm, 250 kg - 300 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Height | 128 mm |
| Top plate dimensions | 105x86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 250 kg |
Wheel
- die-cast aluminium hub
- wheel tread made of cast polyurethane in
- honey-brown color
- with a hardness of 95 +/- 5 Shore A
- double ball bearing
- *On request: antistatic version or soft tread 75 +/- 5 Shore A available.
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating

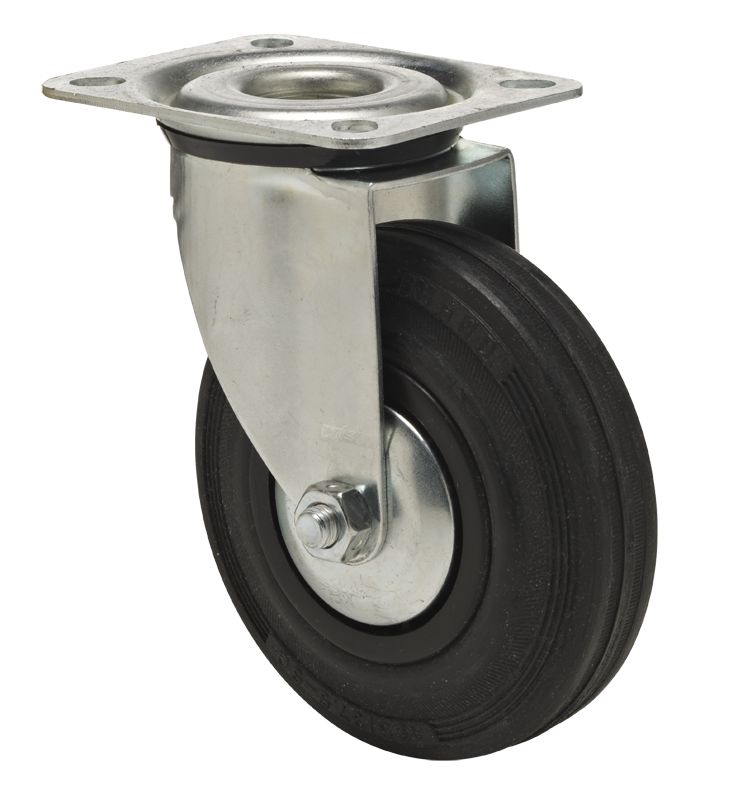

I61AZ-BM7T100 (Veloris)
Swivel castor 100 mm - 125 mm, 150 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Height | 128 mm |
| Offset | 34 mm |
| Bolt hole diameter | 12,5 mm |
| Load capacity | 150 kg |
Wheel
- die-cast aluminium hub
- wheel tread made of natural rubber in black
- color
- with a hardness of 67 +/- 5 Shore A
- double ball bearing
- *On request: antistatic version or grey tread available.
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
I61AZ-NL3K080 (Veloris)
Swivel castor 80 mm - 125 mm, 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Height | 105 mm |
| Offset | 34 mm |
| Bolt hole diameter | 12,5 mm |
| Load capacity | 150 kg |
Wheel
- injection-molded PA6 nylon in white color
- with a hardness of 75 ± 5
- Shore D
- Ø80-125 mm single ball bearing
- Ø160-200 mm double ball bearing
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
I61AZ-PL1K080 (Veloris)
Swivel castor 80 mm - 200 mm, 120 kg - 280 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Height | 105 mm |
| Offset | 34 mm |
| Bolt hole diameter | 12,5 mm |
| Load capacity | 120 kg |
Wheel
- dark grey polypropylene hub
- PERFORMA® tread made of
- thermoplastic elastomer in grey color with a hardness of 65 ± 5 Shore A
- Ø80-125
- mm single ball bearing
- Ø160-200 mm double ball bearing
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
