JXPU 1251 7100
Swivel castor 80 mm - 125 mm, 175 kg - 200 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 156 mm |
| Offset | 41 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 138 mm |
| Load capacity | 200 kg |
| Weight | 0.66 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove stainless steel ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race

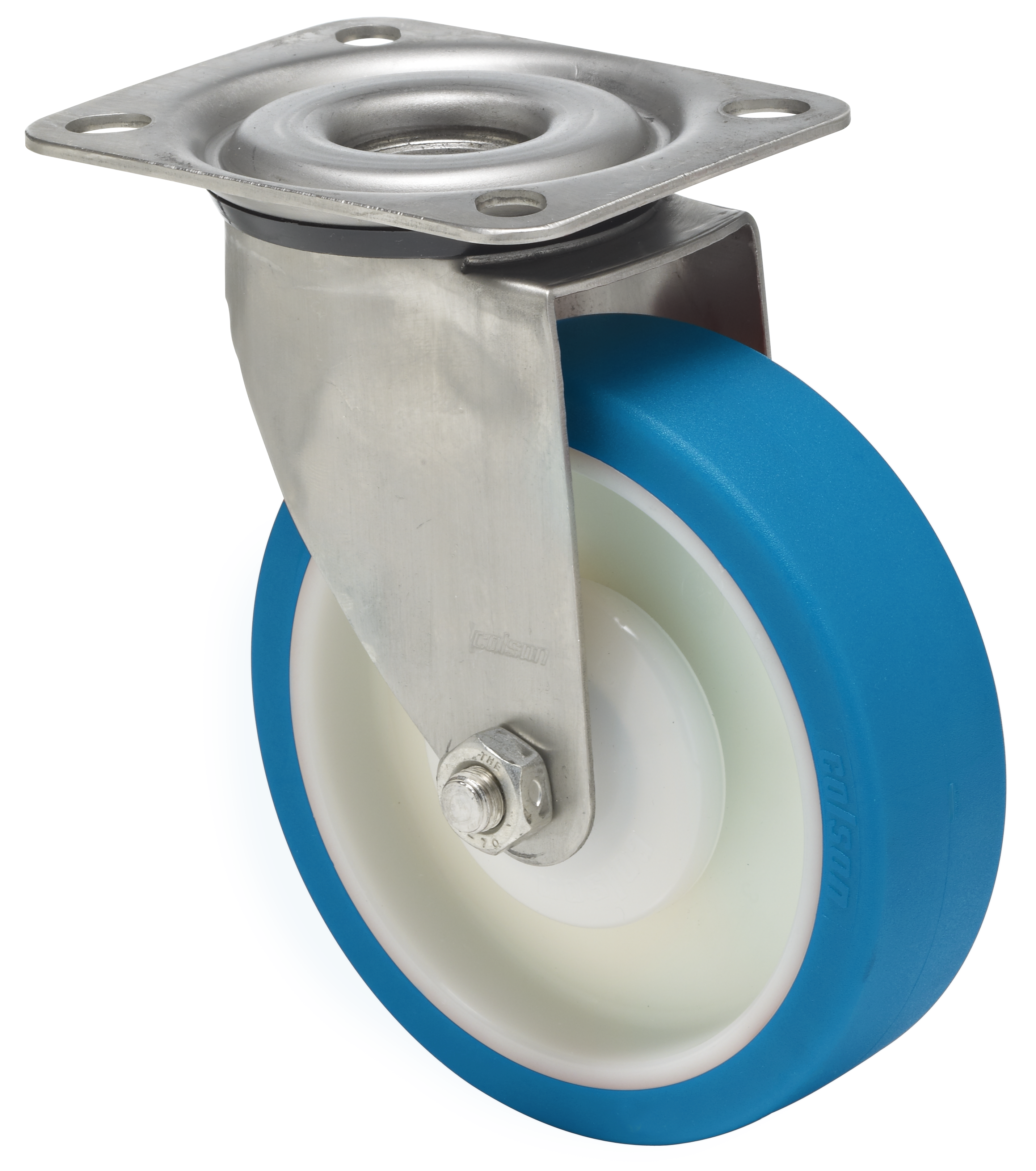

JXPU 1251 7100 BLUE
Swivel castor 80 mm - 125 mm, 175 kg - 200 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 156 mm |
| Offset | 41 mm |
| Wheel axle diameter | 10 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 138 mm |
| Load capacity | 200 kg |
| Weight | 0.66 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (80° Shore A) with one deep groove stainless steel ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
