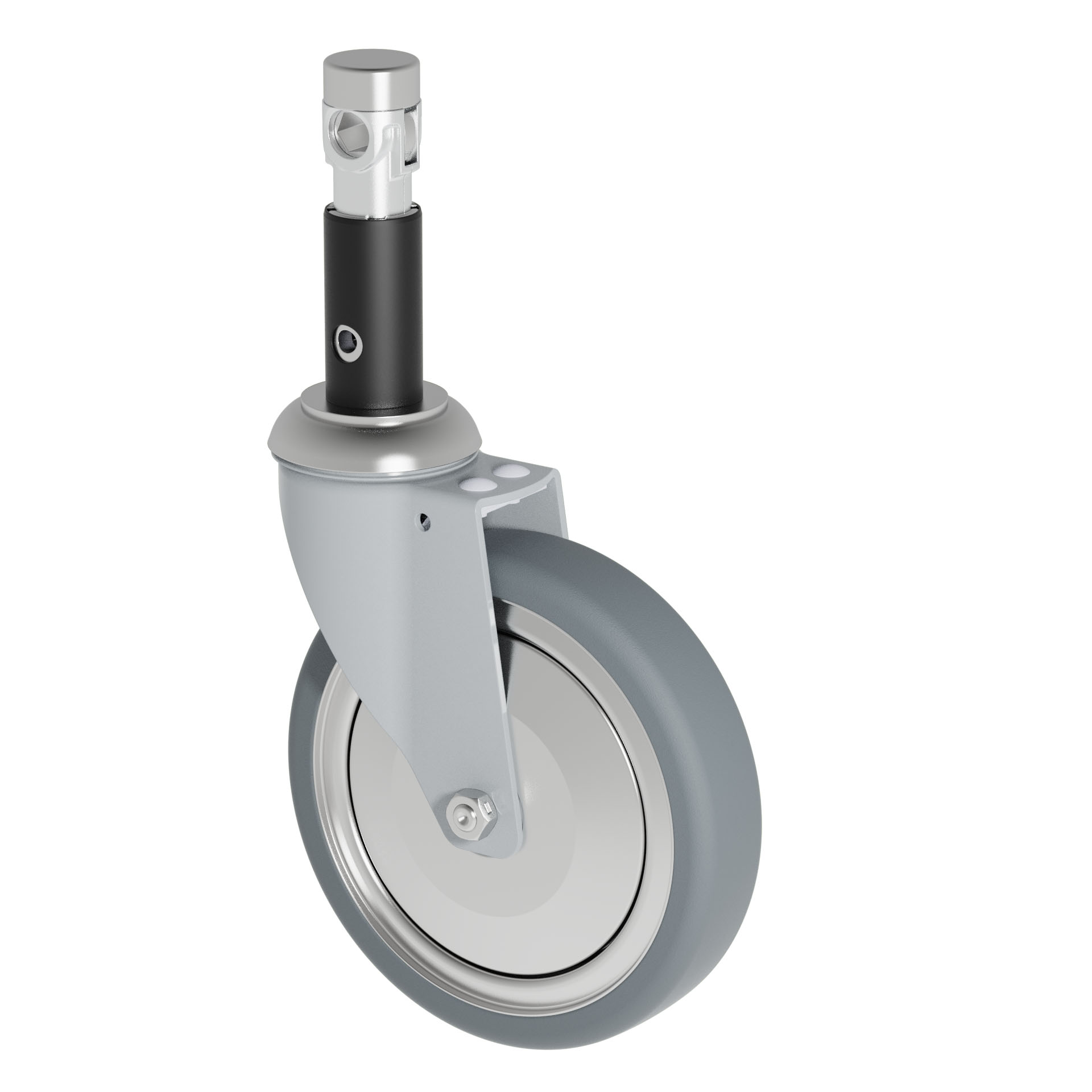

Swivel castor with central total brake, 80 mm - 200 mm, 80 kg - 120 kg

Part number: 390q 32C150b Z2351

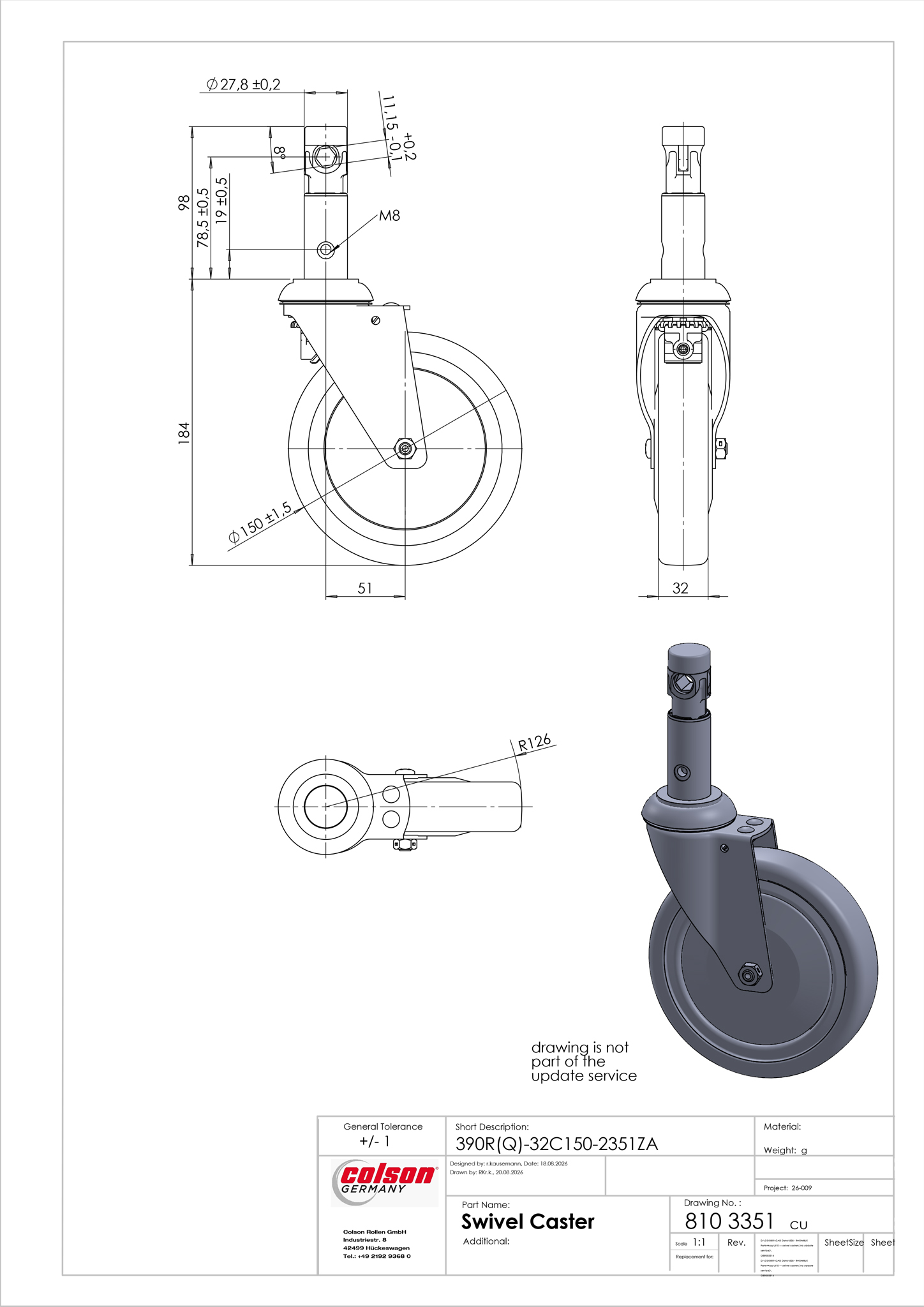

Technical data

Diameter 150 mm
Tread width 32 mm
Height 184 mm
Offset 51 mm
Load capacity 110 kg

Accessories & options

Technical description

  • sheet steel metal housing
  • zinc passivated
  • double ball bearing in swivel head
  • protected from dust and water ingress by plastic sealing ring
  • integrated selection mechanism with total locking brake "q"
  • and directional locking brake "r"
  • selection mechanism continually greased
  • device to permit adjustment of the braking effect
  • (without removing the castor or wheel)
  • also available with other wheel variants



Wheel

  • solid rubber tyre blue-grey (Shore A 80)
  • sheet steel metal rim zinc passivated
  • metal thread quard
  • flange bearing

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical & diagnostic equipment
  • medical-technical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity
390q 32C080b Z2351 80 mm 30 mm 113 mm 44 mm 80 kg
390r 32C080b Z2351 80 mm 30 mm 113 mm 44 mm 80 kg
390q 32C100b Z2351 100 mm 32 mm 133 mm 42 mm 80 kg
390r 32C100b Z2351 100 mm 32 mm 133 mm 42 mm 80 kg
390q 32C125b Z2351 125 mm 32 mm 158 mm 44 mm 100 kg
390r 32C125b Z2351 125 mm 32 mm 158 mm 44 mm 100 kg
390q 32C150b Z2351 150 mm 32 mm 184 mm 51 mm 110 kg
390r 32C150b Z2351 150 mm 32 mm 184 mm 51 mm 110 kg
390q 32C200b Z2351 200 mm 32 mm 237 mm 61 mm 120 kg
390r 32C200b Z2351 200 mm 32 mm 237 mm 61 mm 120 kg
Reach compliant
Map
Rohs compliant
