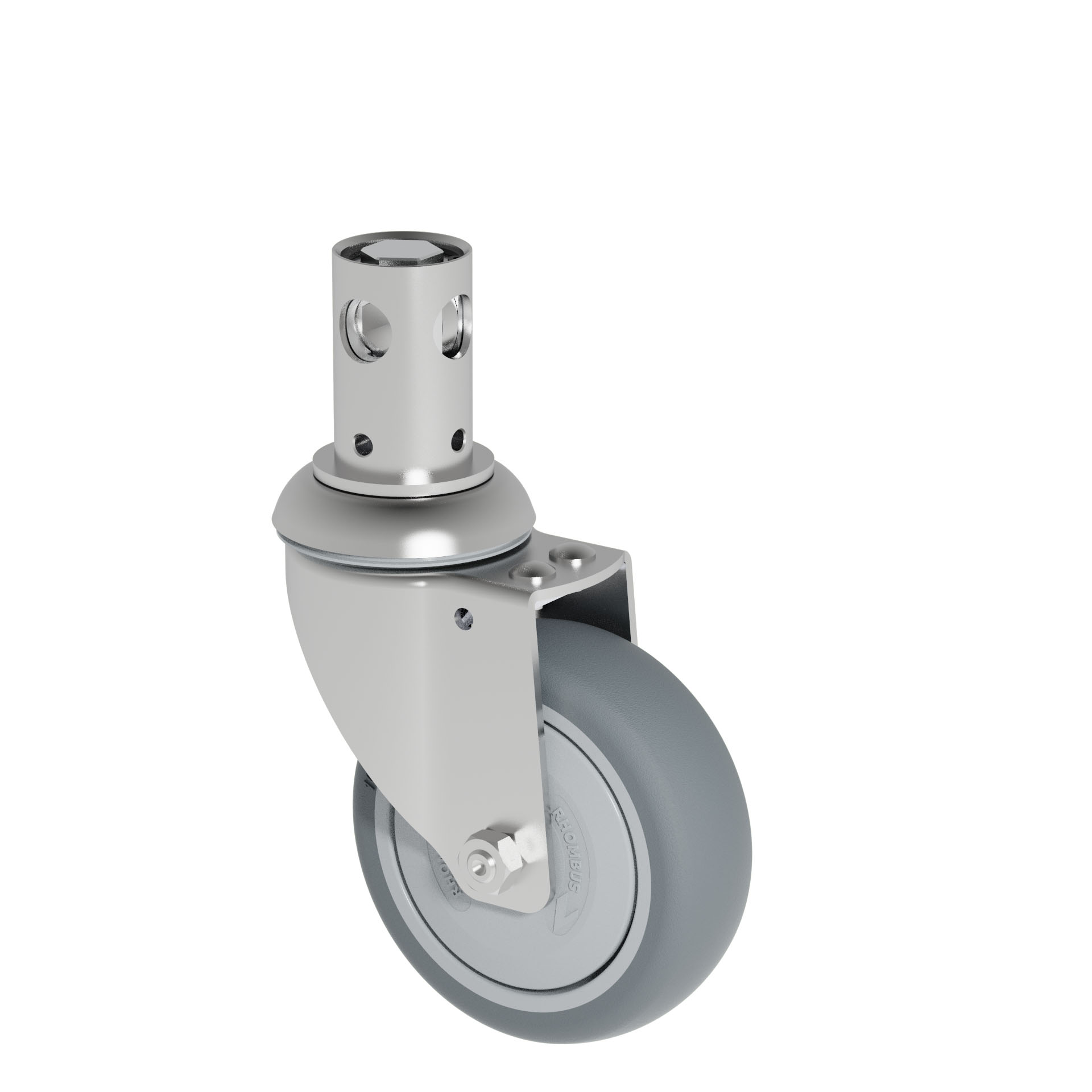

Swivel castor with central total brake, 80 mm - 200 mm, 80 kg - 120 kg
Part number: 390q 29K100r Z985
On request
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 133 mm |
| Offset | 42 mm |
| Load capacity | 100 kg |
| Weight | 936 g |
Technical description
- sheet steel metal housing
- zinc passivated
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- device to permit adjustment of the braking effect
- (without removing the castor or wheel)
- also available with other wheel variants
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical & diagnostic equipment
- medical-technical equipment
- op beds
- op tables
Variants
| Diameter | Tread width | Height | Offset | Load capacity | Weight | |
|---|---|---|---|---|---|---|
| 390q 29K080r Z985 | 80 mm | 30 mm | 113 mm | 44 mm | 80 kg | 0 g |
| 390r 29K080r Z985 | 80 mm | 30 mm | 113 mm | 44 mm | 80 kg | 0 g |
| 390q 29K100r Z985 | 100 mm | 30 mm | 133 mm | 42 mm | 100 kg | 936 g |
| 390r 29K100r Z985 | 100 mm | 30 mm | 133 mm | 42 mm | 100 kg | 971 g |
| 390q 29K125r Z985 | 125 mm | 32 mm | 158 mm | 44 mm | 100 kg | 0 g |
| 390r 29K125r Z985 | 125 mm | 32 mm | 158 mm | 44 mm | 100 kg | 0 g |
| 390q 29K150r Z985 | 150 mm | 32 mm | 184 mm | 51 mm | 120 kg | 0 g |
| 390r 29K150r Z985 | 150 mm | 32 mm | 184 mm | 51 mm | 120 kg | 0 g |
| 390q 29K200r Z985 | 200 mm | 32 mm | 237 mm | 61 mm | 120 kg | 0 g |
| 390r 29K200r Z985 | 200 mm | 32 mm | 237 mm | 61 mm | 120 kg | 0 g |
