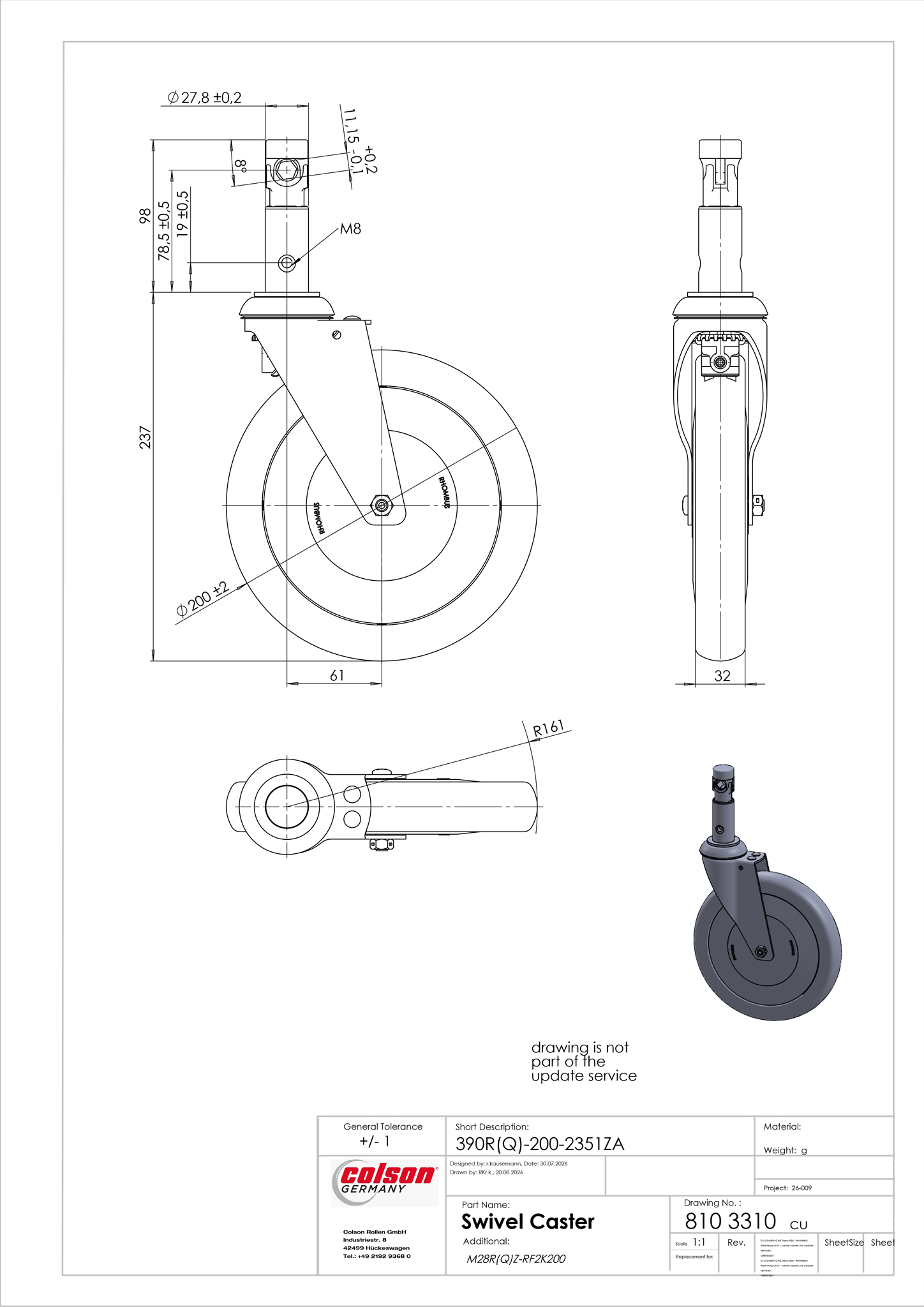

Swivel castor with central/directional total brake, 80 mm - 200 mm, 80 kg - 120 kg

Part number: 390r 29K200r Z2351

Technical data

Diameter 200 mm
Tread width 32 mm
Height 237 mm
Offset 61 mm
Load capacity 120 kg
Weight 1660 g

Accessories & options

Technical description

  • sheet steel metal housing
  • zinc passivated
  • double ball bearing in swivel head
  • protected from dust and water ingress by plastic sealing ring
  • integrated selection mechanism with total locking brake "q"
  • and directional locking brake "r"
  • selection mechanism continually greased
  • device to permit adjustment of the braking effect
  • (without removing the castor or wheel)
  • also available with other wheel variants



Wheel

  • thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
  • plastic wheel centre and thread guard silver grey RAL7001
  • precision ball bearing
  • Contact discoloration on unsealed grounds possible!>>

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical & diagnostic equipment
  • medical-technical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity Weight
390q 29K080r Z2351 80 mm 30 mm 113 mm 44 mm 80 kg 0 g
390r 29K080r Z2351 80 mm 30 mm 113 mm 44 mm 80 kg 0 g
390q 29K100r Z2351 100 mm 30 mm 133 mm 42 mm 100 kg 0 g
390r 29K100r Z2351 100 mm 30 mm 133 mm 42 mm 100 kg 0 g
390q 29K125r Z2351 125 mm 32 mm 158 mm 44 mm 100 kg 1100 g
390r 29K125r Z2351 125 mm 32 mm 158 mm 44 mm 100 kg 1110 g
390q 29K150r Z2351 150 mm 32 mm 184 mm 51 mm 120 kg 0 g
390r 29K150r Z2351 150 mm 32 mm 184 mm 51 mm 120 kg 0 g
390q 29K200r Z2351 200 mm 32 mm 237 mm 61 mm 120 kg 1600 g
390r 29K200r Z2351 200 mm 32 mm 237 mm 61 mm 120 kg 1660 g
Reach compliant
Map
Rohs compliant
