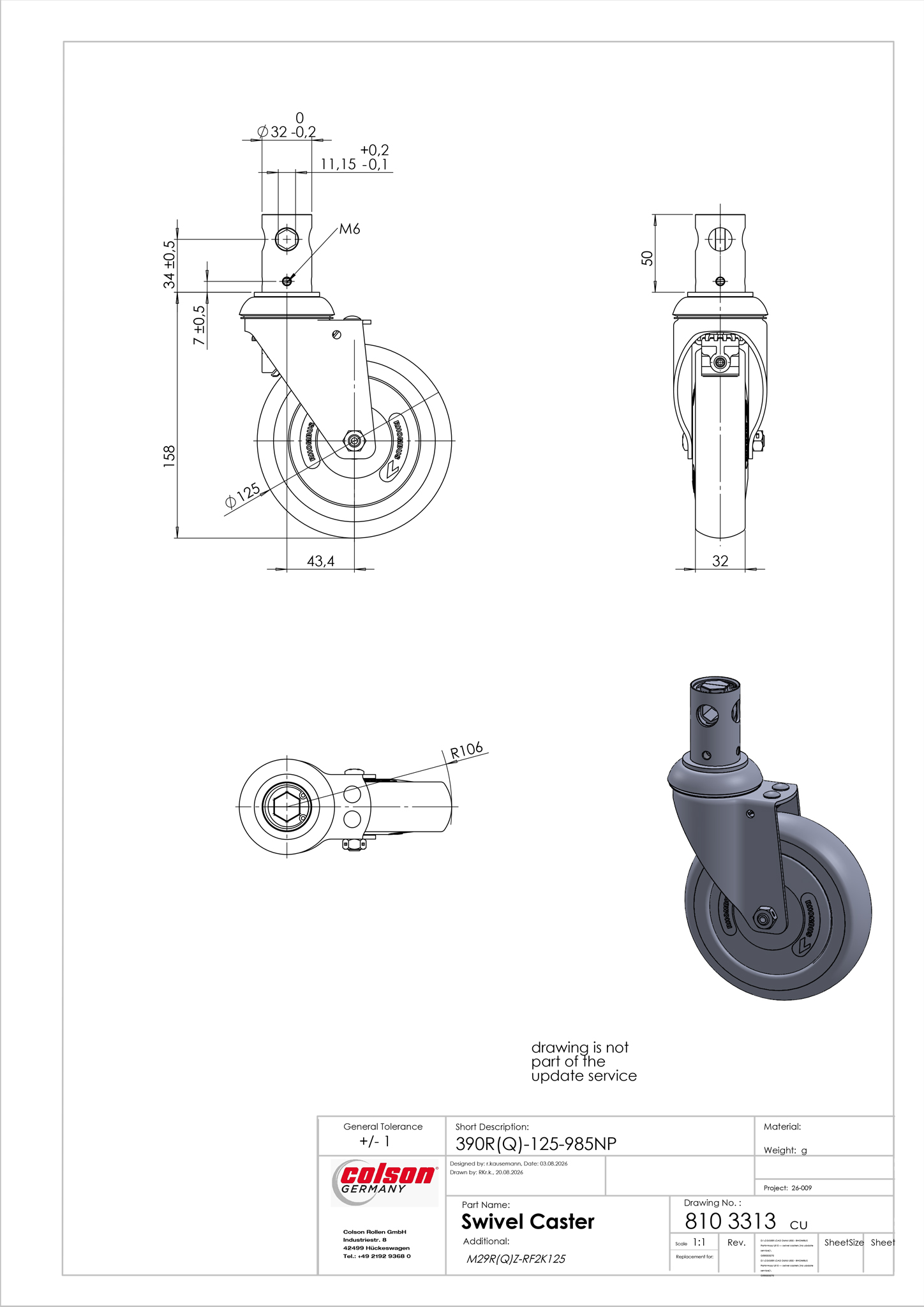

Swivel castor with central/directional total brake, 80 mm - 200 mm, 80 kg - 120 kg

Part number: 390r 29K125r Z985

390r 29K125r Z985

Technical data

Diameter 125 mm
Tread width 32 mm
Height 158 mm
Offset 44 mm
Load capacity 100 kg

Accessories & options

Technical description

  • sheet steel metal housing
  • zinc passivated
  • double ball bearing in swivel head
  • protected from dust and water ingress by plastic sealing ring
  • integrated selection mechanism with total locking brake "q"
  • and directional locking brake "r"
  • selection mechanism continually greased
  • device to permit adjustment of the braking effect
  • (without removing the castor or wheel)
  • also available with other wheel variants



Wheel

  • thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
  • plastic wheel centre and thread guard silver grey RAL7001
  • precision ball bearing
  • Contact discoloration on unsealed grounds possible!>>

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical & diagnostic equipment
  • medical-technical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity
390q 29K080r Z985 80 mm 30 mm 113 mm 44 mm 80 kg
390r 29K080r Z985 80 mm 30 mm 113 mm 44 mm 80 kg
390q 29K100r Z985 100 mm 30 mm 133 mm 42 mm 100 kg
390r 29K100r Z985 100 mm 30 mm 133 mm 42 mm 100 kg
390q 29K125r Z985 125 mm 32 mm 158 mm 44 mm 100 kg
390r 29K125r Z985 125 mm 32 mm 158 mm 44 mm 100 kg
390q 29K150r Z985 150 mm 32 mm 184 mm 51 mm 120 kg
390r 29K150r Z985 150 mm 32 mm 184 mm 51 mm 120 kg
390q 29K200r Z985 200 mm 32 mm 237 mm 61 mm 120 kg
390r 29K200r Z985 200 mm 32 mm 237 mm 61 mm 120 kg
Reach compliant
Map
Rohs compliant
