357h 29K100r ZLD
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
Diameter | 100 mm |
Tread width | 30 mm |
Height | 129,5 mm |
Offset | 47,5 mm |
Bolt hole diameter | 13 mm |
Load capacity | 100 kg |
Weight | 755 g |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 29K100r ZLD-5
Swivel castor with total brake mounted behind 100 mm - 150 mm, 90 kg - 130 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 135 mm |
Offset | 38 mm |
Bolt hole diameter | 12,5 mm |
Load capacity | 90 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,5 mm) andswivel castors with directional brake (357r)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 29K100r ZPF
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
Diameter | 100 mm |
Tread width | 30 mm |
Height | 129,5 mm |
Offset | 47,5 mm |
Top plate dimensions | 95x70 mm |
Top plate hole diameter | 9 mm |
Dist. between holes | 75x45/72x52 mm |
Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 29K100r ZPH-5
Swivel castor with total brake mounted behind 100 mm - 150 mm, 90 kg - 130 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 135 mm |
Offset | 43,5 mm |
Top plate dimensions | 100x80 mm |
Top plate hole diameter | 9 mm |
Dist. between holes | 80x60 mm |
Load capacity | 90 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,5 mm) andswivel castors with directional brake (357r)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 29K100r ZR
Swivel castor with total brake mounted behind 100 mm - 150 mm, 100 kg - 120 kg
Technical data
Diameter | 100 mm |
Tread width | 30 mm |
Height | 132,5 mm |
Offset | 47,5 mm |
Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods

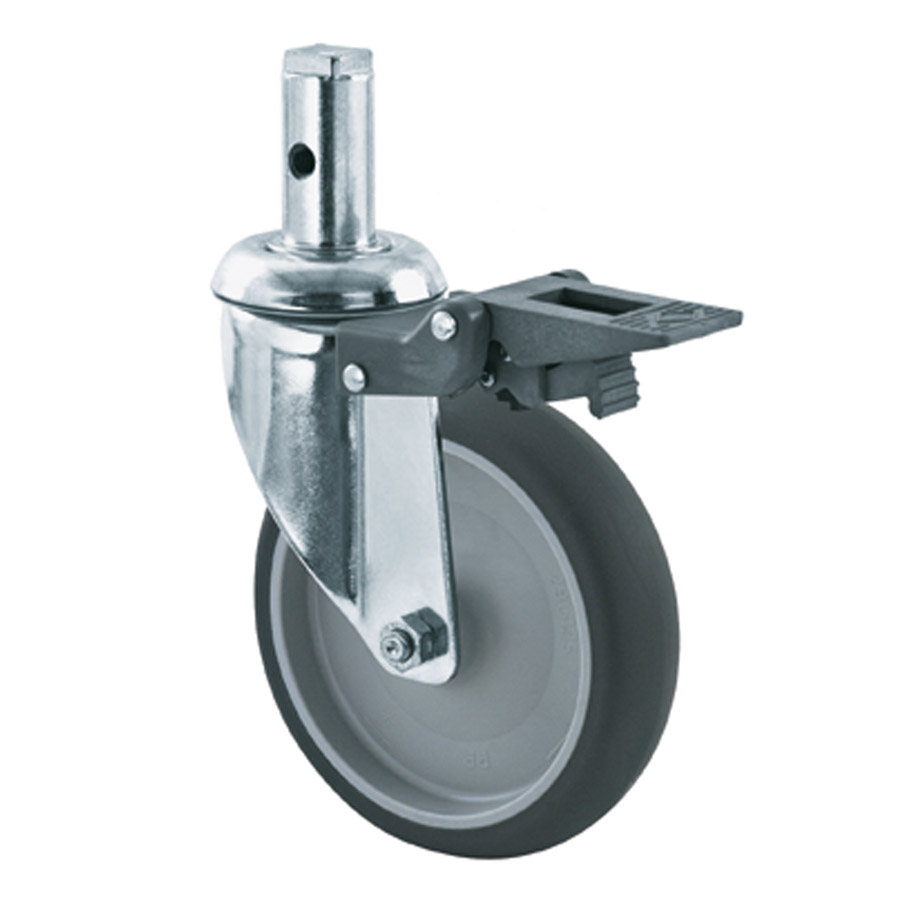

357h 32C100b Z522
Swivel castor with total brake mounted behind 100 mm - 150 mm, 80 kg - 110 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 132,5 mm |
Offset | 47,5 mm |
Stem size | 24x45 M8/19 mm |
Load capacity | 80 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 32C100b ZLD
Swivel castor with total brake mounted behind 100 mm - 150 mm, 80 kg - 110 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 129,5 mm |
Offset | 47,5 mm |
Bolt hole diameter | 13 mm |
Load capacity | 80 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 32C100b ZPF
Swivel castor with total brake mounted behind 100 mm - 150 mm, 80 kg - 110 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 129,5 mm |
Offset | 47,5 mm |
Top plate dimensions | 95x70 mm |
Top plate hole diameter | 9 mm |
Dist. between holes | 75x45/72x52 mm |
Load capacity | 80 kg |
Weight | 1090 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357h 32C100b ZR
Swivel castor with total brake mounted behind 100 mm - 150 mm, 80 kg - 110 kg
Technical data
Diameter | 100 mm |
Tread width | 32 mm |
Height | 132,5 mm |
Offset | 47,5 mm |
Load capacity | 80 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
357r 29G100r Z522
Swivel castor with directional lock 100 mm - 125 mm, 100 kg
Technical data
Diameter | 100 mm |
Tread width | 30 mm |
Height | 132,5 mm |
Offset | 47,5 mm |
Stem size | 24x45 M8/19 mm |
Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre silver grey RAL7001
- without thread guard
- plain bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with plate PD (77x67 mm) and bolt hole LC (11 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
