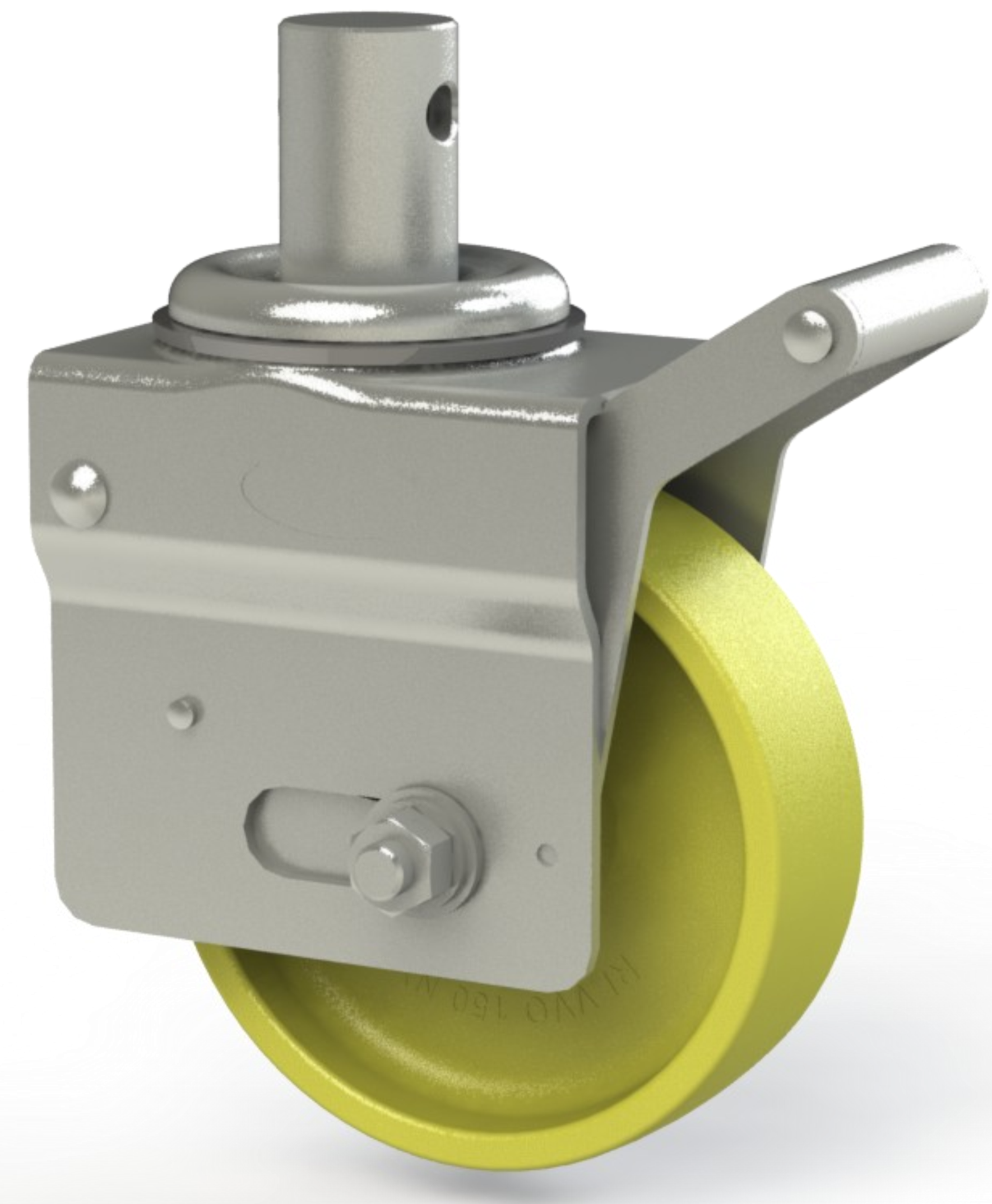

SJE 150 NYOY B21 BX4 - 0640-0163
Swivel castor with wheel locking brake 125 mm - 200 mm, 500 kg - 820 kg
Technical data
| Diameter | 150 mm |
| Tread width | 45 mm |
| Height | 190 mm |
| Offset | 34 mm |
| Stem size | 38x52 mm |
| Brake swivel radius | 165 mm |
| Load capacity | 820 kg |
Wheel
- injection-molded PA6 nylon in BS 381C Bold Yellow No. 363 color with a hardness of 75 ± 5 Shore D
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold
