JXRG 1252 6153
Swivel castor 100 mm - 200 mm, 150 kg - 380 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 200 kg |
| Weight | 1.4 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary

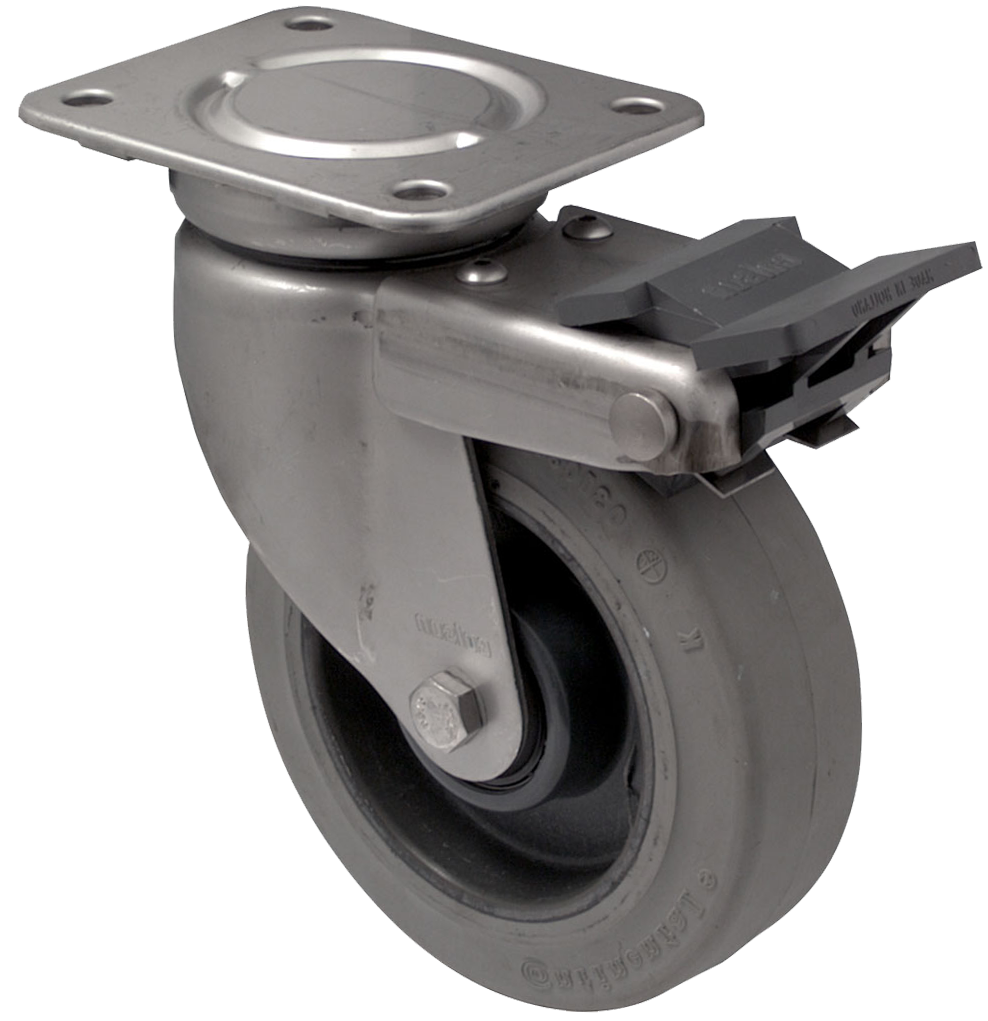

JXRG 1252 6153/B
Swivel castor 125 mm, 200 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 200 kg |
| Weight | 1.6 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
