JTAB 2503 6440

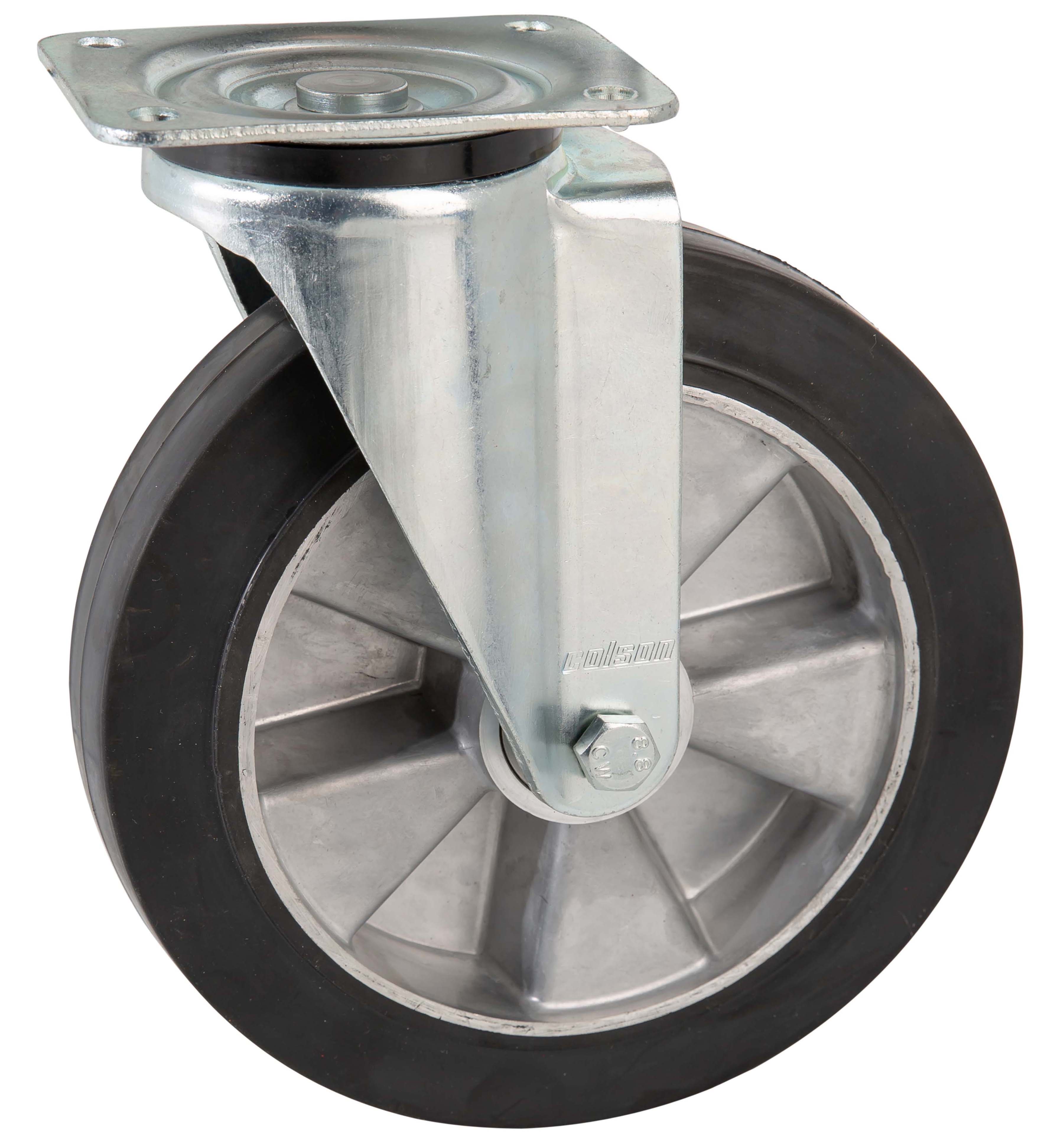

Swivel castor 100 mm - 250 mm, 180 kg - 450 kg
Technical data
| Diameter | 250 mm |
| Hub length | 62 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 80/75 mm |
| Load capacity | 450 kg |
| Weight | 4.3 kg |
Wheel
- Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivel bearing with double ball raceways and sealring an extra sturdy
- plate (4 mm) and fork legs (3.5 mm) for even higher load capacity
