JSCV 0803 6151/B

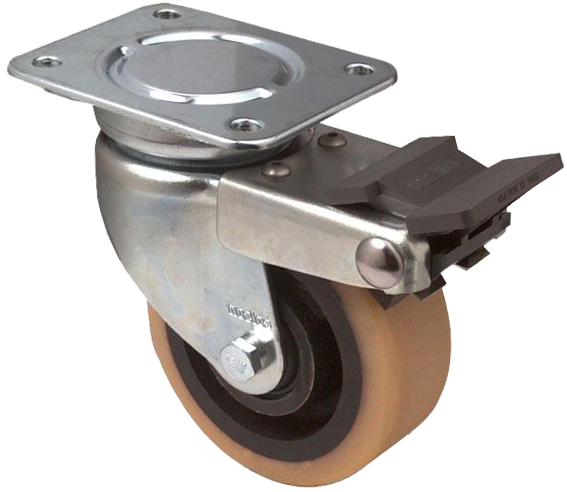

Swivel castor with wheel locking brake 80 mm - 250 mm, 210 kg - 1000 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 210 kg |
| Weight | 1.5 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel with wheel brake. Swivelhead with sealed precision
- ball bearing and a grease nippel
