JPPU 1001 5100

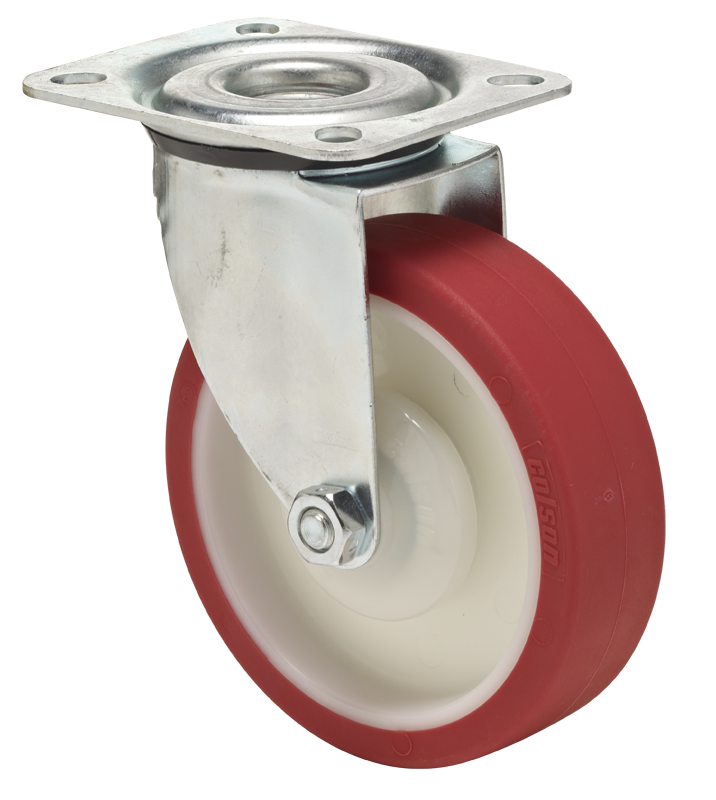

Swivel castor 80 mm - 160 mm, 150 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 42 mm |
| Height | 128 mm |
| Offset | 34 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 128 mm |
| Load capacity | 150 kg |
| Weight | 0.66 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel,
- swivel bearing with double ball race way
- and sealring (excluded the bolt hole fixing plate)
