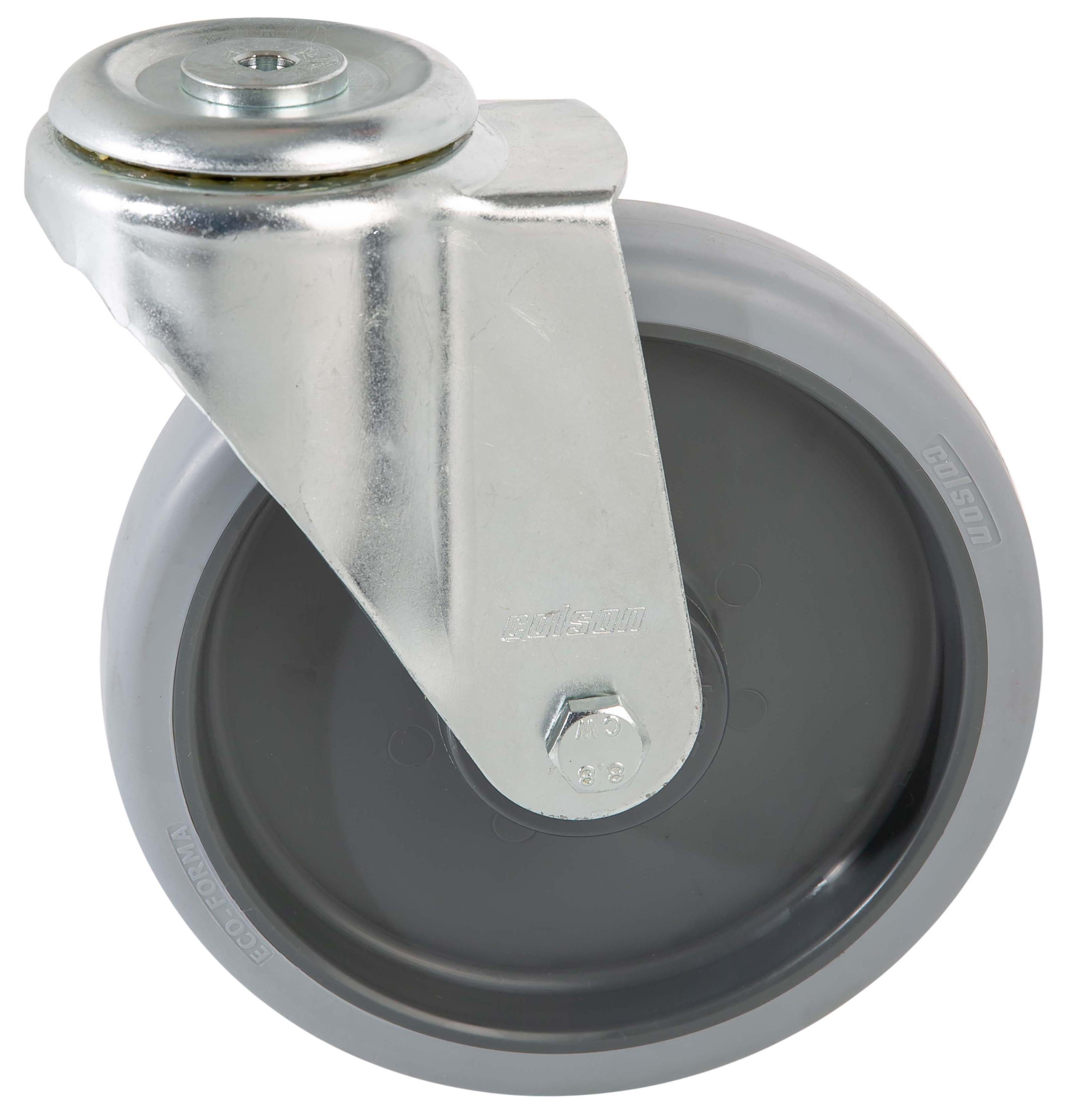

JPPE 2007 5000
Swivel castor 160 mm - 200 mm, 200 kg - 225 kg
Technical data
| Diameter | 200 mm |
| Hub length | 64 mm |
| Height | 235 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 225 kg |
| Weight | 2.4 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Ecoforma, Shore A 65 - 70)
Technical description
- Swivel fork of deep drawn zinc-coated steel,
- swivel bearing with double ball race way
- and sealring (excluded the bolt hole fixing plate)
JPPE 2007 5000 (Ecoforma)
Swivel castor 125 mm - 200 mm, 110 kg - 225 kg
Technical data
| Diameter | 200 mm |
| Hub length | 64 mm |
| Height | 235 mm |
| Offset | 67 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 225 kg |
| Weight | 2.4 kg |
Wheel
- Polypropylene wheel centre with grey thermoplastic rubber tyre (Ecoforma - Shore A 65-70) and a sealed precision ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel with bolt hole fitting
Areas of application
- Transportation & Logistic
- Material Handling
- Packaging
- Automotive
- Chemical Industry
- Food & Beverage (Catering), etc.
