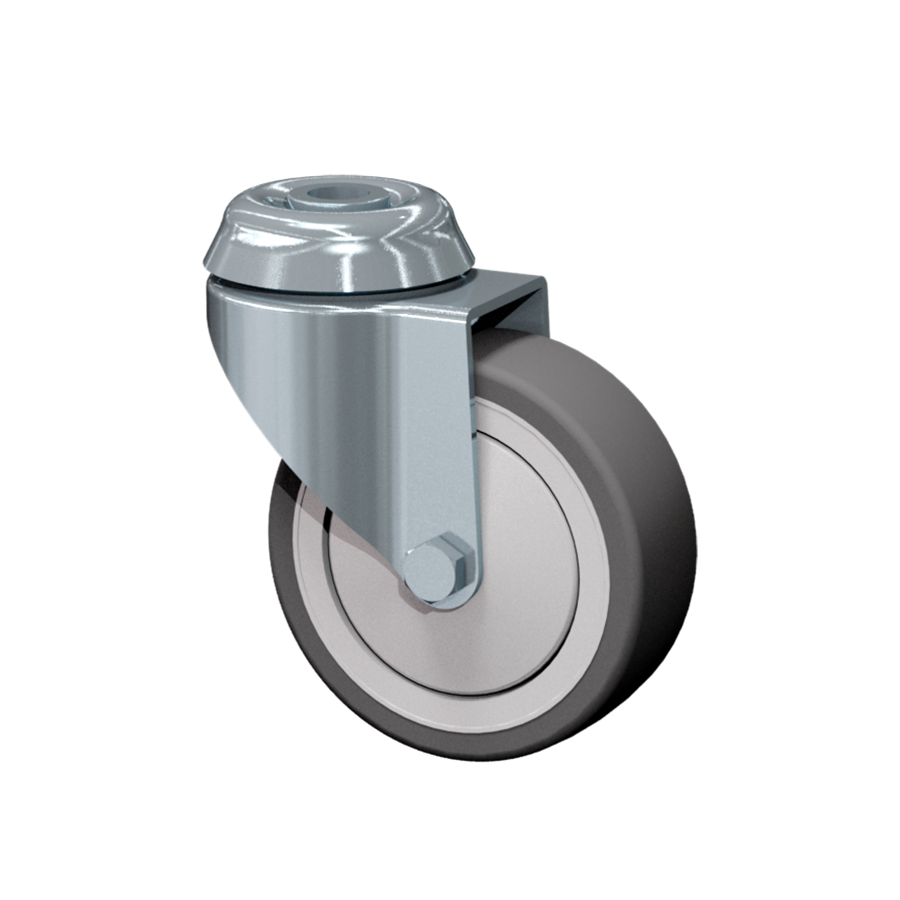

GML-31C-L10 (Serie/s GM)
Swivel castor 50 mm - 100 mm, 50 kg - 75 kg
Technical data
| Diameter | 75 mm |
| Tread width | 28 mm |
| Hub length | 28 mm |
| Height | 98 mm |
| Offset | 24 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 62 mm |
| Load capacity | 60 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
