BTRB 2503 6443

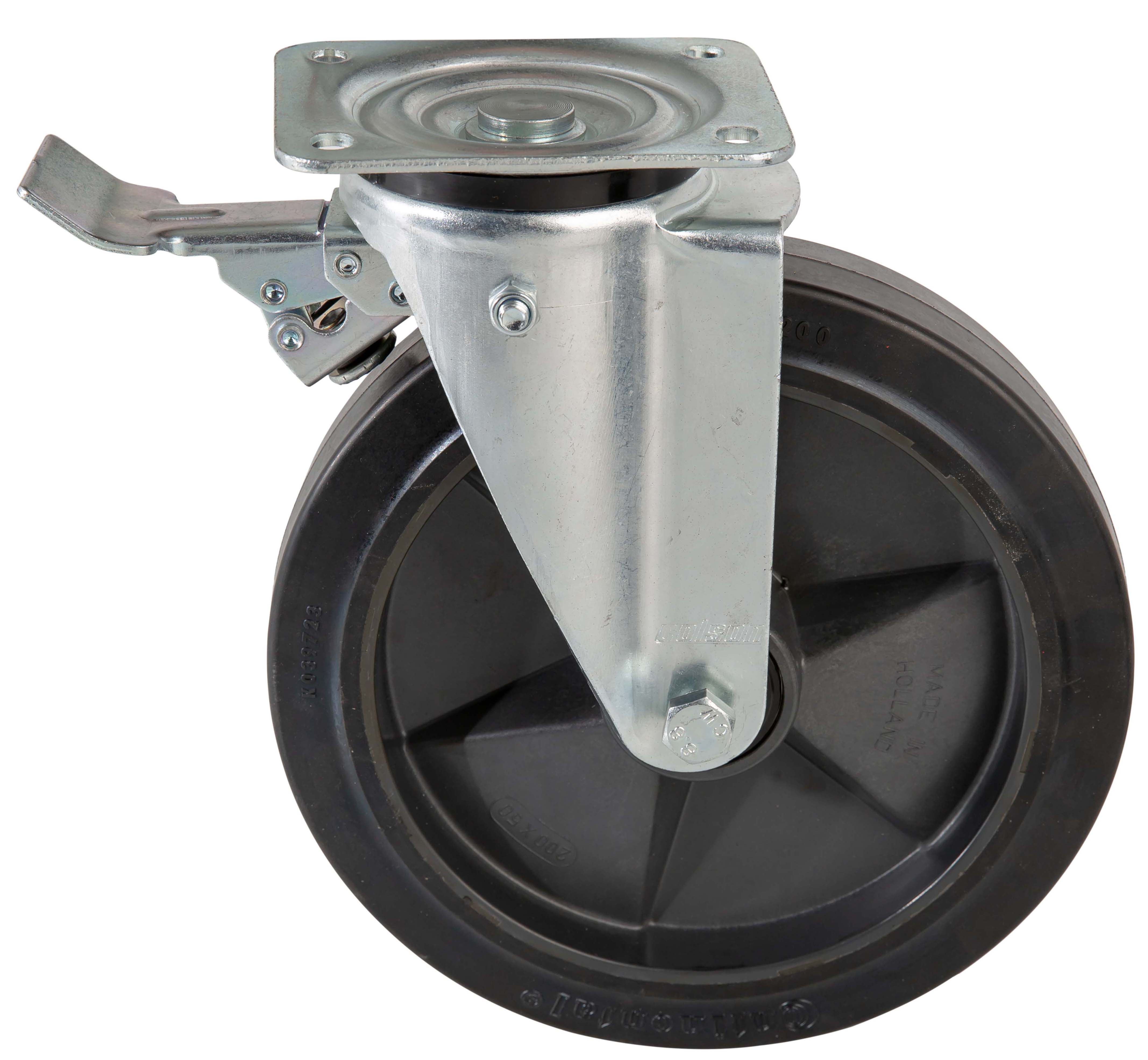

Swivel castor with total brake mounted in front 80 mm - 250 mm, 150 kg - 475 kg
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 80/75 mm |
| Load capacity | 475 kg |
| Weight | 4 kg |
Wheel
- Glass fibre reinforced polyamide wheel with black rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
