BTRB 0802 5080

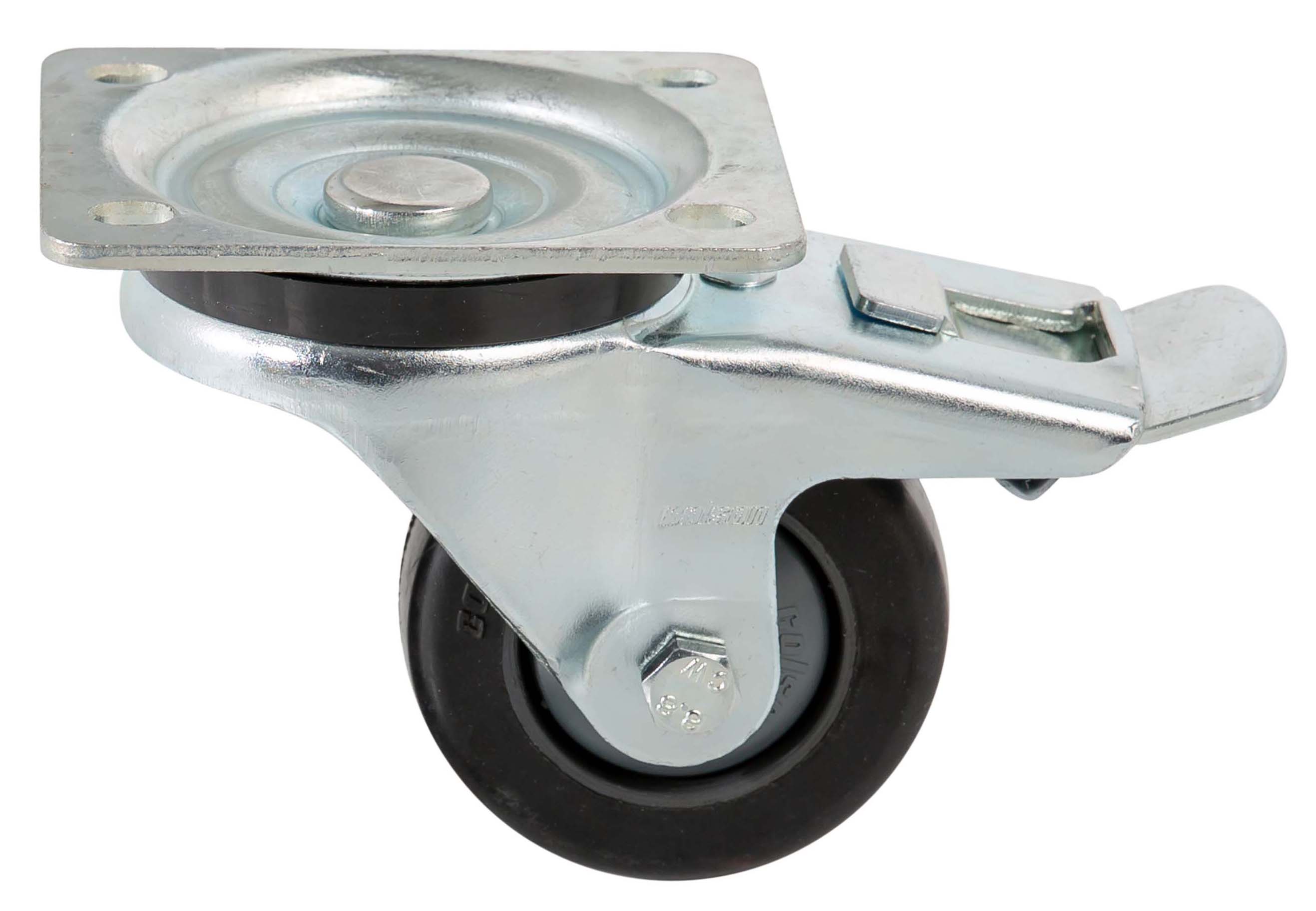

Swivel castor with total brake mounted behind 80 mm - 250 mm, 150 kg - 475 kg
Technical data
| Diameter | 80 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Wheel axle diameter | 8 mm |
| Threaded stem size | 35 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Load capacity | 150 kg |
| Weight | 1.2 kg |
Wheel
- Glass fibre reinforced polyamide wheel with black rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
