BPSM 2007 2000

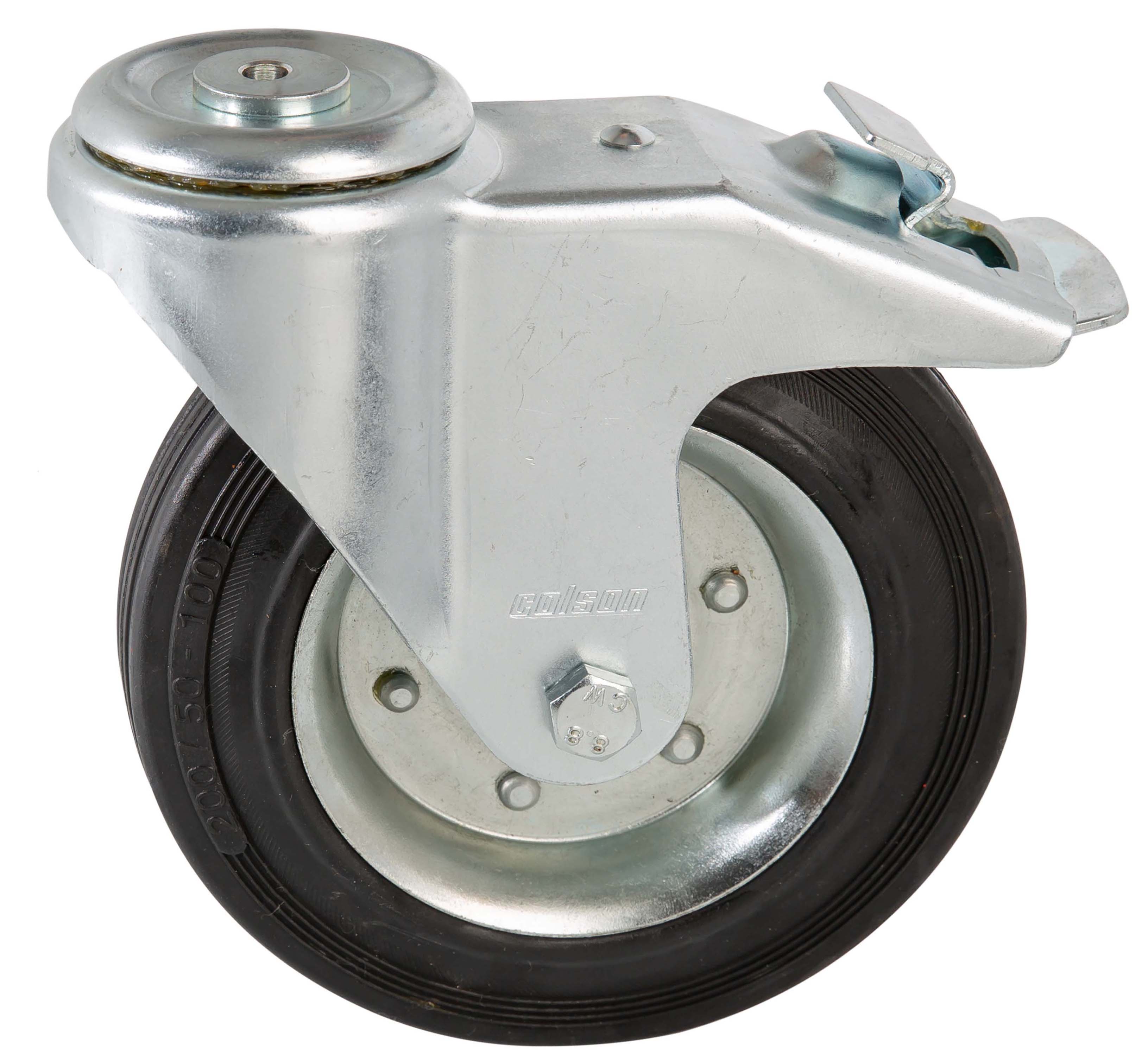

Swivel castor with total brake mounted behind 80 mm - 200 mm, 50 kg - 160 kg
Technical data
| Diameter | 200 mm |
| Hub length | 60 mm |
| Height | 235 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Load capacity | 160 kg |
| Weight | 3.5 kg |
Wheel
- Pressed sheetsteel wheel with black rubber tyre
- (Shore A 85) and roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel,
- swivel bearing with double ball race way and sealring (excluded the bolt hole fixing plate) with a total lock brake
