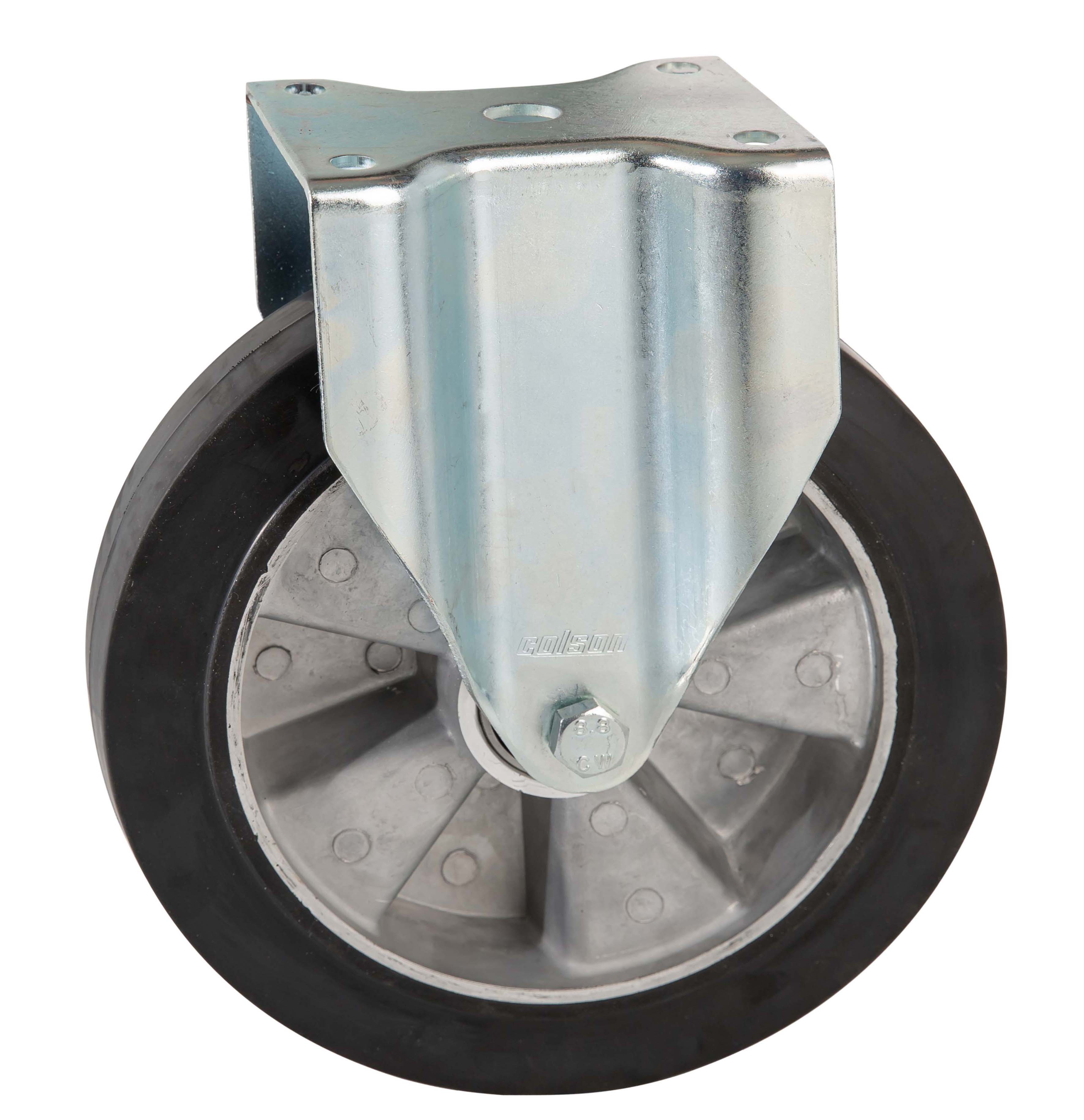

Fixed castor, 100 mm - 250 mm, 180 kg - 500 kg

Part number: FTAB 2503 6440

Technical data

Diameter 250 mm
Hub length 64 mm
Height 290 mm
Offset 53 mm
Wheel axle diameter 20 mm
Threaded stem size 50 mm
Top plate dimensions 135 x 110 mm
Top plate hole diameter 11 mm
Dist. between holes 105 x 80/75 mm
Load capacity 500 kg
Weight 3.8 kg

Technical description

  • Rigid fork of zinc-coated sheet steel with an
  • extra sturdy plate (4 mm) and fork legs (3.5 mm)
  • for even higher load capacity



Wheel

  • Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C

Variants

Diameter Hub length Height Offset Wheel axle diameter Threaded stem size Top plate dimensions Top plate hole diameter Dist. between holes Load capacity Weight
FTAB 1002 6150 100 mm 50 mm 130 mm mm mm mm 105 x 86 mm 9 mm 80/77 x 60 mm 180 kg 1 g
FTAB 1252 6150 125 mm 50 mm 155 mm mm mm mm 105 x 86 mm 9 mm 80/77 x 60 mm 200 kg 1.3 g
FTAB 1253 6150 125 mm 62 mm 155 mm mm mm mm 135 x 110 mm 11 mm 105 x 75/80 mm 200 kg 2 g
FTAB 1503 6440 150 mm 62 mm 188 mm mm mm mm 135 x 110 mm 11 mm 105 x 75/80 mm 300 kg 2.1 g
FTAB 1603 6440 160 mm 62 mm 193 mm mm mm mm 135 x 110 mm 11 mm 105 x 75/80 mm 350 kg 2.3 g
FTAB 2003 6440 200 mm 62 mm 238 mm mm mm mm 135 x 110 mm 11 mm 105 x 75/80 mm 450 kg 2.7 g
250 mm 64 mm 290 mm 53 mm 20 mm 50 mm 135 x 110 mm 11 mm 105 x 80/75 mm 500 kg 3.8 g
Reach compliant
