Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from RHOMBUS are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.
JXPU 1002 5000/B
Swivel castor with wheel locking brake 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 250 kg |
| Weight | 1.03 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXPU 1002 6123
Swivel castor 100 mm - 200 mm, 180 kg - 515 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXPU 1002 6123/B
Swivel castor with wheel locking brake 100 mm - 200 mm, 180 kg - 515 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 1.4 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary

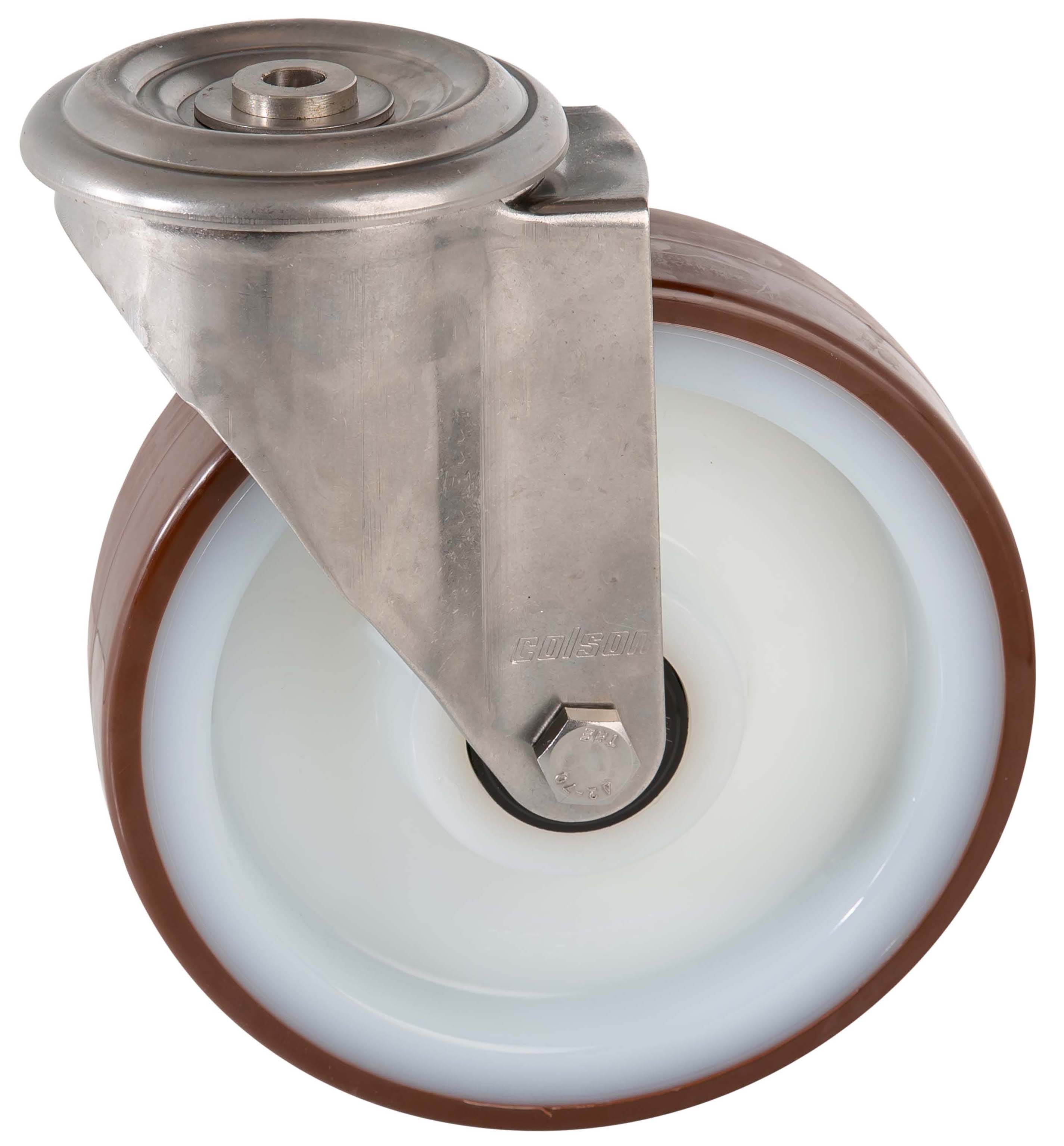

JXPU 1607 6443
Swivel castor 160 mm - 200 mm, 410 kg - 500 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 12 mm |
| Load capacity | 410 kg |
| Weight | 2.2 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXRG 0802 5000
Swivel castor 80 mm - 125 mm, 150 kg - 200 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 150 kg |
| Weight | 1 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXRG 0802 5000/B
Swivel castor with wheel locking brake 80 mm - 125 mm, 150 kg - 200 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 150 kg |
| Weight | 1.2 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXRG 1002 6123
Swivel castor 100 mm - 200 mm, 150 kg - 380 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 150 kg |
| Weight | 1.2 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXRG 1255 6123
Swivel castor 125 mm, 180 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 156 mm |
| Offset | 41 mm |
| Bolt hole diameter | 12.3 mm |
| Brake swivel radius | 138 mm |
| Load capacity | 180 kg |
| Weight | 1.18 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXRG 1603 6443/B
Swivel castor 160 mm - 200 mm, 300 kg - 380 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 55 mm |
| Wheel axle diameter | 20 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 300 kg |
| Weight | 3.6 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXRN 0803 6153
Swivel castor 80 mm - 160 mm, 175 kg - 625 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 28 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 175 kg |
| Weight | 1 kg |
Wheel
- Glass fibre reinforced polyamide wheel
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
