Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from RHOMBUS are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.
FXPN 0802 7000
Fixed castor 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 180 kg |
| Weight | 0.6 kg |
Wheel
- Polyamide wheel with one sealed stainless steel
- deep groove ball bearing
Technical description
- Rigid fork of stainless steel
FXPN 1002 6123
Fixed castor 100 mm - 200 mm, 250 kg - 500 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 250 kg |
| Weight | 0.7 kg |
Wheel
- Polyamide wheel with two deep groove ball bearings
Technical description
- Rigid fork of stainless steel

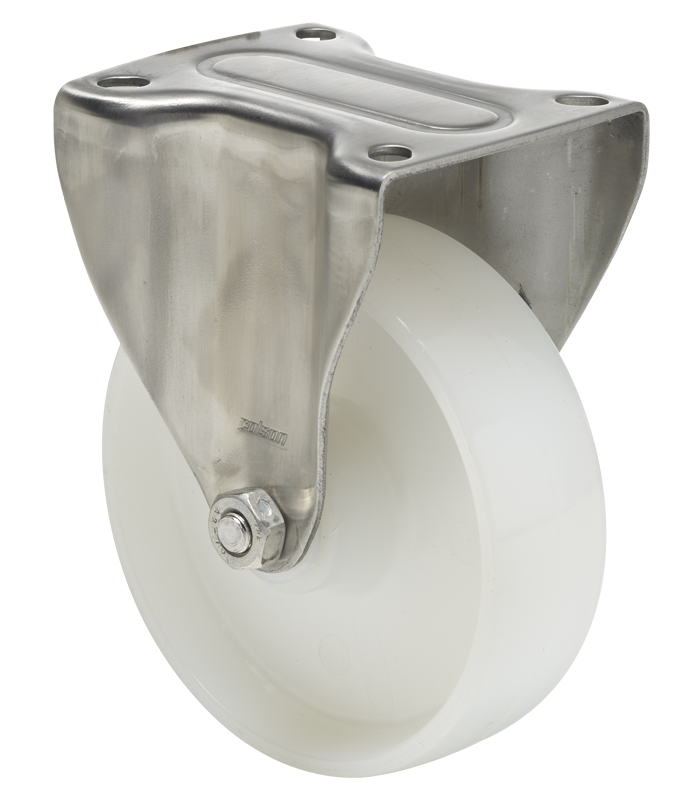

FXPP 0801 1000
Fixed castor 80 mm - 125 mm, 150 kg - 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 40 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 135 mm |
| Load capacity | 150 kg |
| Weight | 0.5 kg |
Wheel
- White Polypropyleene wheel
- with a plain bearing
Technical description
- Rigid fork of stainless steel
FXPR 0801 5000
Fixed castor 80 mm - 125 mm, 120 kg - 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 120 kg |
| Weight | 0.5 kg |
Wheel
- Dark grey Polypropyleene wheel with a blue elasticrubber tyre (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Rigid fork of stainless steel
FXPR 1603 6443
Fixed castor 160 mm - 200 mm, 250 kg - 300 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Load capacity | 250 kg |
| Weight | 1.75 kg |
Wheel
- Dark grey Polypropyleene wheel with blue elastic tyre
- (Performa, Shore A 65 - 70) with two deep groove ball bearings
Technical description
- Rigid fork of stainless steel
FXPU 0801 7000
Fixed castor 80 mm - 125 mm, 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 150 kg |
| Weight | 0.6 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove stainless steel ball bearing
Technical description
- Rigid fork of stainless steel
FXPU 0802 7000
Fixed castor 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 180 kg |
| Weight | 0.6 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove stainless steel ball bearing
Technical description
- Rigid fork of stainless steel
FXPU 0802 7000 BLUE
Fixed castor 80 mm, 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 180 kg |
| Weight | 0.6 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (80° Shore A) with one deep groove stainless steel ball bearing
Technical description
- Rigid fork of stainless steel
FXPU 1002 5000
Fixed castor 100 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 180 kg |
| Weight | 0.7 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove ball bearing
Technical description
- Rigid fork of stainless steel
FXPU 1002 6123
Fixed castor 100 mm - 200 mm, 180 kg - 515 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 0.7 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with two deep groove ball bearings
Technical description
- Rigid fork of stainless steel
