Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from RHOMBUS are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.

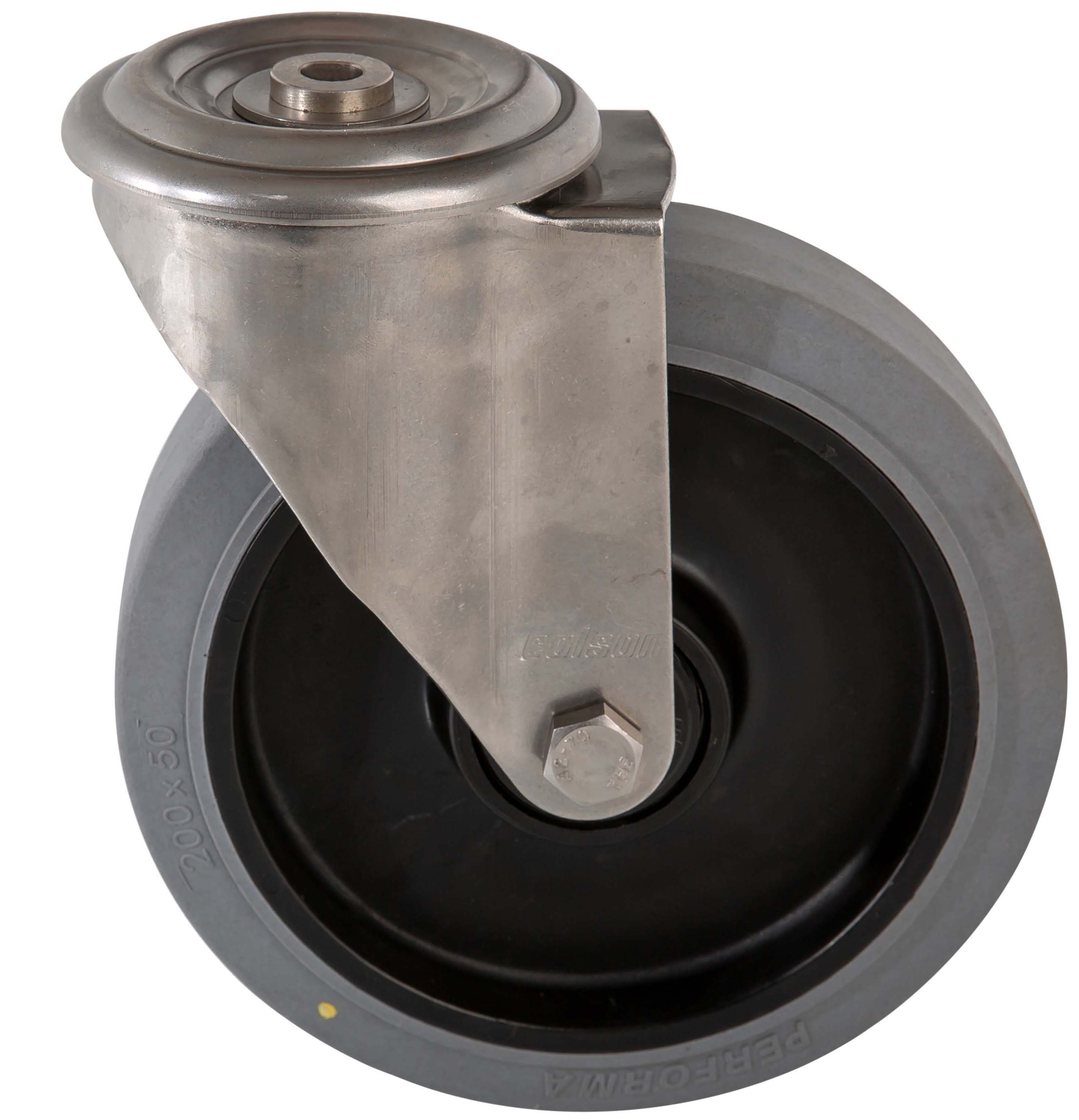

JXPC 1607 6443
Swivel castor 160 mm - 200 mm, 300 kg - 250 kg
Technical data
| Diameter | 160 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Load capacity | 300 kg |
| Weight | 2 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with two steel deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPF 0801 7100
Swivel castor 80 mm - 200 mm, 120 kg - 300 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 113 mm |
| Load capacity | 120 kg |
| Weight | 0.57 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPF 0802 7000
Swivel castor 80 mm - 200 mm, 120 kg - 300 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 35 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 120 kg |
| Weight | 0.74 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXPF 0802 7000/B
Swivel castor with wheel locking brake 80 mm - 200 mm, 120 kg - 300 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 35 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 120 kg |
| Weight | 0.87 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
JXPF 0805 7000
Swivel castor 80 mm - 125 mm, 120 kg - 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 113 mm |
| Load capacity | 120 kg |
| Weight | 0.58 kg |
Wheel
- Dark grey polypropylene wheel with grey rubber tyre
- (Performa, Shore A 65) with one stainless steel deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPF 1002 5000
Swivel castor 100 mm - 125 mm, 150 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 128 mm |
| Load capacity | 150 kg |
| Weight | 0.8 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
JXPF 1005 5000
Swivel castor 100 mm - 125 mm, 150 kg - 180 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 128 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 128 mm |
| Load capacity | 150 kg |
| Weight | 0.7 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPF 1607 6443
Swivel castor 160 mm - 200 mm, 500 kg - 300 kg
Technical data
| Diameter | 160 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Load capacity | 500 kg |
| Weight | 2 kg |
Wheel
- Dark grey Polypropyleene wheel with grey elastic Performa tyre
- (65° - 70° Shore A) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPG 0801 1100
Swivel castor 80 mm - 200 mm, 50 kg - 200 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 25 mm |
| Hub length | 40 mm |
| Height | 106 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 135 mm |
| Load capacity | 50 kg |
| Weight | 0.7 kg |
Wheel
- Polypropyleene wheel with grey rubber tyre (Shore A 85) and plain bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JXPG 0802 6123
Swivel castor 80 mm - 200 mm, 50 kg - 270 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 25 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 50 kg |
| Weight | 1 kg |
Wheel
- Polyamide wheel with grey rubber tyre
- (Shore A 85) and two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
