Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from RHOMBUS are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.

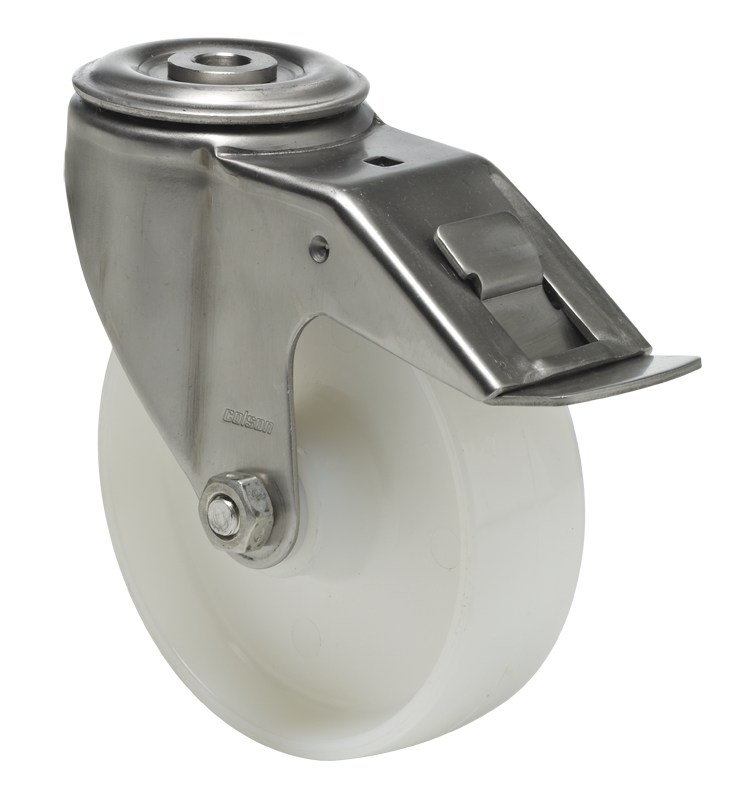

BXPP 0805 1000
Swivel castor with total brake mounted behind 80 mm - 125 mm, 150 kg - 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 40 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12.5 mm |
| Brake swivel radius | 135 mm |
| Load capacity | 150 kg |
| Weight | 0.9 kg |
Wheel
- White Polypropyleene wheel
- with a plain bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake
BXPR 0801 5100
Swivel castor with total brake mounted behind 80 mm - 100 mm, 120 kg - 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 120 kg |
| Weight | 1.1 kg |
Wheel
- Dark grey Polypropyleene wheel with a blue elastic rubber tyre (Performa, Shore A 65-70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake
BXPR 0805 5000
Swivel castor with total brake mounted behind 80 mm - 125 mm, 120 kg - 180 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 120 kg |
| Weight | 1.2 kg |
Wheel
- Dark grey Polypropyleene wheel with a blue elasticrubber tyre (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake
BXPR 1602 6443
Swivel castor with total brake mounted behind 160 mm - 200 mm, 250 kg - 300 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 60 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 178 mm |
| Load capacity | 250 kg |
| Weight | 3 kg |
Wheel
- Dark grey Polypropyleene wheel with blue elastic tyre
- (Performa, Shore A 65 - 70) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake

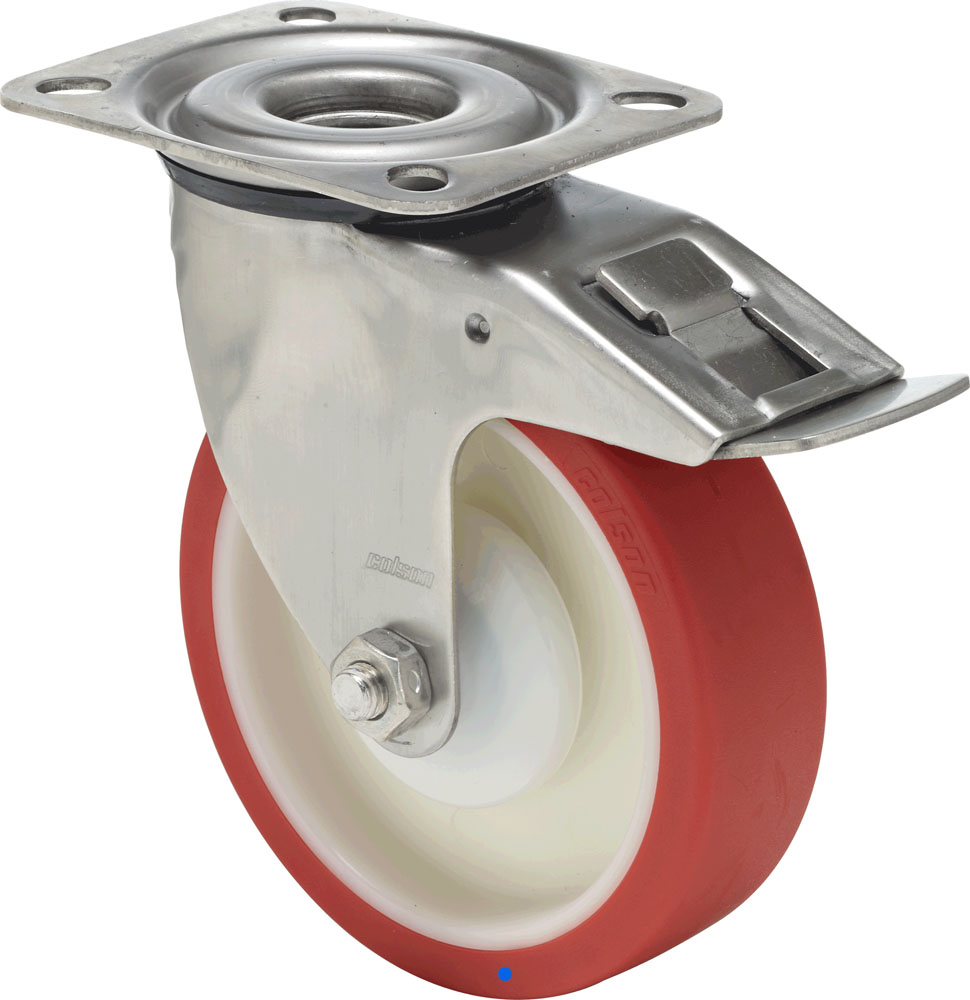

BXPU 0801 7100
Swivel castor with total brake mounted behind 80 mm - 125 mm, 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 150 kg |
| Weight | 0.9 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove stainless steel ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake

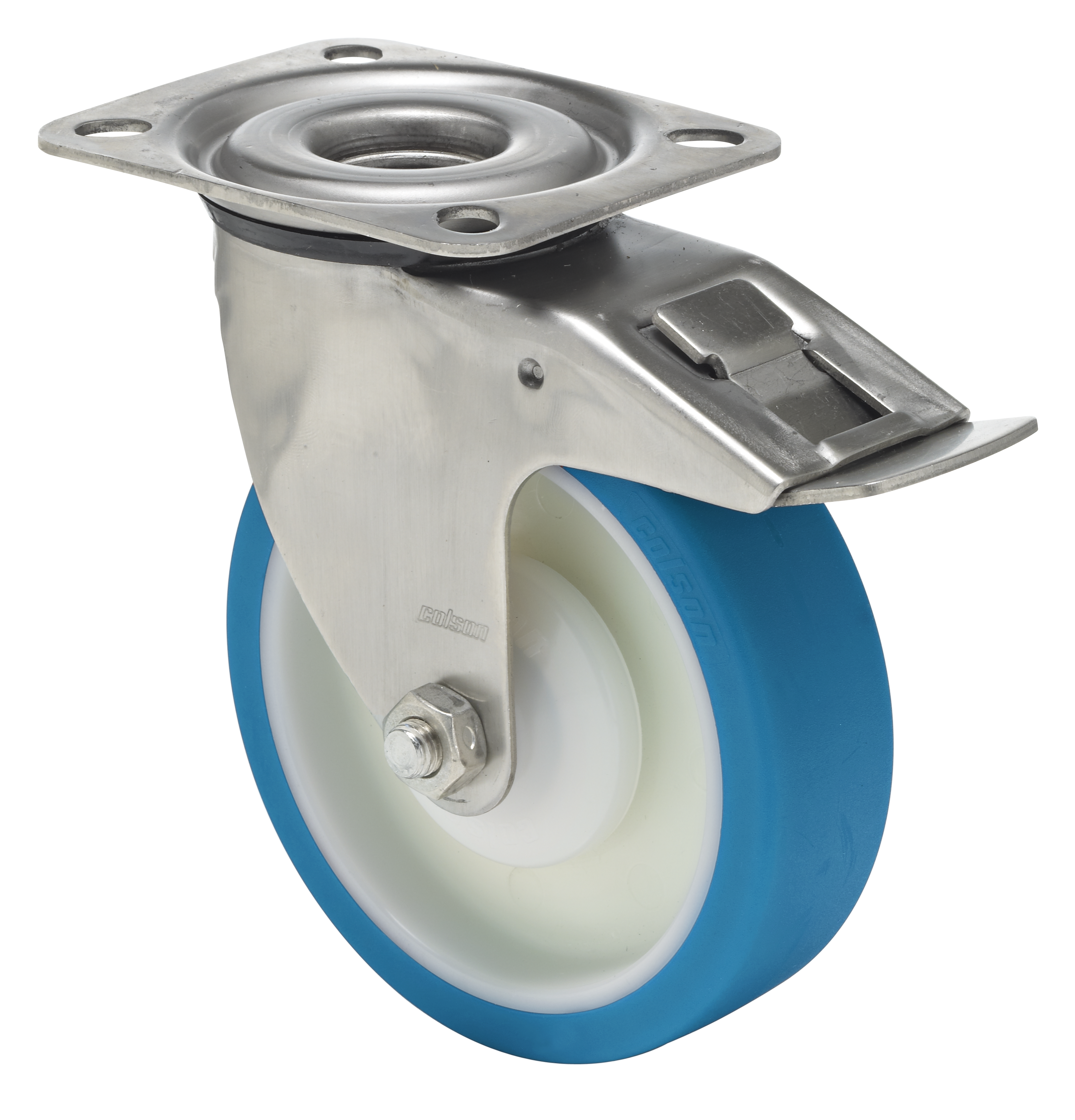

BXPU 0801 7100 BLUE
Swivel castor with total brake mounted behind 80 mm - 125 mm, 180 kg - 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 108 mm |
| Load capacity | 180 kg |
| Weight | 0.9 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (80° Shore A) with one deep groove stainless steel ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake
BXPU 0805 7000
Swivel castor with total brake mounted behind 80 mm - 125 mm, 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 111 mm |
| Load capacity | 150 kg |
| Weight | 0.9 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove stainless steel ball bearing
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake

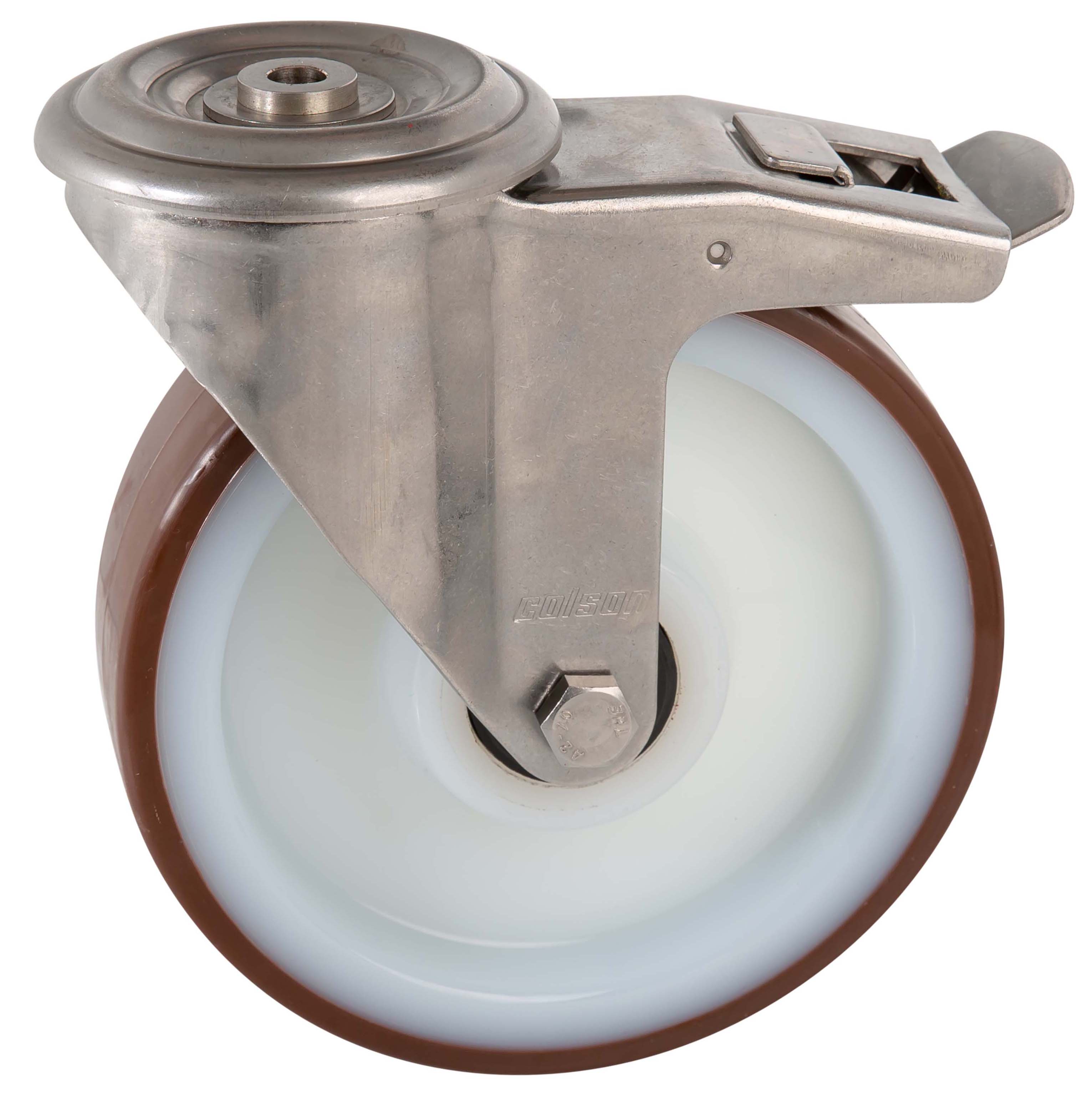

BXPU 1607 6443
Swivel castor with total brake mounted behind 160 mm - 200 mm, 410 kg - 500 kg
Technical data
| Diameter | 160 mm |
| Hub length | 64 mm |
| Height | 195 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Load capacity | 410 kg |
| Weight | 2.5 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring
- with a total lock brake
FXPA 0802 5000
Fixed castor 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 180 kg |
| Weight | 0.6 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 92) and one deep groove ball bearing
Technical description
- Rigid fork of stainless steel
FXPC 0801 7000
Fixed castor 80 mm - 200 mm, 80 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 42 mm |
| Height | 105 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9.6 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 80 kg |
| Weight | 0.41 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
Technical description
- Rigid fork of stainless steel
