KSL-31C-P100 (VIVAX)
Swivel castor 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/75x60 mm |
| Load capacity | 70 kg |
| Weight | 550 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL-31C-P77 (VIVAX)
Swivel castor 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,3 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 70 kg |
| Weight | 500 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL-31C-P95 (VIVAX)
Swivel castor 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5/10 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 70 kg |
| Weight | 530 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

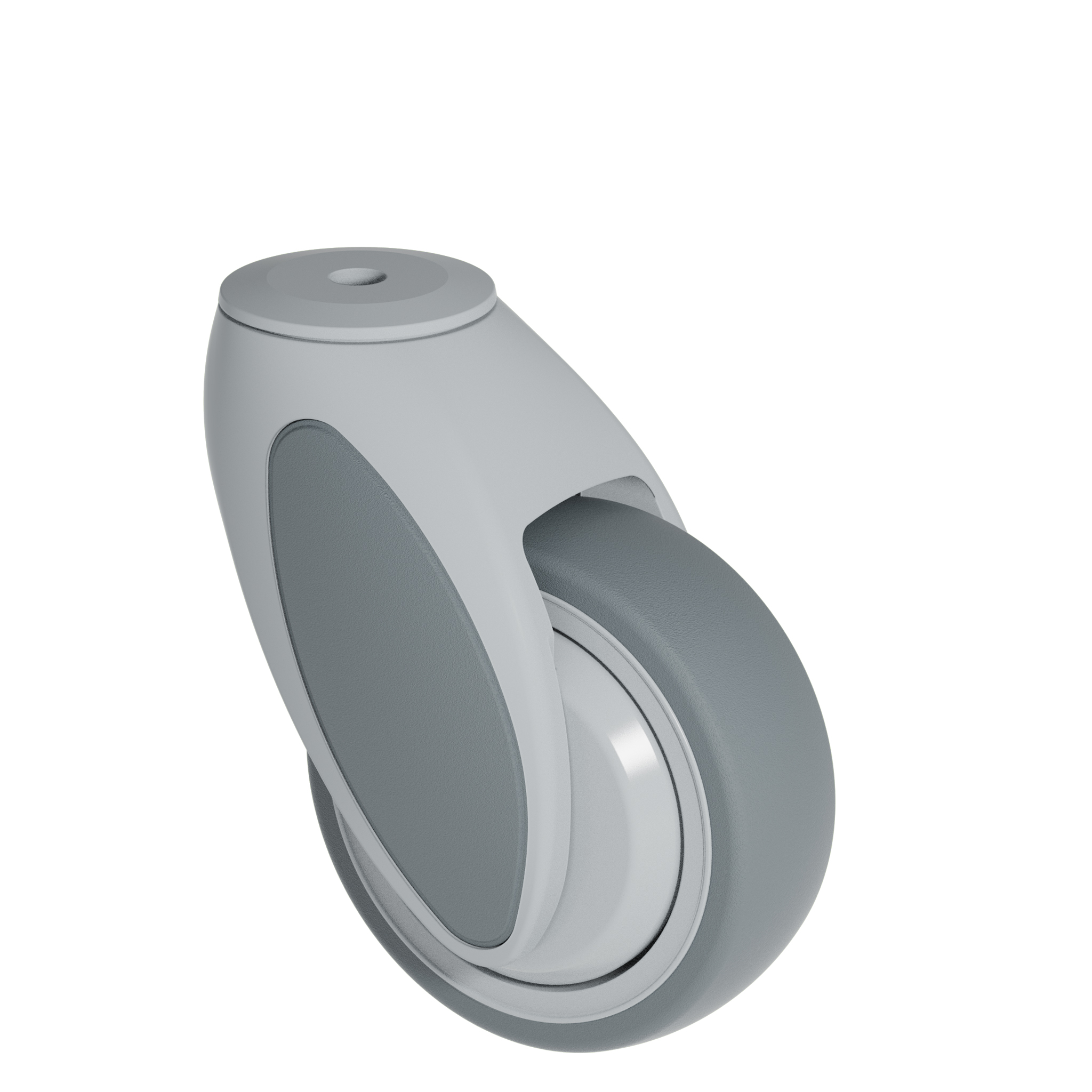

KSL2-41C-L10 (VIVAX 2.0)
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 46 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 100 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL2-41C-L12 (VIVAX 2.0)
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 46 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 100 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

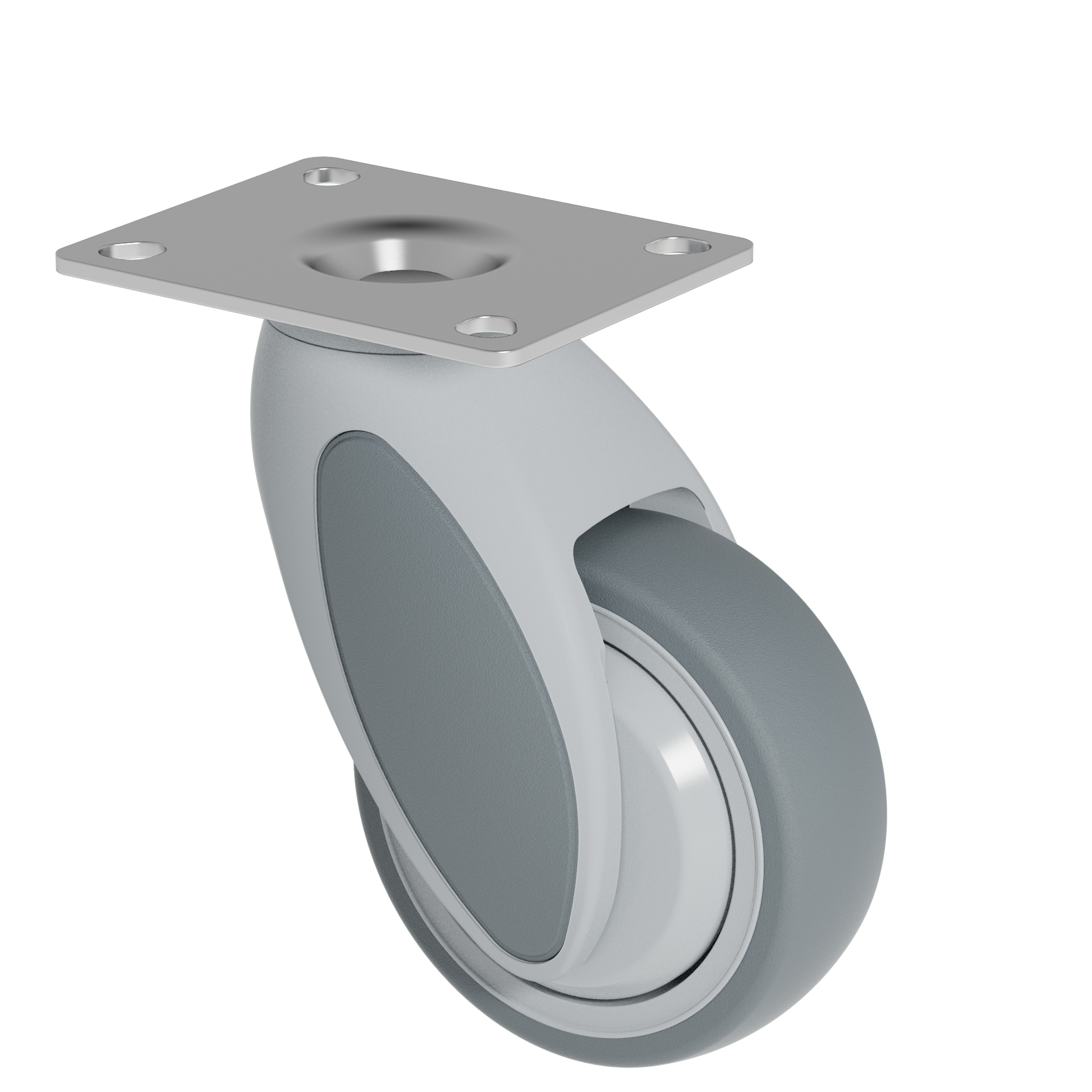

KSL2-41C-P100 (VIVAX 2.0)
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 80/75x60/55 mm |
| Load capacity | 100 kg |
| Weight | 620 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

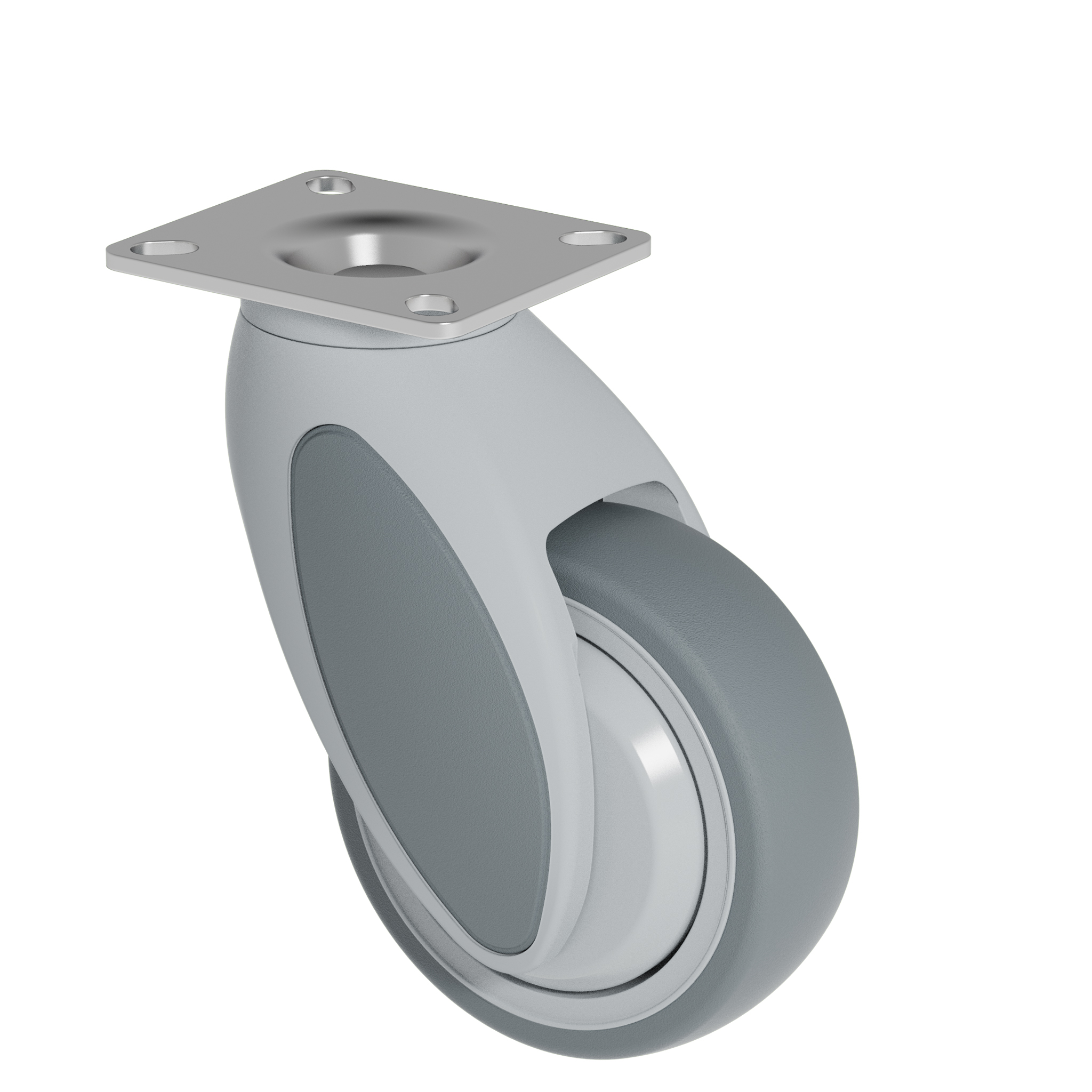

KSL2-41C-P77 (VIVAX 2.0)
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 77x67 mm |
| Top plate hole diameter | 8,3 mm |
| Dist. between holes | 61x51/56x47 mm |
| Load capacity | 100 kg |
| Weight | 590 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL2-41C-P95(VIVAX 2.0)
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5/10 mm |
| Dist. between holes | 75x50/72x52 mm |
| Load capacity | 100 kg |
| Weight | 600 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
NKSD-31CN-L10 (VIVAX)
Swivel castor with directional lock 75 mm, 70 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 70 kg |
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
NKSD-31CN-L12 (VIVAX)
Swivel castor with directional lock 75 mm, 70 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 70 kg |
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
