305011 (TWIST)
Swivel castor with total brake mounted behind 75 mm - 125 mm, 95 kg - 125 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x20 (81) mm |
| Height | 143 mm |
| Bolt hole diameter | 10 mm |
| Brake swivel radius | 133 mm |
| Load capacity | 125 kg |
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Technical description
- TWIST plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- Fittings: 10 und 12 mm bolt hole and top plate
- on request also available with other wheel variants and lower overall height
Areas of application
- Laundry carts
- bedside cabinets
- catering trolleys
- diagnostic equipment
- electronic equipment
- food transport equipment
- transport trolleys
305281 (TWIST)
Swivel castor 75 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x20 (81) mm |
| Height | 152 mm |
| Top plate dimensions | 77x67 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 61/51x50/42 mm |
| Brake swivel radius | 102 mm |
| Load capacity | 100 kg |
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Technical description
- TWIST plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- Fittings: 10 und 12 mm bolt hole and top plate
- on request also available with other wheel variants and lower overall height
Areas of application
- Laundry carts
- bedside cabinets
- catering trolleys
- diagnostic equipment
- electronic equipment
- food transport equipment
- transport trolleys
305282 (TWIST)
Swivel castor with total brake mounted behind 75 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x20 (81) mm |
| Height | 152 mm |
| Top plate dimensions | 77x67 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 61/51x50/42 mm |
| Brake swivel radius | 133 mm |
| Load capacity | 100 kg |
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Technical description
- TWIST plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- Fittings: 10 und 12 mm bolt hole and top plate
- on request also available with other wheel variants and lower overall height
Areas of application
- Laundry carts
- bedside cabinets
- catering trolleys
- diagnostic equipment
- electronic equipment
- food transport equipment
- transport trolleys
305378 (TWIST)
Swivel castor with directional lock 125 mm, 125 kg
Technical data
| Diameter | 125 mm |
| Tread width | 2x20 (81) mm |
| Height | 143 mm |
| Bolt hole diameter | 10 mm |
| Brake swivel radius | 133 mm |
| Load capacity | 125 kg |
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Technical description
- TWIST plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- Fittings: 10 und 12 mm bolt hole and top plate
- on request also available with other wheel variants and lower overall height
Areas of application
- Laundry carts
- bedside cabinets
- catering trolleys
- diagnostic equipment
- electronic equipment
- food transport equipment
- transport trolleys
381a 40K075v KGD
On request
Swivel castor 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 95 mm |
| Threaded stem size | M12x25 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381a 40K075v KPS
On request
Swivel castor 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 105 mm |
| Top plate dimensions | 94X64 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 78/72X45 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381h 40K075v KGD
On request
Swivel castor with total brake mounted behind 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 95 mm |
| Threaded stem size | M12x25 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts

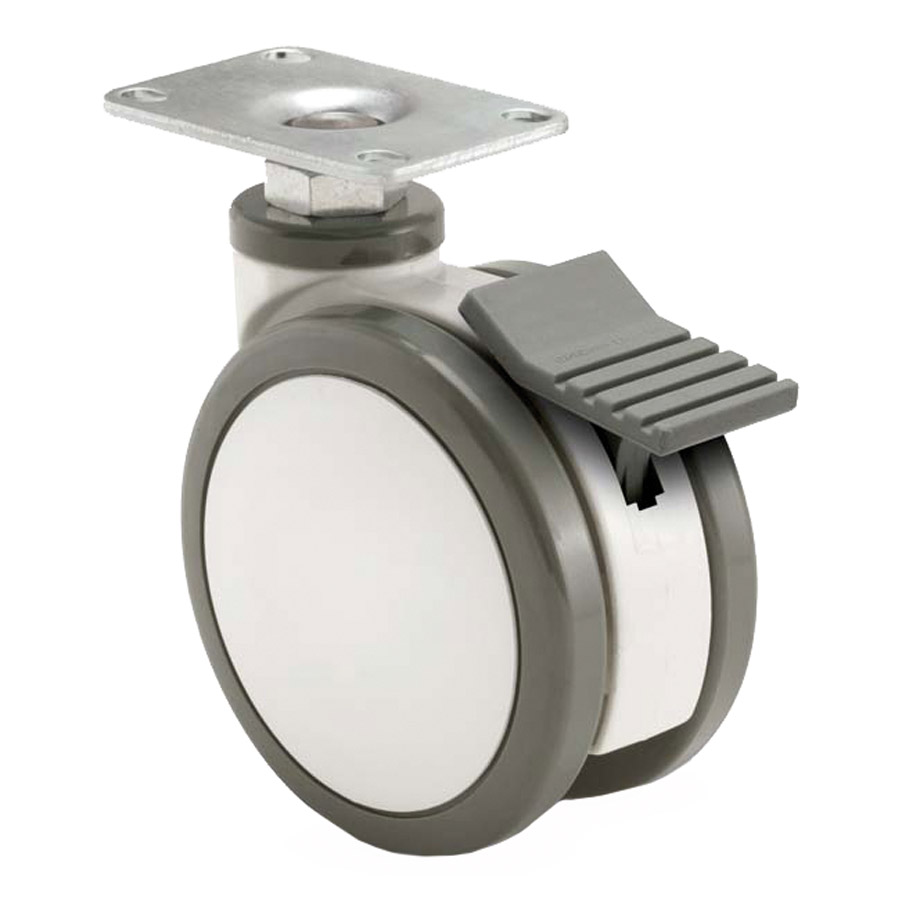

381h 40K075v KPS
On request
Swivel castor with total brake mounted behind 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 105 mm |
| Top plate dimensions | 94X64 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 78/72X45 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
390q 29K100r Z2351 C
On request
Swivel castor with central total brake 100 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 133 mm |
| Offset | 42 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
390q 29K100r Z985 C
On request
Swivel castor with central total brake 100 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 133 mm |
| Offset | 42 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
