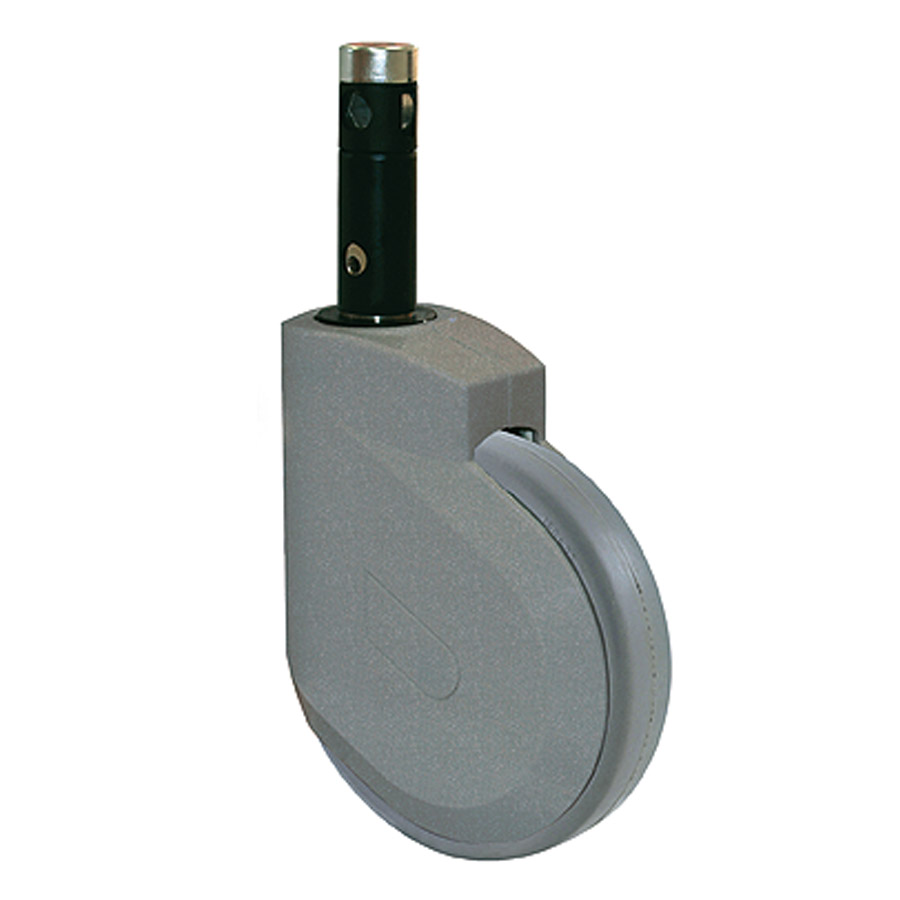

390q 32C125b Z2351 C
Swivel castor with central total brake 125 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 158 mm |
| Offset | 44 mm |
| Load capacity | 100 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables

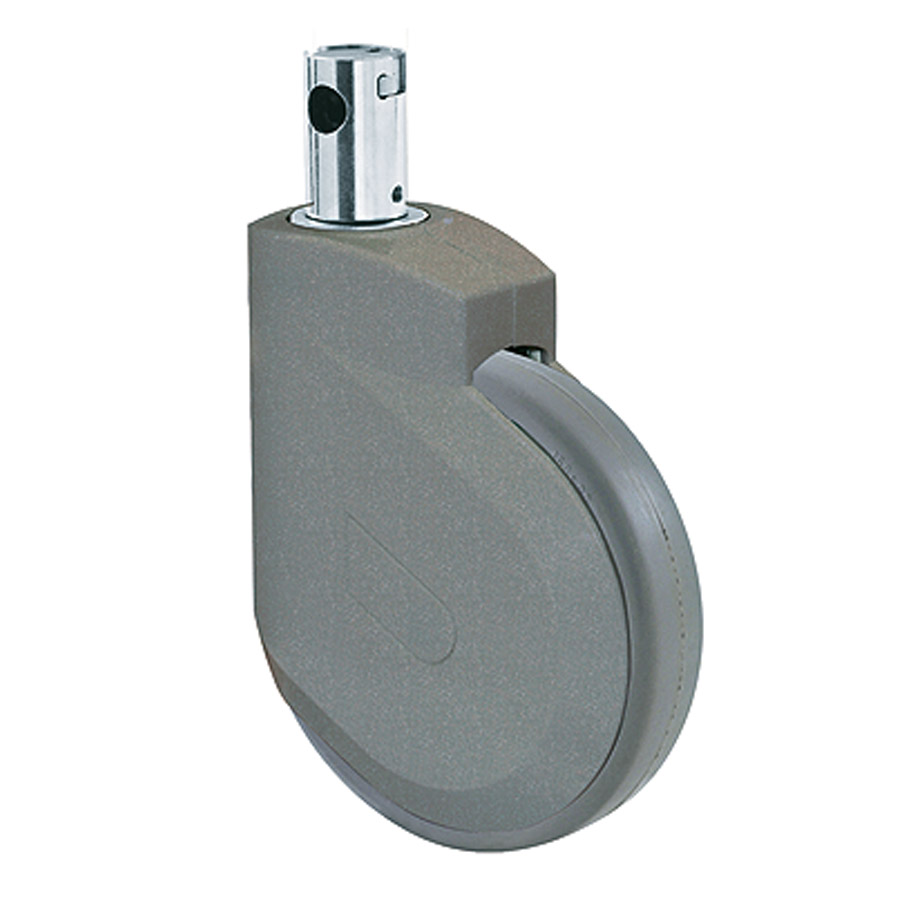

390q 32C125b Z985 C
Swivel castor with central total brake 125 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 158 mm |
| Offset | 44 mm |
| Load capacity | 100 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
390r 32C150b Z2351 CA
Swivel castor with central/directional total brake 150 mm, 110 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 184 mm |
| Offset | 51 mm |
| Load capacity | 110 kg |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical & diagnostic equipment
- medical-technical equipment
- op beds
- op tables

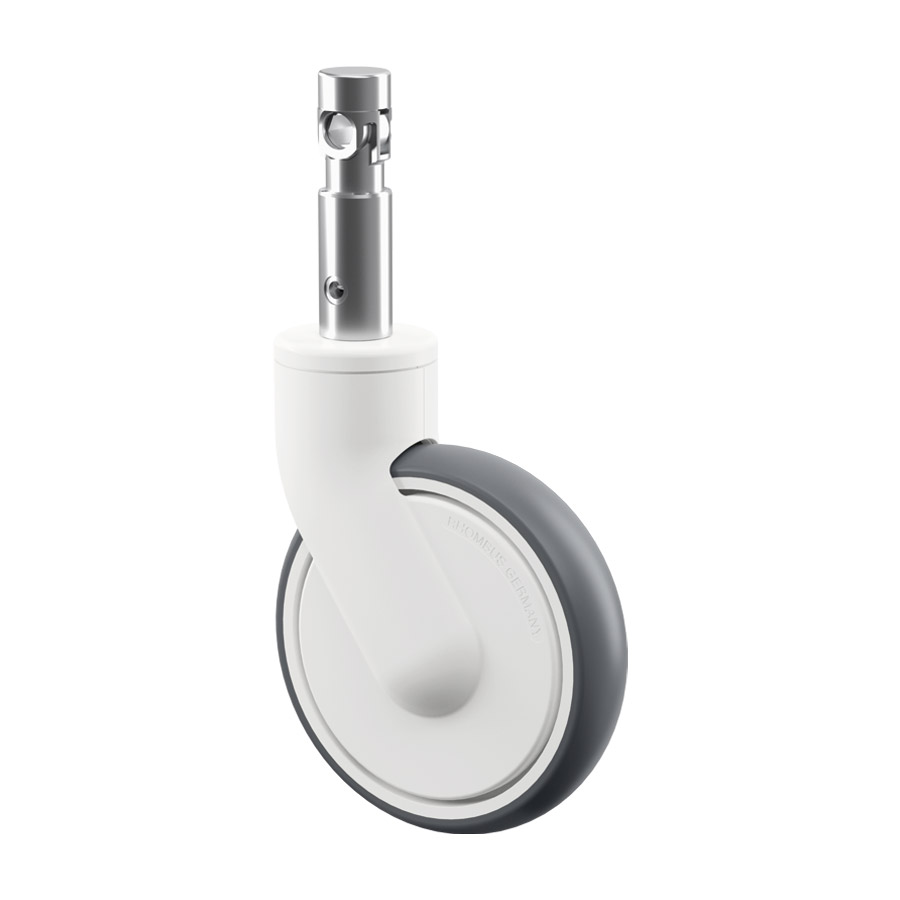

398q 29K150v K2351ZA (PRIMACY)
Swivel castor with central total brake 100 mm - 200 mm, 100 kg - 150 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 150 kg |
| Weight | 1192 g |
Wheel
- thermoplastic polyurethane tyre (TPU) iron grey RAL 7011, Shore A 95 plastic wheel centre and plastic thread guard, silver grey RAL 7001 precision ball bearing
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables

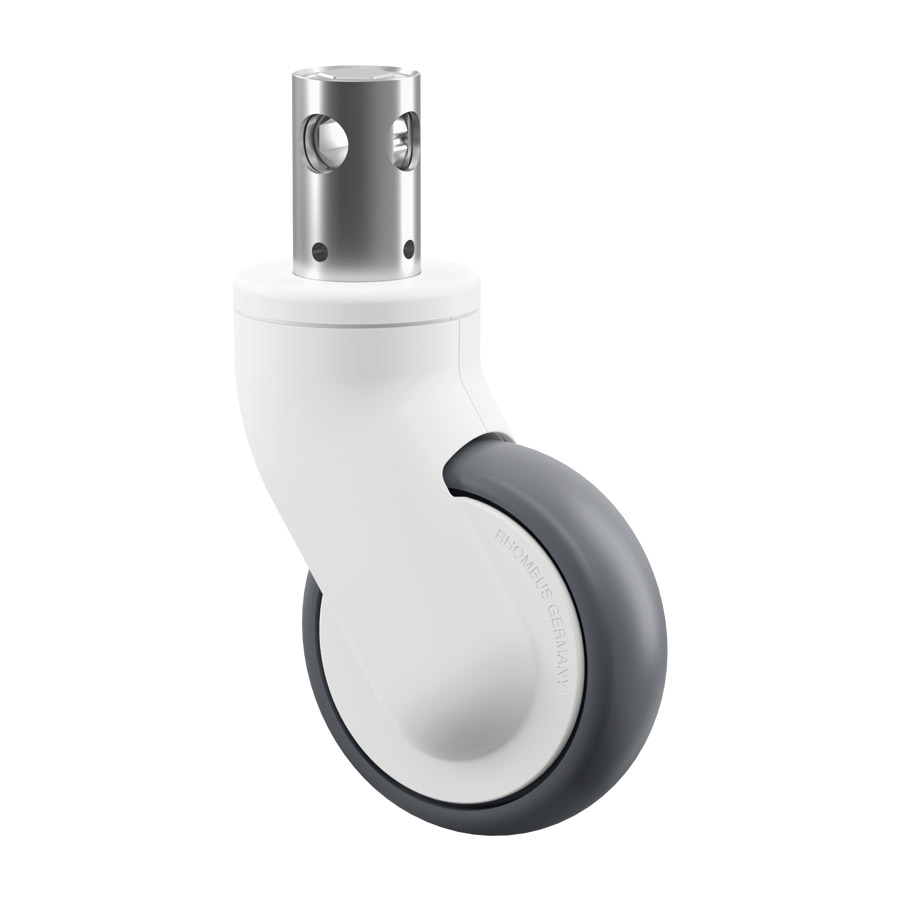

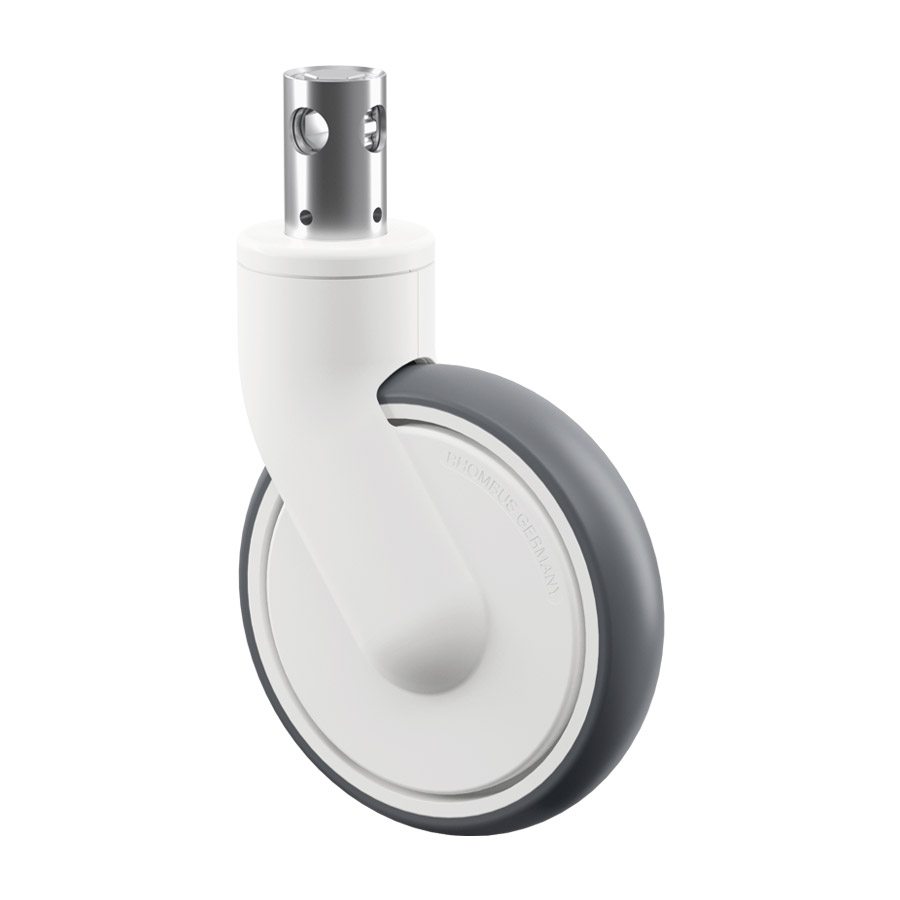

398q 29K150v K985NP (PRIMACY)
Swivel castor with central total brake 100 mm - 200 mm, 100 kg - 150 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 150 kg |
| Weight | 1204 g |
Wheel
- thermoplastic polyurethane tyre (TPU) iron grey RAL 7011, Shore A 95 plastic wheel centre and plastic thread guard, silver grey RAL 7001 precision ball bearing
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
399a 38K150v KPF-FK (NIMBUS)
On request
Swivel castor 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 201 mm |
| Offset | 42 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 80 kg |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover white RAL 9016
- unique design and patented technology
- precision ball bearings in the fork head
Areas of application
- medical equipment
- furniture
399q 38K150v K2351 (NIMBUS)
On request
Swivel castor with central total brake 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 80 kg |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover, optionally in white or metallic
- unique design and patented technology
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
399q 38K150v K985 (NIMBUS)
On request
Swivel castor with central total brake 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 80 kg |
| Weight | 1500 g |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover, optionally in white or metallic
- unique design and patented technology
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables

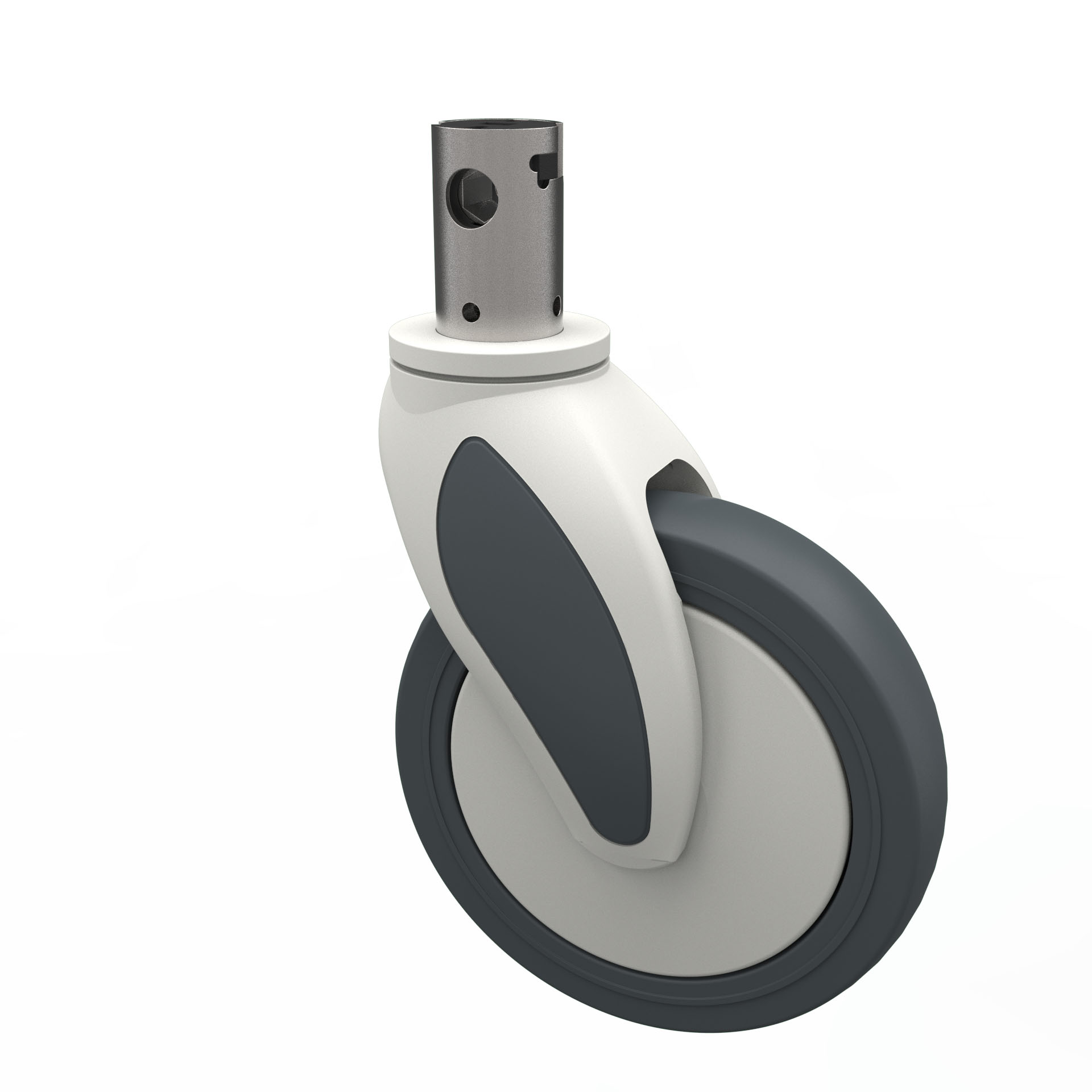

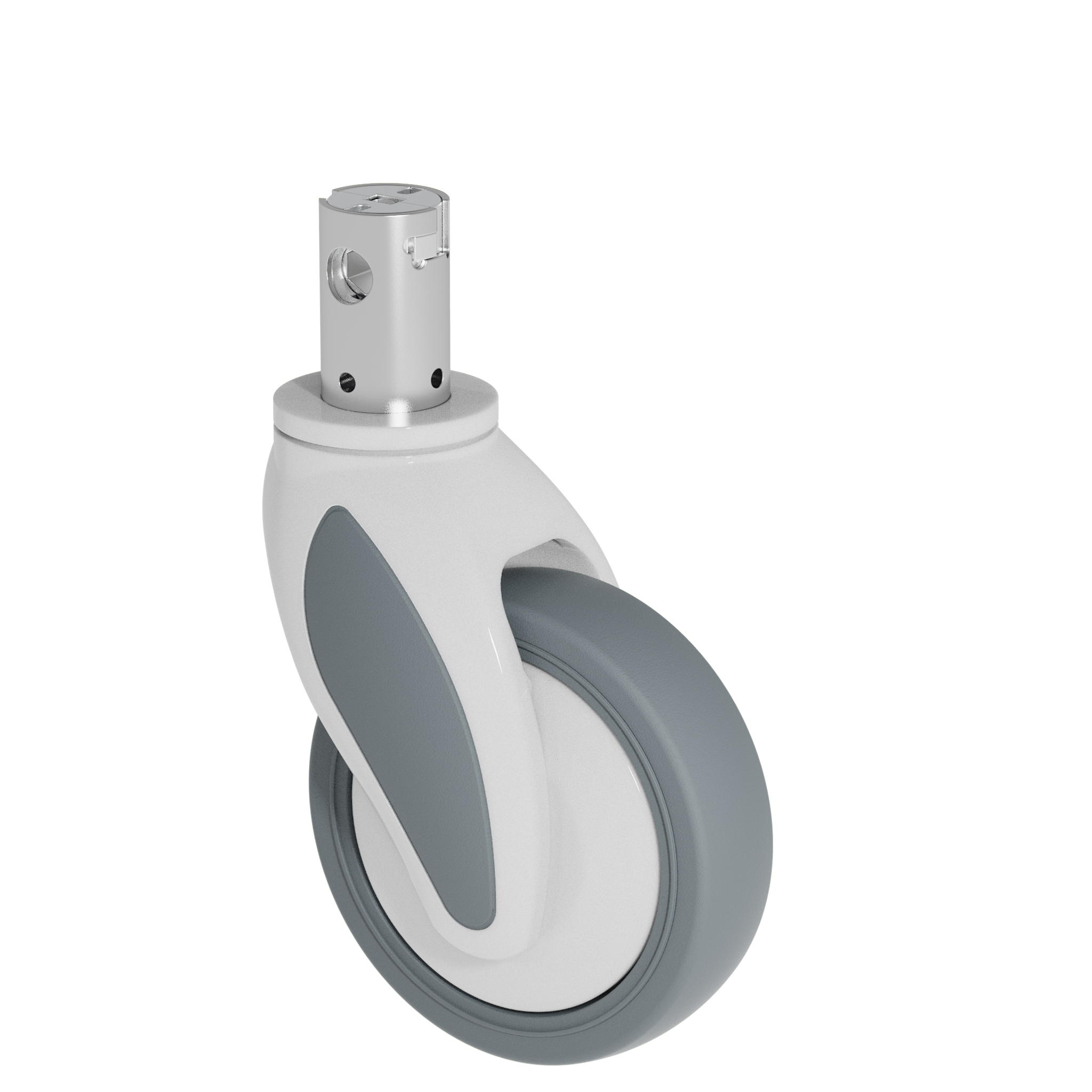

KH2Q-51C-Z985-01 (VIVAX HBC)
Swivel castor with central total brake 125 mm - 150 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 164 mm |
| Offset | 46 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- High-performance plastic housing with steel stem and two ball bearings in swivel head for high load capacities
- smooth selection function
- integrated selection mechanism with total locking brake "q" and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Areas of application
- care beds
- hospital beds
KMF-31C-GM10x20 (VIVAX EasyFit)
Swivel castor with wheel locking brake 75 mm, 70 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 25 mm |
| Height | 105 mm |
| Stem size | 10x20 mm |
| Load capacity | 70 kg |
Wheel
- wheel series 1C
- polypropylen wheel center (similar RAL 7035)
- thermoplastic tyre (TPE, Shore A 87, similar RAL 7012)
- thread guard (similar RAL 7035)
- deep groove ball bearing
- also available with other wheel variants
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon (similar RAL 7035)
- swivel fork head with sealed deep groove ball bearing
- Also available with plate 60x60 & stem for sockets with bore 11 mm
Areas of application
- medical & diagnostic equipment
- electronic equipment
- food transport equipment
- laundry carts
- transport trolleys, etc.
