KML-31C-L11 (VIVAX EasyFit)
Swivel castor 75 mm, 70 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 25 mm |
| Height | 105 mm |
| Bolt hole diameter | 11 mm |
| Load capacity | 70 kg |
KSD-41C-L10 (VIVAX)
Swivel castor with directional lock 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 80 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

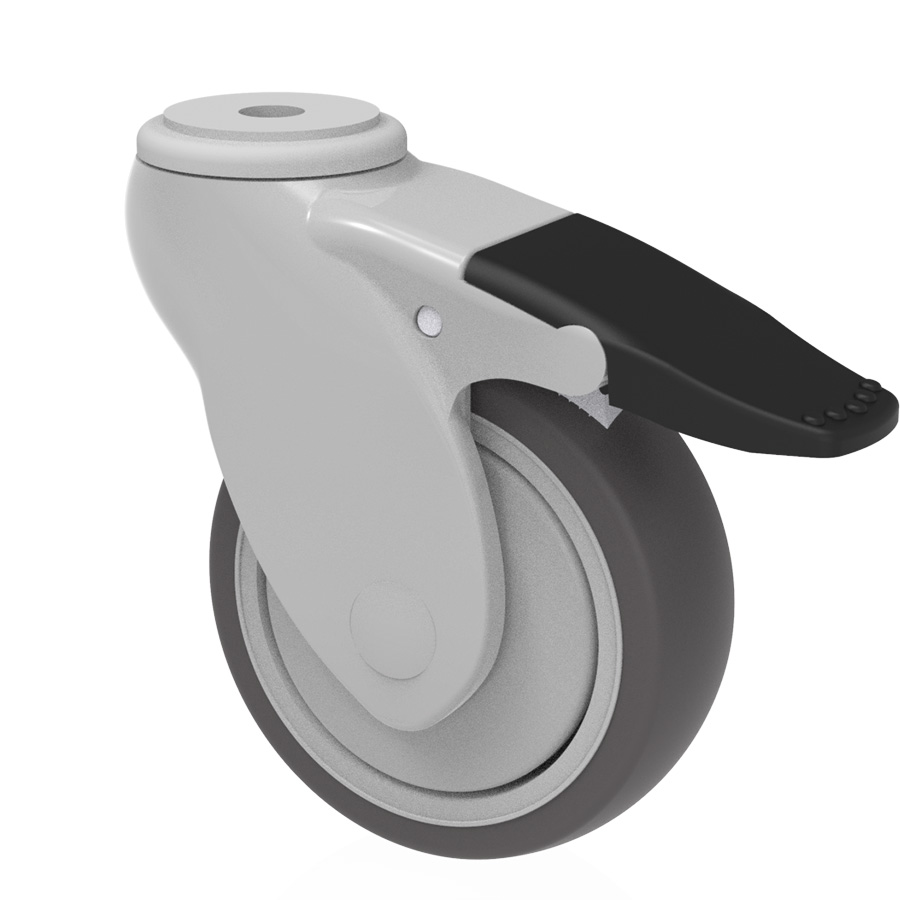

KSD-41C-L12 (VIVAX)
Swivel castor with directional lock 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 80 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-41C-P100 (VIVAX)
Swivel castor with directional lock 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60/76x55 mm |
| Load capacity | 80 kg |
| Weight | 620 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

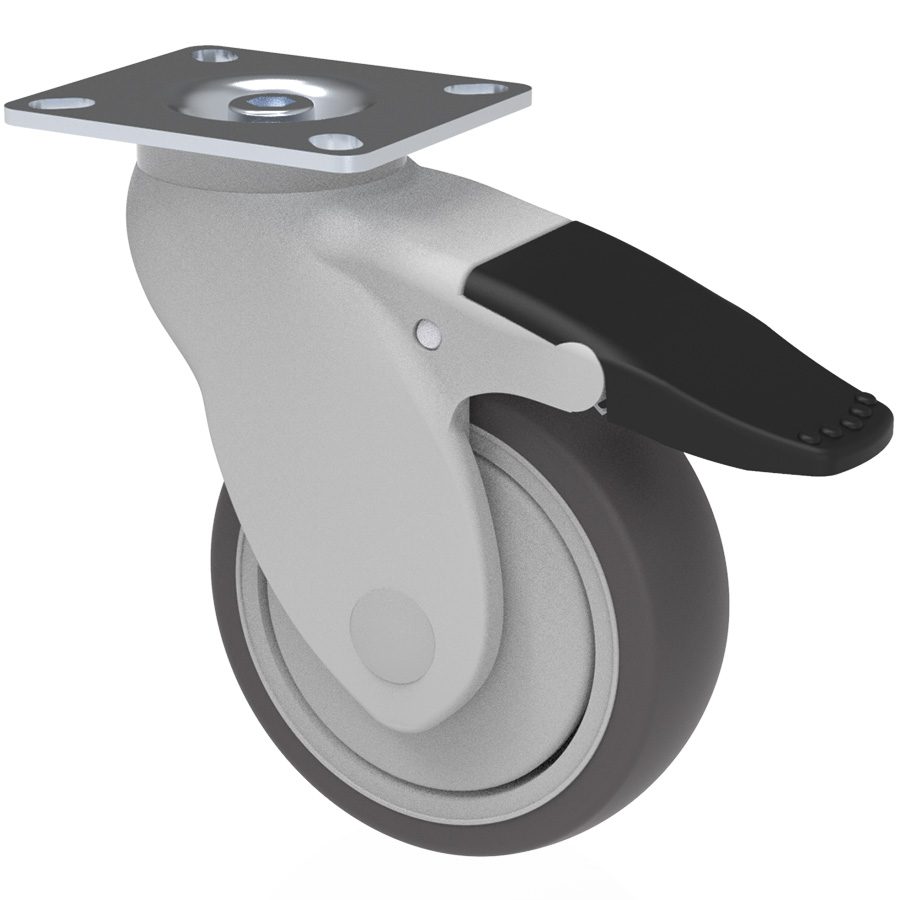

KSD-41C-P77 (VIVAX)
Swivel castor with directional lock 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 80 kg |
| Weight | 590 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-41C-P95 (VIVAX)
Swivel castor with directional lock 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 75x50/72x52 mm |
| Load capacity | 80 kg |
| Weight | 600 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-41C-L10 (VIVAX)
Swivel castor with total brake mounted behind 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 80 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-41C-L12 (VIVAX)
Swivel castor with total brake mounted behind 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 43 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 80 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-41C-P100 (VIVAX)
Swivel castor with total brake mounted behind 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60/76x55 mm |
| Load capacity | 80 kg |
| Weight | 620 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-41C-P77 (VIVAX)
Swivel castor with total brake mounted behind 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 80 kg |
| Weight | 590 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
