Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
WHHS 2003 6035
Wheel 200 mm, 2500 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 48 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 35 mm |
| Load capacity | 2500 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
WHHS 2503 6045
Wheel 250 mm, 4000 kg
Technical data
| Diameter | 250 mm |
| Wheel width | 60 mm |
| Hub length | 70 mm |
| Wheel axle diameter | 45 mm |
| Load capacity | 4000 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
WHHS 3003 6060
Wheel 300 mm, 7000 kg
Technical data
| Diameter | 300 mm |
| Wheel width | 72 mm |
| Hub length | 90 mm |
| Wheel axle diameter | 60 mm |
| Load capacity | 7000 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
WHHS 4003 6080
Wheel 400 mm, 9000 kg
Technical data
| Diameter | 400 mm |
| Wheel width | 72 mm |
| Hub length | 90 mm |
| Wheel axle diameter | 80 mm |
| Load capacity | 9000 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
WHNS 180/210
Wheel 180 mm, 2700 kg
Technical data
| Diameter | 180 mm |
| Wheel width | 45 mm |
| Hub length | 72 mm |
| Wheel axle diameter | 50 mm |
| Load capacity | 2700 kg |
| Weight | 8 kg |
Wheel
- Single flanged wheel of chromium cast iron GGG 40
WHPA 0802 5080
Wheel 80 mm - 125 mm, 180 kg - 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 180 kg |
| Weight | 0.2 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 92) and one deep groove ball bearing
WHPB 0802 5080
Wheel 80 mm - 125 mm, 150 kg - 200 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 150 kg |
| Weight | 0.3 kg |
Wheel
- Polyamide wheel with blue rubber tyre
- (Shore A 70) with one deep groove ball bearing
WHPC 0802 7080
Wheel 80 mm - 125 mm, 80 kg - 150 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 80 kg |
| Weight | 0.12 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with one stainless steel deep groove ball bearing
WHPC 1603 6443
Wheel 160 mm - 200 mm, 200 kg - 250 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 200 kg |
| Weight | 0.96 kg |
Wheel
- Dark grey Polypropyleene wheel with grey antistatic rubber tyre
- (Performa, Shore A 65 - 70) with two steel deep groove ball bearings

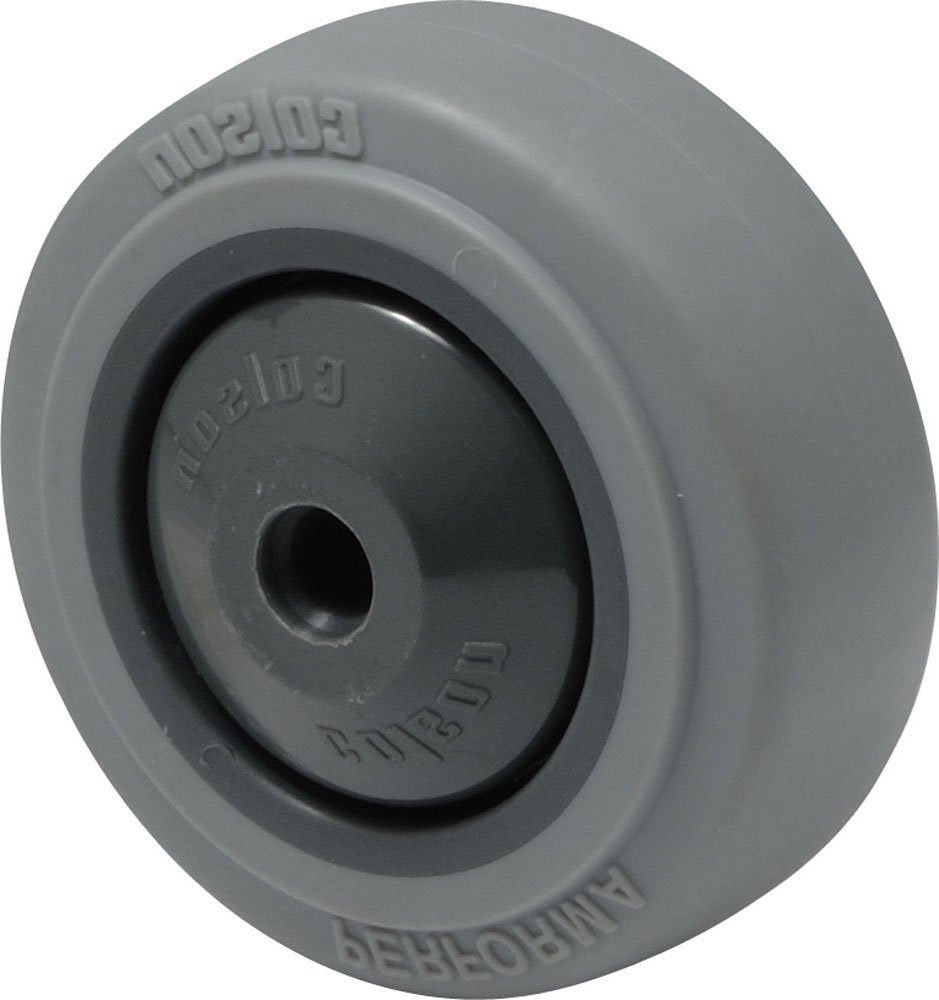

WHPF 0802 5080
Wheel 80 mm, 120 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 120 kg |
| Weight | 0.2 kg |
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
