Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
WHAB 1253 6440
Wheel 125 mm - 250 mm, 220 kg - 550 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Wheel axle diameter | 20/12 mm |
| Load capacity | 220 kg |
| Weight | 1 kg |
Wheel
- Aluminium wheels with black rubber tyre AB
- 72° Shore A
- With two deep groove ball bearings 6204
WHAU 1002 6150
Wheel 100 mm - 125 mm, 200 kg - 300 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 15/8 mm |
| Load capacity | 200 kg |
| Weight | 0.5 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
WHAU 1253 6440
Wheel 125 mm - 200 mm, 450 kg - 800 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Wheel axle diameter | 20/12 mm |
| Load capacity | 450 kg |
| Weight | 0.9 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
WHAU 2503 6550
Wheel 250 mm, 1000 kg
Technical data
| Diameter | 250 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Wheel axle diameter | 25/12 mm |
| Load capacity | 1000 kg |
| Weight | 2.3 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
WHCN 0803 6151
Wheel 80 mm - 100 mm, 250 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 250 kg |
| Weight | 0.8 kg |
Wheel

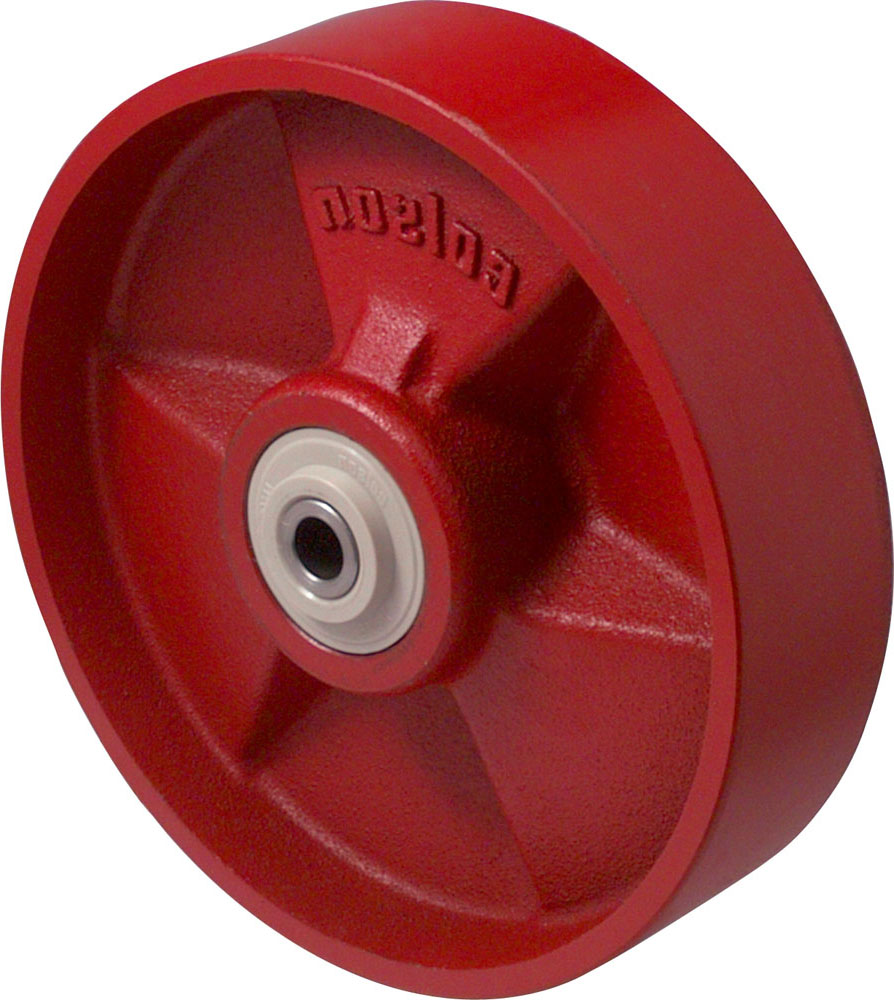

- Cast iron wheel with two deep groove ball bearings
WHCN 1253 6441
Wheel 125 mm - 250 mm, 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 1000 kg |
| Weight | 2.5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
WHCN 1253 6551
Wheel 125 mm - 250 mm, 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 1000 kg |
| Weight | 2.5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
WHCN 1253 6551/N=60
Wheel 125 mm - 250 mm, 1000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 1000 kg |
| Weight | 2.5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
WHCN 1603 6443
Wheel 160 mm, 1000 kg
Technical data
| Diameter | 160 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 1000 kg |
| Weight | 3.3 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
WHCN 3503 6662
Wheel 350 mm, 2200 kg
Technical data
| Diameter | 350 mm |
| Wheel width | 70 mm |
| Hub length | 78 mm |
| Wheel axle diameter | 30 mm |
| Load capacity | 2200 kg |
| Weight | 16 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
