Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
WHCV 0803 6151
Wheel 80 mm - 100 mm, 210 kg - 350 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 210 kg |
| Weight | 0.6 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6443
Wheel 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6553
Wheel 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 1253 6553/N=60
Wheel 125 mm - 250 mm, 500 kg - 1100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 500 kg |
| Weight | 1.7 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 3103 6662
Wheel 310 mm, 1500 kg
Technical data
| Diameter | 310 mm |
| Wheel width | 60 mm |
| Hub length | 78 mm |
| Wheel axle diameter | 30 mm |
| Load capacity | 1500 kg |
| Weight | 9.5 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHCV 3503 6662
Wheel 350 mm - 400 mm, 2000 kg - 2400 kg
Technical data
| Diameter | 350 mm |
| Wheel width | 70 mm |
| Hub length | 78 mm |
| Wheel axle diameter | 30 mm |
| Load capacity | 2000 kg |
| Weight | 14.5 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
WHHN 0702 6152
Wheel 70 mm - 100 mm, 160 kg - 250 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 160 kg |
| Weight | 0.25 kg |
Wheel
- Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties Temperature resistance -40°C to + 300 °C with two deep groove ball bearings

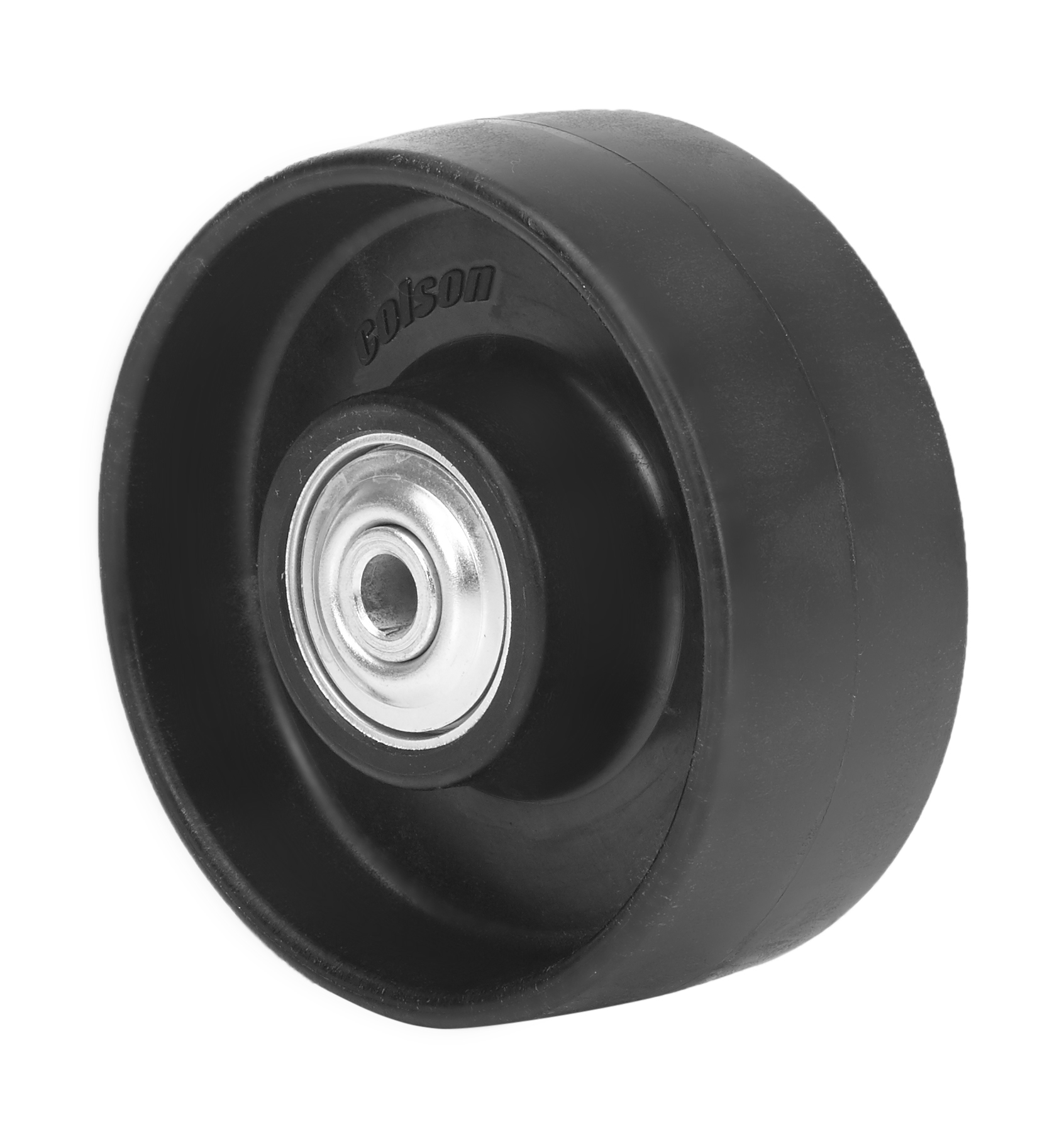

WHHN 1002 6152/HN
Wheel 100 mm, 240 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 240 kg |
| Weight | 0.4 kg |
Wheel
- Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties and grease nipple Temperature resistance -40 °C to + 300 °C with two deep groove ball bearings
WHHS 0503 6030
Wheel 50 mm, 500 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 30 mm |
| Hub length | 40 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 500 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
WHHS 0753 6030
Wheel 75 mm, 800 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Hub length | 40 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 800 kg |
Wheel
- Single flanged wheels in special hardened steel, with two ball bearings, hardness from 180 to 230 HB, high static and dynamic load capacity and a high abrasion resistance.
