Apparatus Castors
Whether in the small neighbourhood bistro, the hotel or the large canteen, the demands on people and equipment have grown. So it is important that the work can be handled with ease, for satisfied guests and contented workers.
It is a good thing the solid and robust castors from RHOMBUS also play their part with ease, because cooking equipment, food dispensers and other appliances have been mounted on them for years. RHOMBUS serves them fresh from the factory.
361a 34C075v GPS
Swivel castor 75 mm, 100 kg
Technical data
| Diameter | 75 mm |
| Tread width | 2x23 mm |
| Height | 102 mm |
| Offset | 28,5 mm |
| Top plate dimensions | 55x70 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 51/57x41 mm |
| Load capacity | 100 kg |
Wheel
- polyurethane tyre iron grey RAL 7011 (Shore A 95)
- plastic wheel centre and plastic thread guard silver grey RAL 7001
- ball bearing
Technical description
- sheet steel metal housing
- with double ball race
- yellow chrome plated
Areas of application
- catering trolleys
- computer furniture
- dustbins
- file carts
- occasional carts
- housekeeping carts
- food transport equipment
- sport equipment
- sales stands
- laundry carts
- newspaper dispensers
- display stands
- restaurant areas
- brochure display stands
- deep freezer
- refrigerator
- small furniture
- photocopiers
- shop fittings
361b 33C075p ZPS
Swivel castor with wheel locking brake 75 mm, 100 kg
Technical data
| Diameter | 75 mm |
| Tread width | 2x23 mm |
| Height | 102 mm |
| Offset | 28,5 mm |
| Top plate dimensions | 55x70 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 51/57x41 mm |
| Load capacity | 100 kg |
Wheel
- solid rubber tyre blue-grey with profile (Shore A 80)
- plastic wheel centre grey
- metal thread guard zinc-passivated
- flange bearing
Technical description
- sheet steel metal housing
- with double ball race
- zinc passivated
Areas of application
- catering trolleys
- computer furniture
- dustbins
- file carts
- occasional carts
- housekeeping carts
- food transport equipment
- sport equipment
- sales stands
- laundry carts
- newspaper dispensers
- display stands
- restaurant areas
- brochure display stands
- deep freezer
- refrigerator
- small furniture
- photocopiers
- shop fittings
361b 34C075v GPS
Swivel castor with wheel locking brake 75 mm, 100 kg
Technical data
| Diameter | 75 mm |
| Tread width | 2x23 mm |
| Height | 102 mm |
| Offset | 28,5 mm |
| Top plate dimensions | 55x70 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 51/57x41 mm |
| Load capacity | 100 kg |
| Weight | 655 g |
Wheel
- polyurethane tyre iron grey RAL 7011 (Shore A 95)
- plastic wheel centre and plastic thread guard silver grey RAL 7001
- ball bearing
Technical description
- sheet steel metal housing
- with double ball race
- yellow chrome plated
Areas of application
- catering trolleys
- computer furniture
- dustbins
- file carts
- occasional carts
- housekeeping carts
- food transport equipment
- sport equipment
- sales stands
- laundry carts
- newspaper dispensers
- display stands
- restaurant areas
- brochure display stands
- deep freezer
- refrigerator
- small furniture
- photocopiers
- shop fittings
362a 29K100r ZLD
Swivel castor 100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 130 mm |
| Offset | 37 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
| Weight | 564 g |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- cleaning equipment
- display stands
- restaurant areas
- laundry carts
- food transport equipment
- catering trolleys
- housekeeping carts
- shopping trolleys
- dustbins
- wet and dry vaccum cleaners
- brochure display stands
- sales stands
362a 32C100b ZLD
Swivel castor 100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Tread width | 30 mm |
| Height | 130 mm |
| Offset | 37 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 80 kg |
| Weight | 779 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Technical description
- sheet steel metal
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- cleaning equipment
- display stands
- restaurant areas
- laundry carts
- food transport equipment
- catering trolleys
- housekeeping carts
- shopping trolleys
- dustbins
- wet and dry vaccum cleaners
- brochure display stands
- sales stands

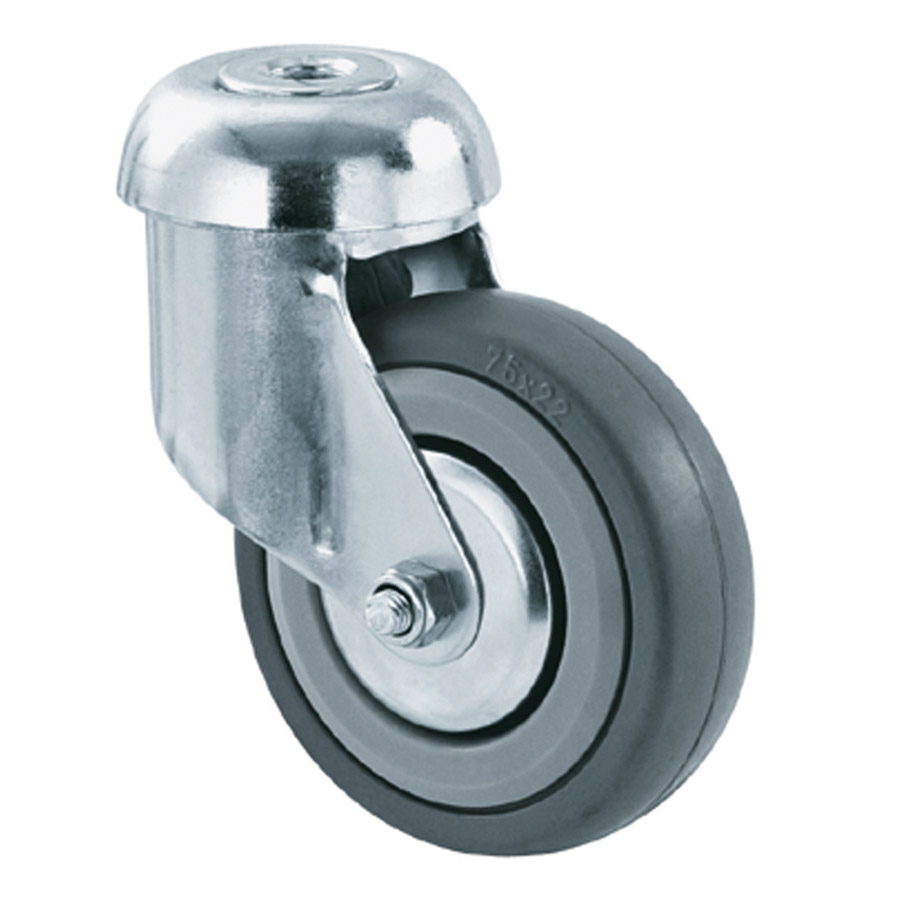

362a 33C075b ZLC
Swivel castor 75 mm, 55 kg
Technical data
| Diameter | 75 mm |
| Tread width | 23 mm |
| Height | 100 mm |
| Offset | 30 mm |
| Bolt hole diameter | 10,2 mm |
| Load capacity | 55 kg |
| Weight | 326 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- plastic wheel centre grey
- metal thread guard zinc-passivated (from Ø 75 mm)
- flange bearing
- Attention: wheel in Ø 50 mm riveted!
Technical description
- sheet steel metal
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- cleaning equipment
- display stands
- restaurant areas
- laundry carts
- food transport equipment
- catering trolleys
- housekeeping carts
- shopping trolleys
- dustbins
- wet and dry vaccum cleaners
- brochure display stands
- sales stands
362a 33G075b ZLC
Swivel castor 75 mm, 55 kg
Technical data
| Diameter | 75 mm |
| Tread width | 23 mm |
| Height | 100 mm |
| Offset | 30 mm |
| Bolt hole diameter | 10,2 mm |
| Load capacity | 55 kg |
| Weight | 283 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- plastic wheel centre grey
- plain bearing
- Attention: wheel in Ø 50 mm riveted!
Technical description
- sheet steel metal
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- Shopping trolleys
- brochure display stands
- catering trolleys
- cleaning equipment
- display stands
- dustbins
- food transport equipment
- housekeeping carts
- restaurant areas
- sales stands
- tripods
- waste containers
362a 36K125b ZLD
Swivel castor 125 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 155 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
| Weight | 720 g |
Wheel
- solid rubber tyre iron-grey RAL 7011 (Shore A 80)
- plastic wheel centre and plastic thread guard silver grey RAL 7001
- precision ball bearing
Technical description
- sheet steel metal
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- cleaning equipment
- display stands
- restaurant areas
- laundry carts
- food transport equipment
- catering trolleys
- housekeeping carts
- shopping trolleys
- dustbins
- wet and dry vaccum cleaners
- brochure display stands
- sales stands
363b 62C125v ZLD
Swivel castor with wheel locking brake 125 mm, 60 kg
Technical data
| Diameter | 125 mm |
| Height | 150 mm |
| Offset | 43 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 60 kg |
| Weight | 838 g |
Wheel
- polyamid differential wheel with raceway of polyurethane
- black hard rubber brake ring
- ball bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- Shopping trolleys
- (autowalk)
363b 810 7575-1
Swivel castor with wheel locking brake 125 mm, 60 kg
Technical data
| Diameter | 125 mm |
| Height | 150 mm |
| Offset | 43 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 60 kg |
| Weight | 644 g |
Wheel
- polyamid differential wheel with raceway of polyurethane
- black hard rubber brake ring
- ball bearing
Technical description
- sheet steel metal housing
- swivel bearing with double ball race
- zinc passivated
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with threaded (ZGI) and flat pin (ZCS)
Areas of application
- Shopping trolleys
- (autowalk)
