Wheels & Accessories

The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.

Wheel 80 mm - 125 mm, 150 kg

Technical data

Diameter 125 mm
Wheel width 35 mm
Hub length 50 mm
Wheel axle diameter 10 mm
Load capacity 150 kg
Weight 0.2 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with polyurethane tyre
  • (80° Shore A) with one deep groove stainless steel ball bearing
WPPU 1603 2000

Wheel 160 mm - 200 mm, 300 kg - 250 kg

Technical data

Diameter 160 mm
Wheel width 40 mm
Hub length 60 mm
Wheel axle diameter 20 mm
Load capacity 300 kg
Weight 0.6 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with polyurethane tyre
  • (Shore A 96) and roller bearing
WPPU 1603 2001

Wheel 160 mm - 200 mm, 220 kg

Technical data

Diameter 160 mm
Wheel width 40 mm
Hub length 60 mm
Wheel axle diameter 20 mm
Load capacity 220 kg
Weight 0.8 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with polyurethane tyre
  • (Shore A 96) and roller bearing
WPRB 0802 5080

Wheel 80 mm - 100 mm, 150 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 42 mm
Wheel axle diameter 8 mm
Load capacity 150 kg
Weight 0.3 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with black rubber tyre
  • (Shore A 65) with one deep groove ball bearing
WPRB 1252 5100

Wheel 125 mm, 150 kg

Technical data

Diameter 125 mm
Wheel width 35 mm
Hub length 48 mm
Wheel axle diameter 10 mm
Load capacity 150 kg
Weight 0.5 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with black rubber tyre
  • (Shore A 65) with one deep groove ball bearing
WPRG 0802 5080

Wheel 80 mm - 100 mm, 150 kg

Technical data

Diameter 80 mm
Wheel width 35 mm
Hub length 42 mm
Wheel axle diameter 8 mm
Load capacity 150 kg
Weight 0.3 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with grey rubber tyre
  • (Shore A 65) with one deep groove ball bearing
WPRG 1252 5100

Wheel 125 mm, 150 kg

Technical data

Diameter 125 mm
Wheel width 35 mm
Hub length 48 mm
Wheel axle diameter 10 mm
Load capacity 150 kg
Weight 0.5 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with grey rubber tyre
  • (Shore A 65) with one deep groove ball bearing

Wheel 80 mm - 200 mm, 50 kg - 200 kg

Technical data

Diameter 80 mm
Wheel width 25 mm
Hub length 40 mm
Wheel axle diameter 12 mm
Load capacity 50 kg
Weight 0.2 kg
Reach compliant Rohs compliant

Wheel

  • Pressed sheetsteel wheel with grey rubber tyre
  • (Shore A 85) and roller bearing

Wheel 80 mm - 200 mm, 50 kg - 200 kg

Technical data

Diameter 80 mm
Wheel width 25 mm
Hub length 40 mm
Wheel axle diameter 12 mm
Load capacity 50 kg
Weight 0.3 kg
Reach compliant Rohs compliant

Wheel

  • Pressed sheetsteel wheel with grey rubber tyre
  • (Shore A 85) and roller bearing

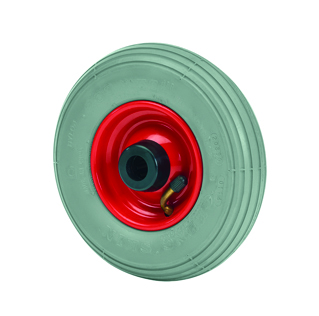

WPSL20032000GR

Wheel 200 mm, 20 kg

Technical data

Diameter 200 mm
Wheel width 50 mm
Hub length 60 mm
Wheel axle diameter 20 mm
Threaded stem size 75 mm
Load capacity 20 kg
