Transport Appliance Castors

The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from RHOMBUS are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.

BPPB 1005 5000
BPPB 1005 5000

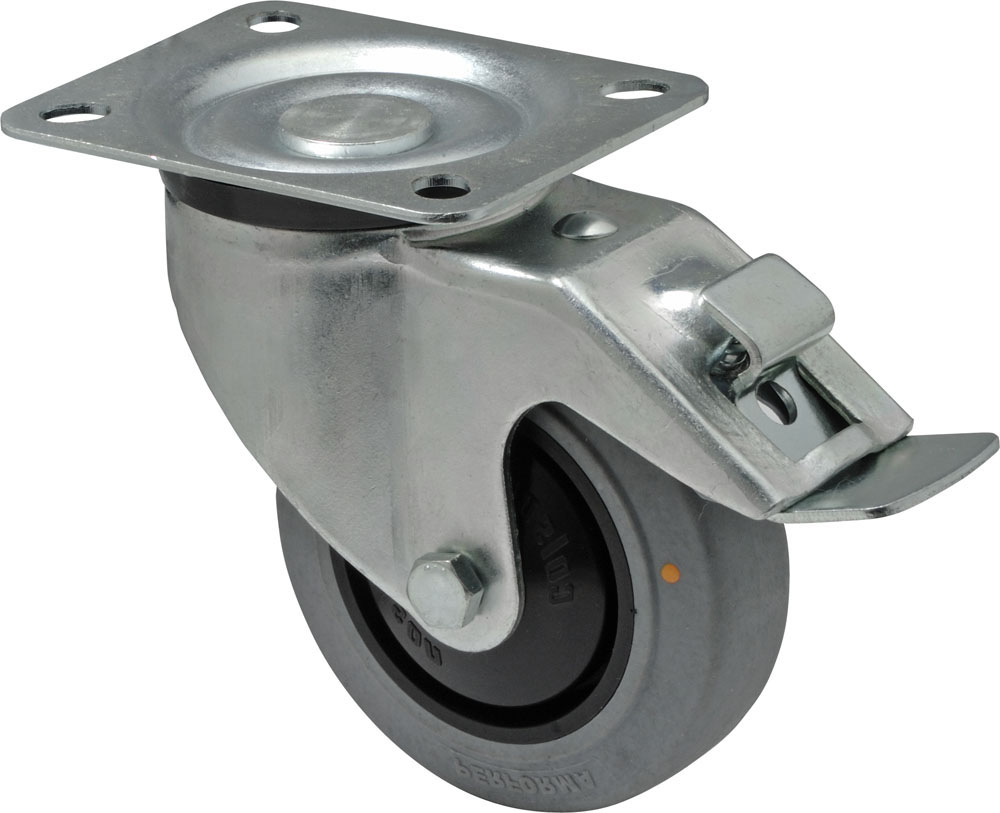

Swivel castor with total brake mounted behind 80 mm - 125 mm, 150 kg

Technical data

Diameter 100 mm
Wheel width 35 mm
Hub length 42 mm
Height 128 mm
Offset 34 mm
Bolt hole diameter 12 mm
Brake swivel radius 128 mm
Load capacity 150 kg
Weight 1.1 kg
Reach compliant Rohs compliant

Wheel

  • Polyamide wheel with blue rubber tyre
  • (Shore A 70) with one deep groove ball bearing

Technical description

  • Swivel fork of deep drawn zinc-coated steel,
  • swivel bearing with double ball race way and sealring (excluded the bolt hole fixing plate) with a total lock brake
