Medical Equipment Castors
Sometimes it’s a matter of seconds – the right medication, the appropriate team, and the necessary luck. Fine, at times like this you need the reassurance that the castors from RHOMBUS are dependable. We deliver our promises: quiet operation, load-bearing capacity, safety and long product life.
Sometimes it’s a matter of seconds – the right medication, the appropriate team, and the necessary luck. Fine, at times like this you need the reassurance that the castors from RHOMBUS are dependable. We deliver our promises: quiet operation, load-bearing capacity, safety and long product life.
367a 29K080r ZPF
Swivel castor 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 117 mm |
| Offset | 43,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 100 kg |
| Weight | 691 g |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367a 29K080r ZR
Swivel castor 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 111 mm |
| Offset | 43,5 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367a 31CA-32 ZLD
Swivel castor 80 mm - 100 mm, 100 kg
Technical data
| Diameter | 80 mm |
| Tread width | 32 mm |
| Height | 110 mm |
| Offset | 43,5 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
| Weight | 545 g |
Wheel
- TPE tread electr.-conductive (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- Laundry carts
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchen equipment
- industrial kitchens
- laundry
- medical equipment
- medical-technical equipment
- newspaper dispensers
- occasional carts
- restaurant area
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
- waste containers
367h 29K080r Z522
Swivel castor with total brake mounted behind 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 112 mm |
| Offset | 43,5 mm |
| Stem size | 24x45 M8/19 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367h 29K080r ZLD
Swivel castor with total brake mounted behind 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 110 mm |
| Offset | 43,5 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
| Weight | 630 g |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367h 29K080r ZPF
Swivel castor with total brake mounted behind 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 117 mm |
| Offset | 43,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 100 kg |
| Weight | 772 g |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367h 29K080r ZR
Swivel castor with total brake mounted behind 80 mm - 200 mm, 100 kg - 120 kg
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 111 mm |
| Offset | 43,5 mm |
| Load capacity | 100 kg |
Wheel
- thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
- plastic wheel centre and thread guard silver grey RAL7001
- precision ball bearing
- Contact discoloration on unsealed grounds possible!>>
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
367h 31CA-32 ZLD
Swivel castor with total brake mounted behind 80 mm - 100 mm, 100 kg
Technical data
| Diameter | 80 mm |
| Tread width | 32 mm |
| Height | 110 mm |
| Offset | 43,5 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 100 kg |
| Weight | 630 g |
Wheel
- TPE tread electr.-conductive (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Areas of application
- Laundry carts
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchen equipment
- industrial kitchens
- laundry
- medical equipment
- medical-technical equipment
- newspaper dispensers
- occasional carts
- restaurant area
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
- waste containers
381a 40K075v KGD
On request
Swivel castor 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 95 mm |
| Threaded stem size | M12x25 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel
- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
381a 40K075v KPS
On request
Swivel castor 75 mm - 125 mm, 75 kg - 110 kg
Technical data
| Diameter | 75 mm |
| Tread width | 59/2x10 mm |
| Height | 105 mm |
| Top plate dimensions | 94X64 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 78/72X45 mm |
| Load capacity | 75 kg |
Technical description
- plastic castor
- wheels have easy rollability
- the design protects axle / bearing areas from hair / water
- total lock models lock both the wheel and swivel

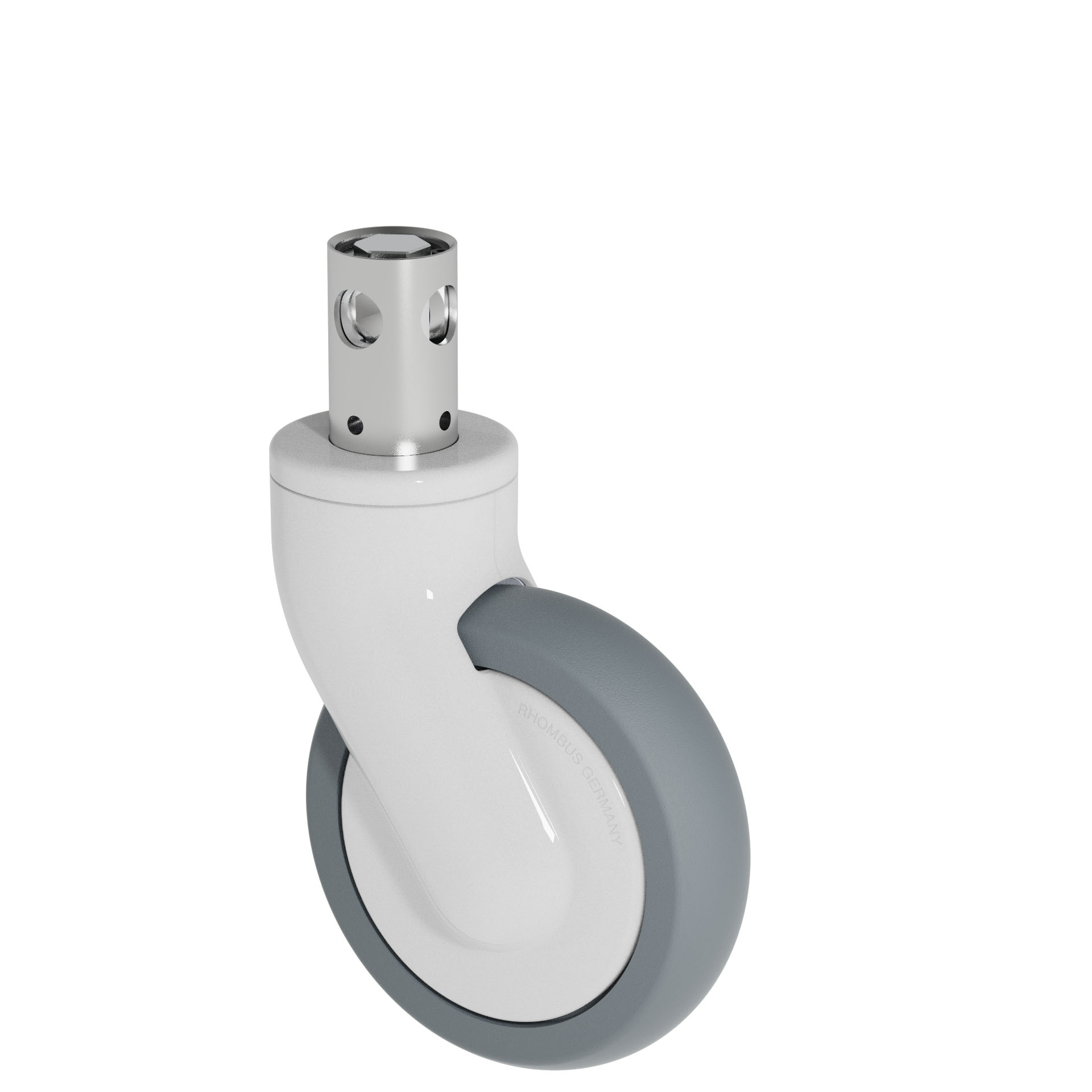

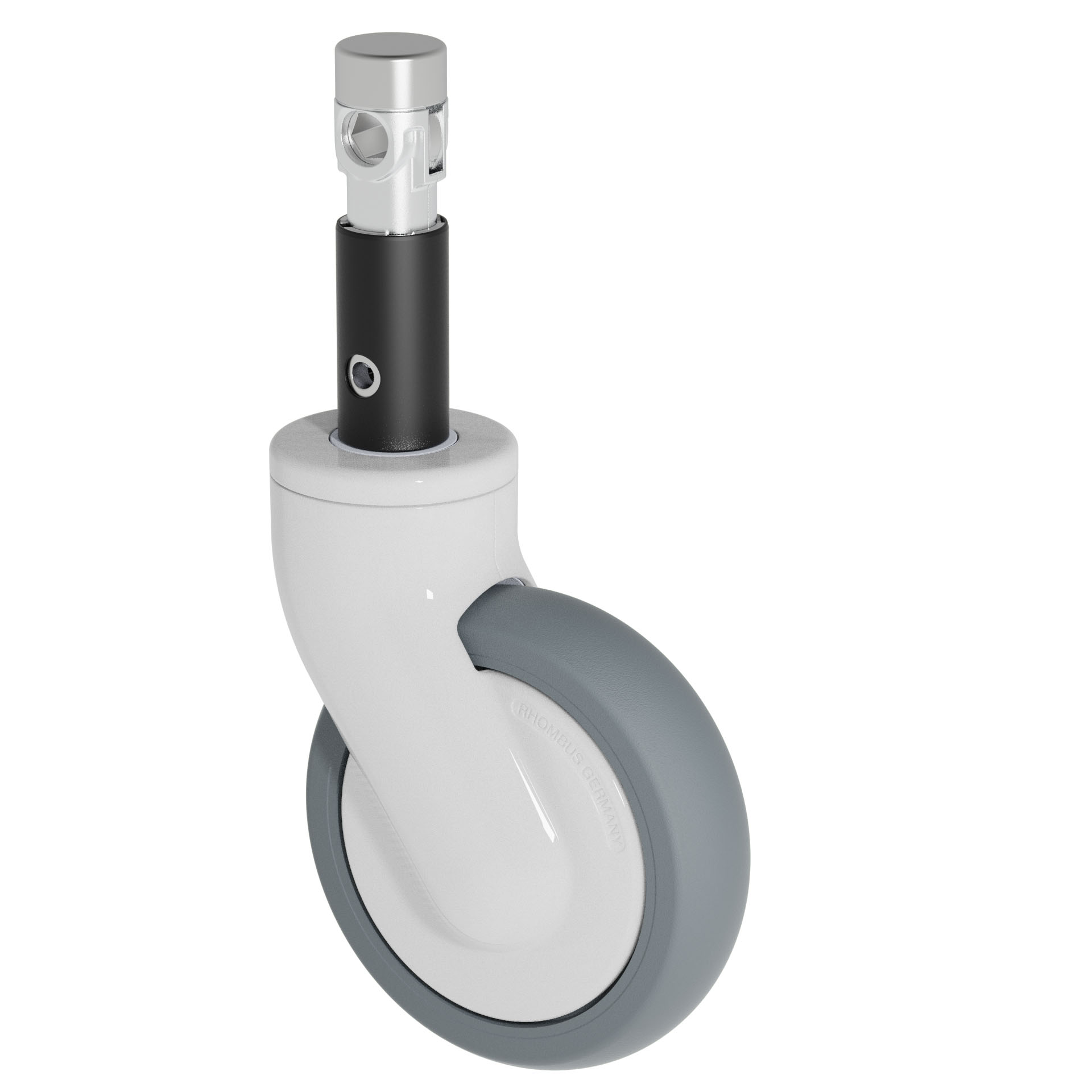

- also available wheel diameter 125 mm with fixing pin K622 (28x45 mm)
Areas of application
- diagnostic equipment
- electronic equipment
- medical equipment
- care beds
- patient lifts
