Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
WHRN 1253 6443
Wheel 125 mm - 200 mm, 490 kg - 650 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 490 kg |
| Weight | 0.5 kg |
Wheel
- Glass fibre reinforced polyamide wheel
WHRN 1253 6553
Wheel 125 mm - 200 mm, 490 kg - 650 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 490 kg |
| Weight | 0.7 kg |
Wheel
- Glass fibre reinforced polyamide wheel
WHRN 1253 6553/N=60
Wheel 125 mm - 200 mm, 490 kg - 650 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 60 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 490 kg |
| Weight | 0.5 kg |
Wheel
- Glass fibre reinforced polyamide wheel

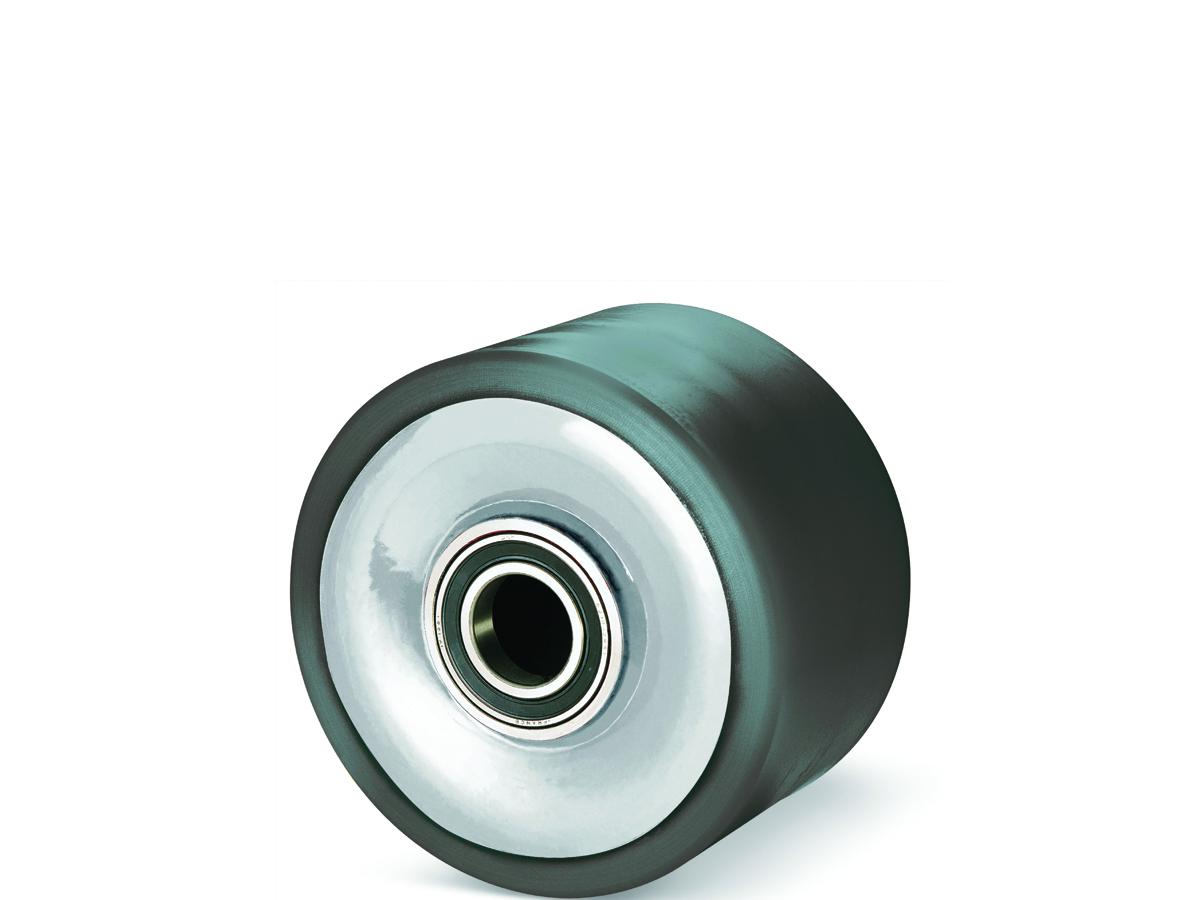

WHSB 2003 61025
Wheel 200 mm - 400 mm, 1200 kg - 1800 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 100 mm |
| Hub length | 100 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 1200 kg |
Wheel
- wheels with welded steel core
- - vulcanized rubber tyre 76 Shore A

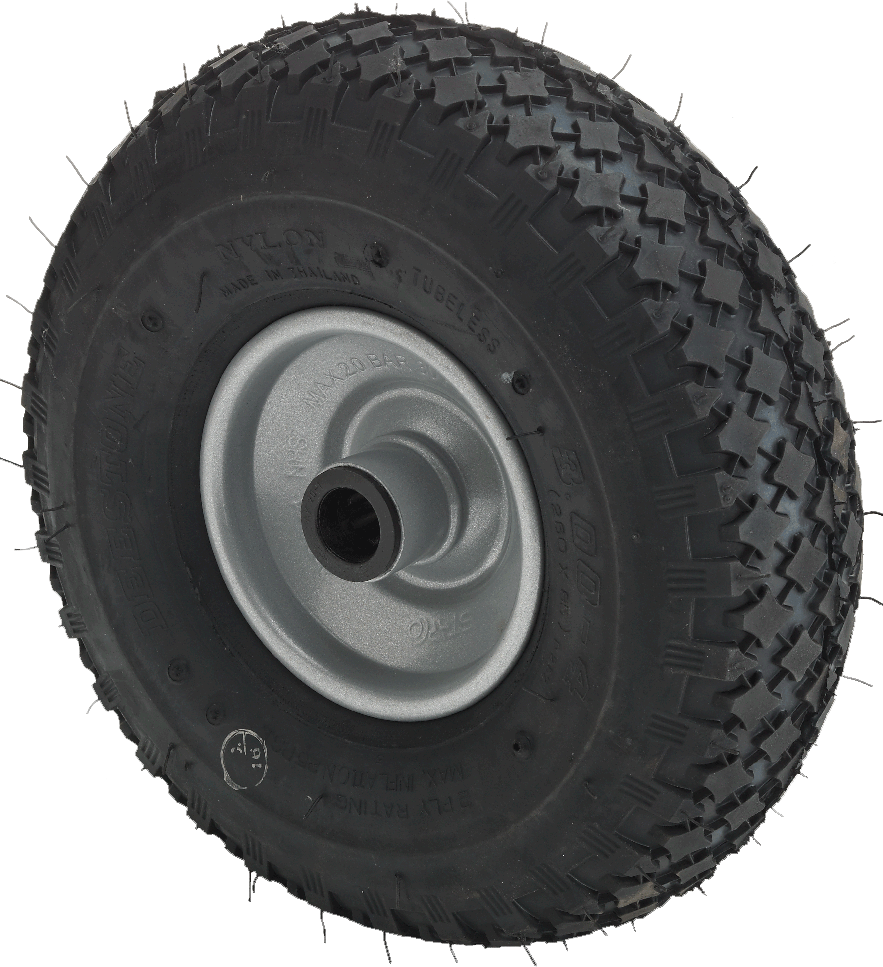

WHSL 3.00-4
Wheel 260 mm - 400 mm, 170 kg - 200 kg
Technical data
| Diameter | 260 mm |
| Wheel width | 85 mm |
| Hub length | 85 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 170 kg |
| Weight | 0.15 kg |
Wheel
- Black pneumatic wheel with a grey metal rim
WHSU 2003 61025
Wheel 200 mm - 400 mm, 2000 kg - 4000 kg
Technical data
| Diameter | 200 mm |
| Wheel width | 100 mm |
| Hub length | 100 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 2000 kg |
Wheel
- wheels with welded steel core - molded polyurethane tyre (Shore A 90)

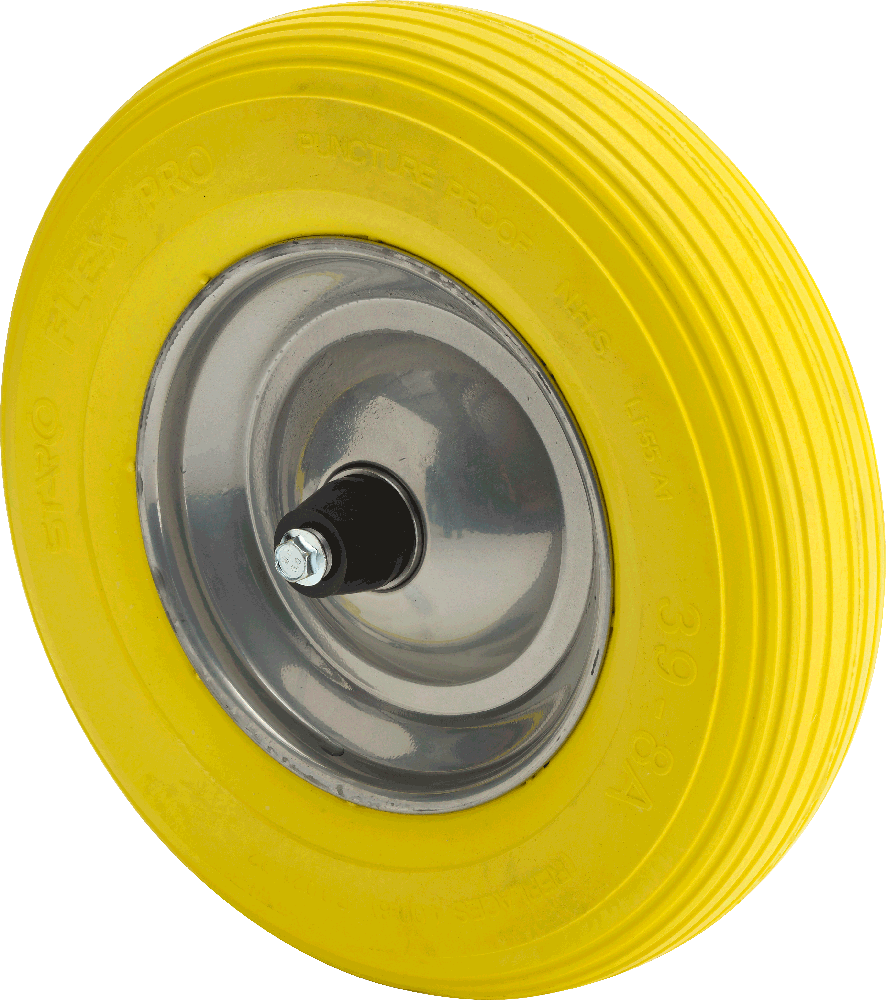

WHSU 3.00-4
Wheel 260 mm, 70 kg
Technical data
| Diameter | 260 mm |
| Wheel width | 75 mm |
| Hub length | 75 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 70 kg |
| Weight | 1.2 kg |
Wheel
- Puncture proof yellow polyurethane wheel with grey metal rim
WHTB 0803 6153
Wheel 80 mm - 100 mm, 110 kg - 140 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 110 kg |
| Weight | 0.4 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
WHTB 1253 6443
Wheel 125 mm, 240 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 240 kg |
| Weight | 0.9 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
WHTB 1253 6553
Wheel 125 mm, 240 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 64 mm |
| Wheel axle diameter | 25 mm |
| Load capacity | 240 kg |
| Weight | 0.9 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
