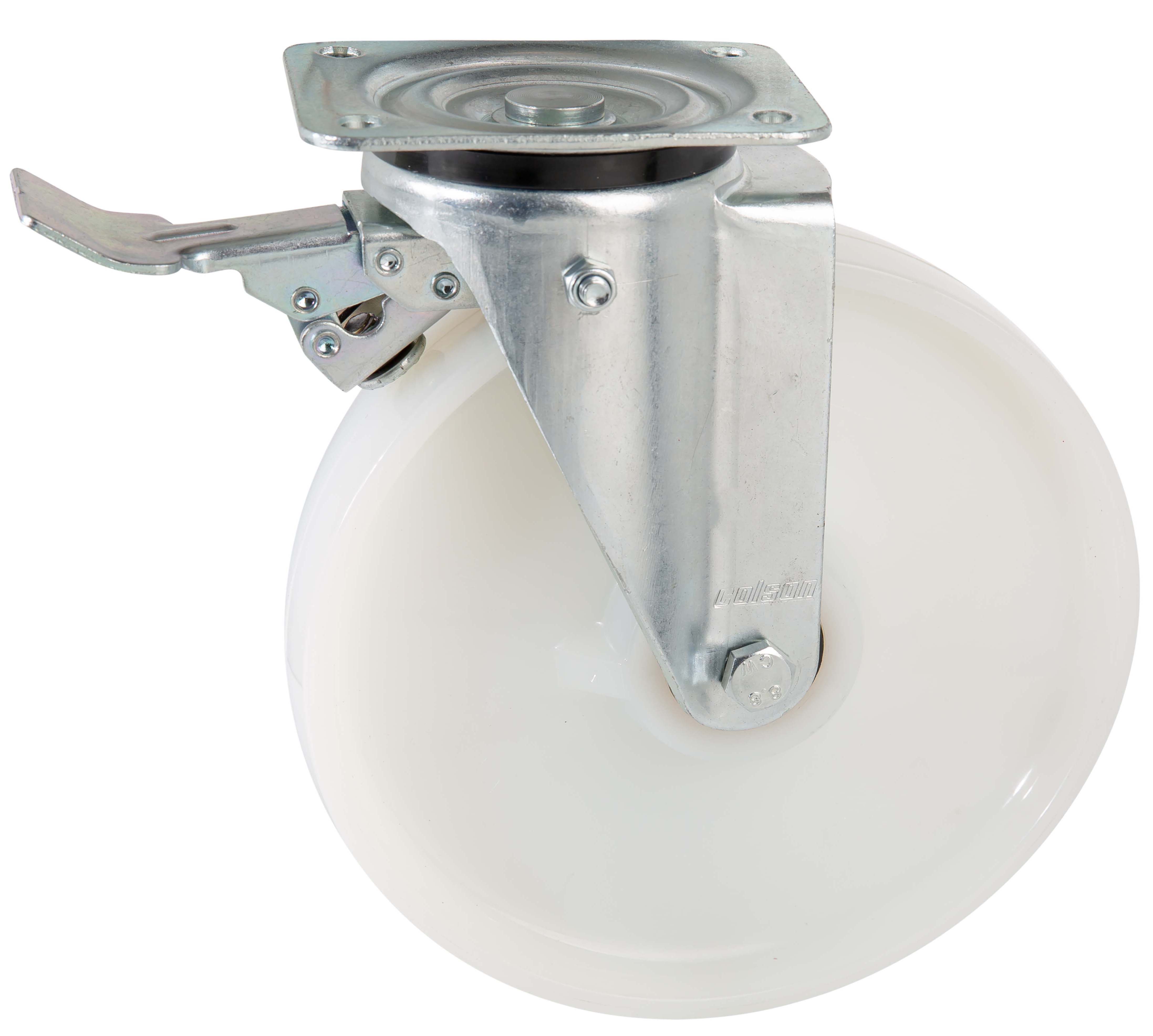

BTPN 2503 6443
Swivel castor with total brake mounted in front 250 mm, 500 kg
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Load capacity | 500 kg |
| Weight | 3.7 kg |
Wheel
- Polyamide wheel with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPR 1002 5100
Swivel castor with total brake mounted behind 100 mm - 200 mm, 150 kg - 300 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 50 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 117 mm |
| Load capacity | 150 kg |
| Weight | 1.205 kg |
Wheel
- Dark grey Polypropyleene wheel with a blue elastic rubber tyre (Performa, Shore A 65-70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPR 1005 5000
Swivel castor with total brake mounted behind 100 mm - 125 mm, 150 kg - 180 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 50 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 117 mm |
| Load capacity | 150 kg |
| Weight | 1.32 kg |
Wheel
- Dark grey Polypropyleene wheel with a blue elasticrubber tyre (Performa, Shore A 65 - 70) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

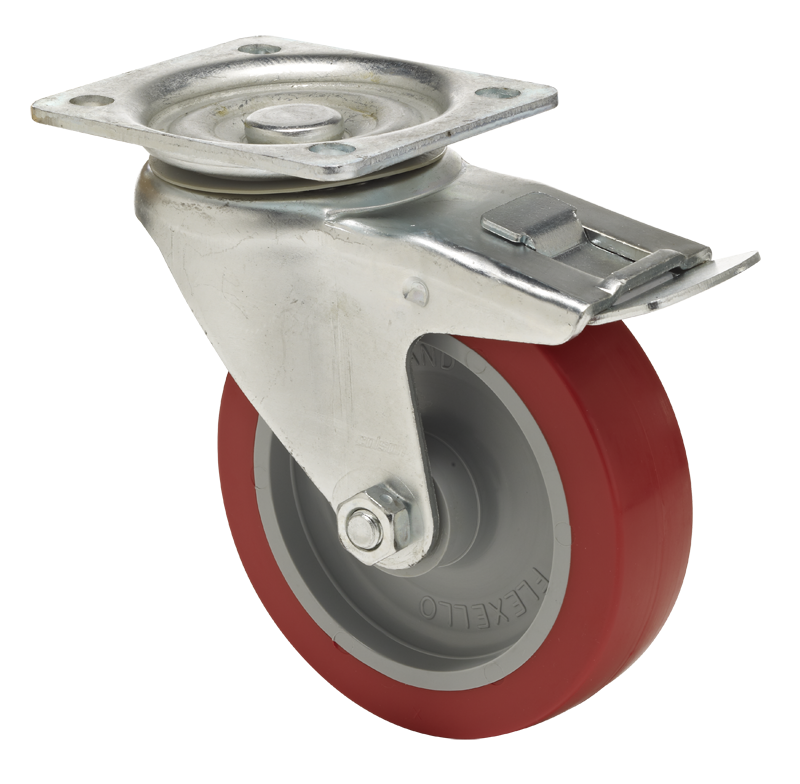

BTPU 1002 2100
Swivel castor with total brake mounted behind 100 mm - 200 mm, 250 kg - 500 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.3 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) and roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPU 1002 2101
Swivel castor with total brake mounted behind 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.5 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) and roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

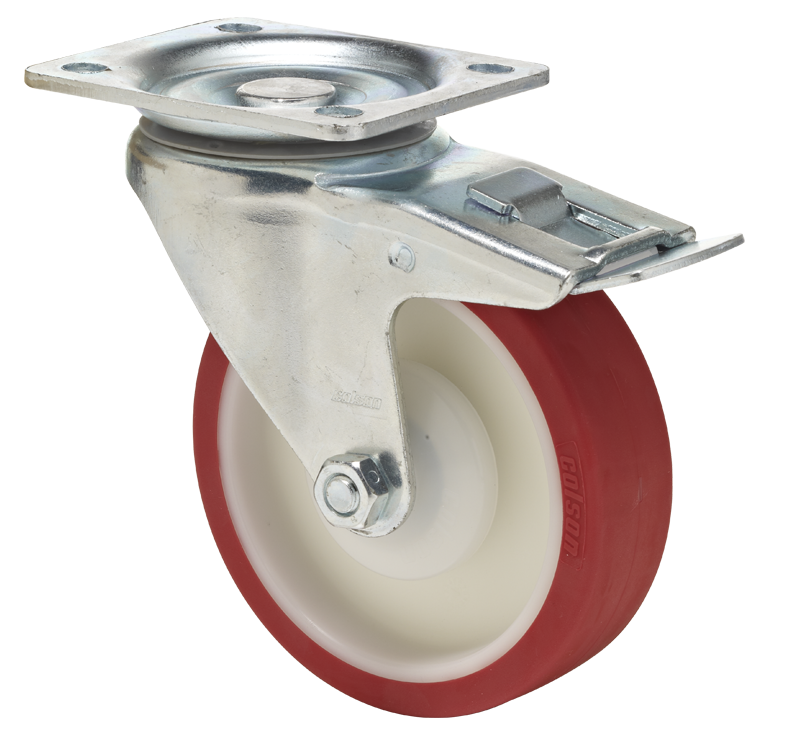

BTPU 1002 5100
Swivel castor with total brake mounted behind 80 mm - 125 mm, 175 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 10 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

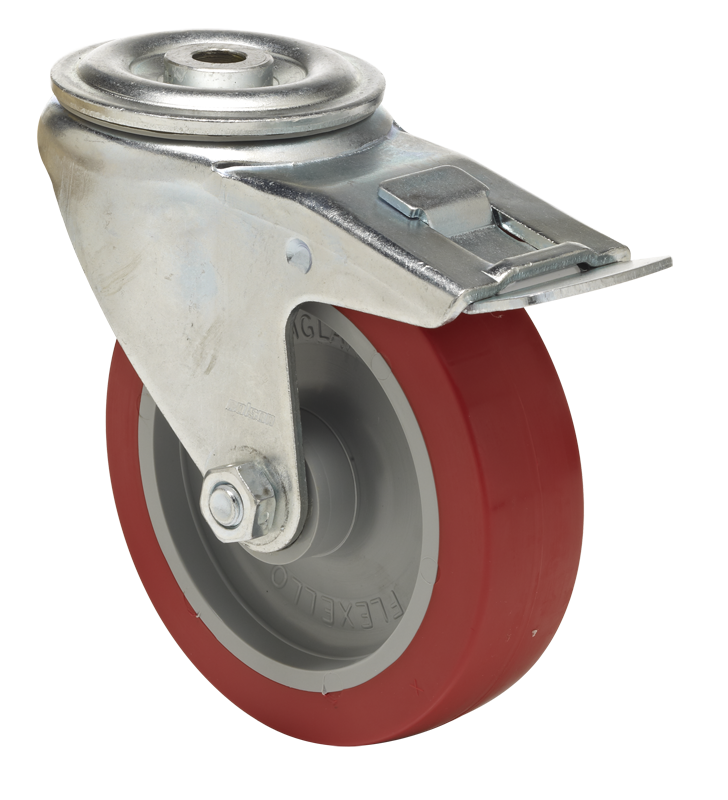

BTPU 1005 2000
Swivel castor with total brake mounted behind 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1.1 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) and roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
BTPU 1005 2001
Swivel castor with total brake mounted behind 100 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 250 kg |
| Weight | 1 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) and roller bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

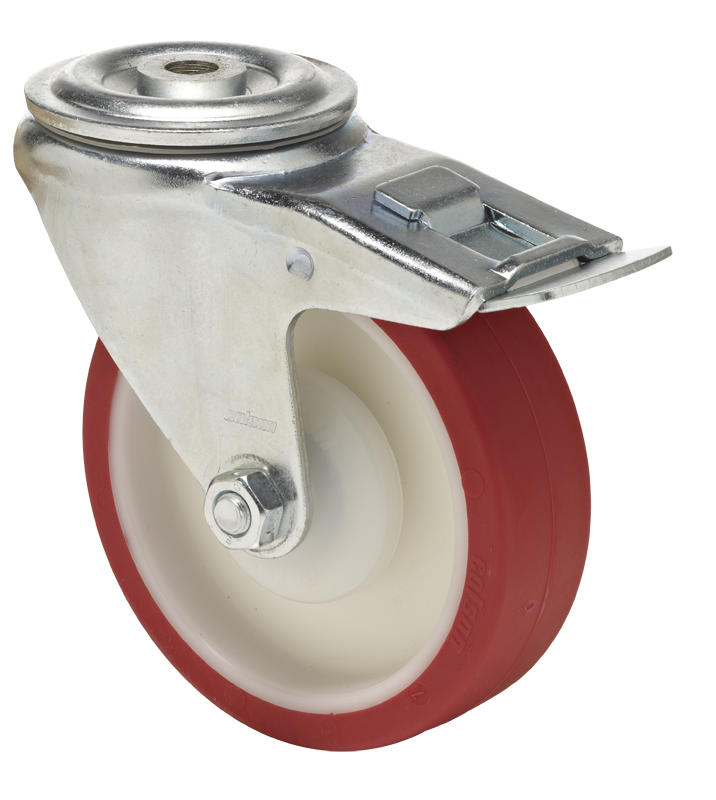

BTPU 1005 5000
Swivel castor with total brake mounted behind 80 mm - 125 mm, 175 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 125 mm |
| Offset | 40 mm |
| Wheel axle diameter | 10 mm |
| Bolt hole diameter | 12 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 125 kg |
| Weight | 1 kg |
Wheel
- Polyamide wheel with polyurethane tyre
- (Shore A 96) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity

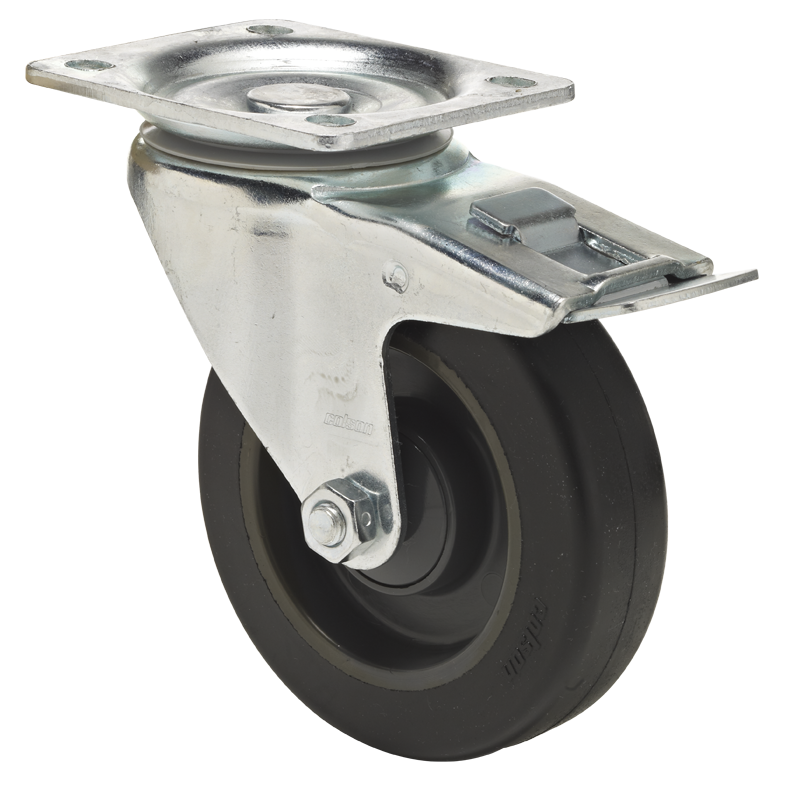

BTRB 1002 5100
Swivel castor with total brake mounted behind 80 mm - 250 mm, 150 kg - 475 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 48 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 10 mm |
| Top plate dimensions | 105 x 86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 150 kg |
| Weight | 1.3 kg |
Wheel
- Glass fibre reinforced polyamide wheel with black rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball raceways and sealring
- with total lock brake and an extra sturdy
- plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
