Stainless Steel Castors
In the age of high technology the latest hygiene regulations shape the climate in laboratories for biotechnology, medicine and food research. Cleanliness is an essential part of quality management. Stainless steel castors from Colson are dazzling with their outstanding properties for this kind of environment. Produced from high-quality pure steel and precisely manufactured, they bring sterilising and instrument cabinets and other mobile units safe and clean to their destination.

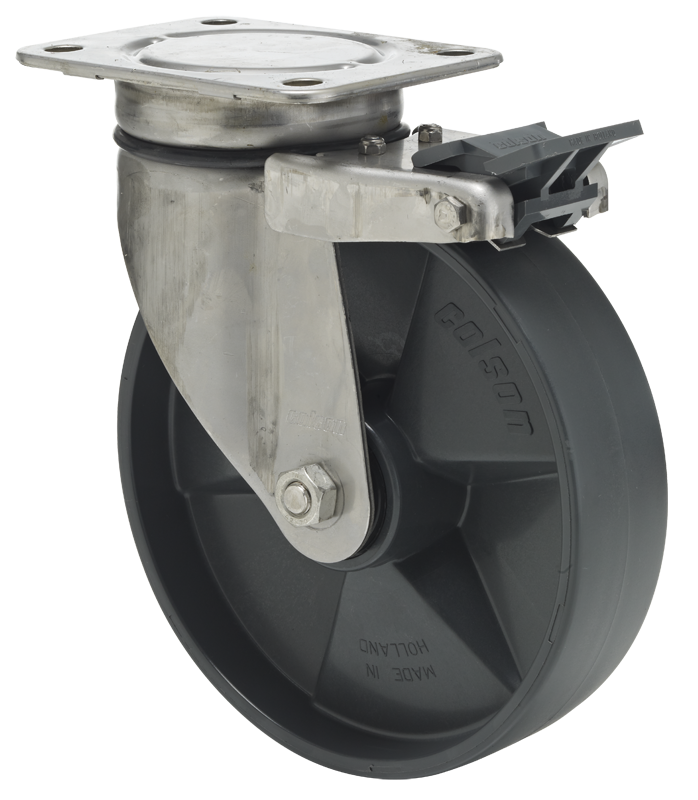

JXPN 1002 5000/B
Swivel castor with wheel locking brake 80 mm - 125 mm, 175 kg - 250 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 250 kg |
| Weight | 1.2 kg |
Wheel
- Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork of deep drawn stainless steel with wheel brake.
- Swivelhead with sealed precision ball bearing, grease nippel
- and O-ring seal. In case of extreme conditions
- (like frequent jet cleaning) maintenance by relubrication
- is necessary
