Bakery castors
Why do bakers chose Colson quality castors ?
After many tests and more than twenty years’ experience, it is clear to Colson what the answer is to this question:
- easy movement and manoeuvring
- long service life
- maintenance friendly
FXPT 1001 1000
Fixed castor 100 mm, 75 kg
Technical data
| Diameter | 100 mm |
| Height | 128 mm |
| Top plate dimensions | 105x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Brake swivel radius | 12 mm |
| Load capacity | 75 kg |
Wheel
- Plastic wheel with high temperature black rubber tyre
- (Shore A 62). Temperature resistance -40°C to + 300 °C
Technical description
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race
JLAT 1005 6150
Swivel castor 100 mm, 80 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 40 mm |
| Height | 128 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 80 kg |
| Weight | 0.9 kg |
Wheel
- High temperature rubber tyre 80° Shore A aluminium wheel centre with 2 ball bearings operating temperature from -40°C to +250°C not resistant to vegetable oils
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JLFL 0801 1000
Swivel castor 80 mm - 200 mm, 150 kg - 300 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 33 mm |
| Hub length | 40 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 150 kg |
| Weight | 1 kg |
Wheel
- Phenolic wheel with a plain bearing operating temperatures from -40°C to +250°C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JLFL 0805 1000
Swivel castor 80 mm - 200 mm, 150 kg - 300 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 33 mm |
| Hub length | 40 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 150 kg |
| Weight | 1 kg |
Wheel
- Phenolic wheel with a plain bearing operating temperatures from -40°C to +250°C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JLHN 0701 6152
Swivel castor 70 mm - 100 mm, 150 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 150 kg |
| Weight | 0.94 kg |
Wheel
- Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties Temperature resistance -40°C to + 300 °C with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JLHN 0705 6152
Swivel castor 70 mm - 100 mm, 150 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 150 kg |
| Weight | 0.9 kg |
Wheel
- Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties Temperature resistance -40°C to + 300 °C with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C

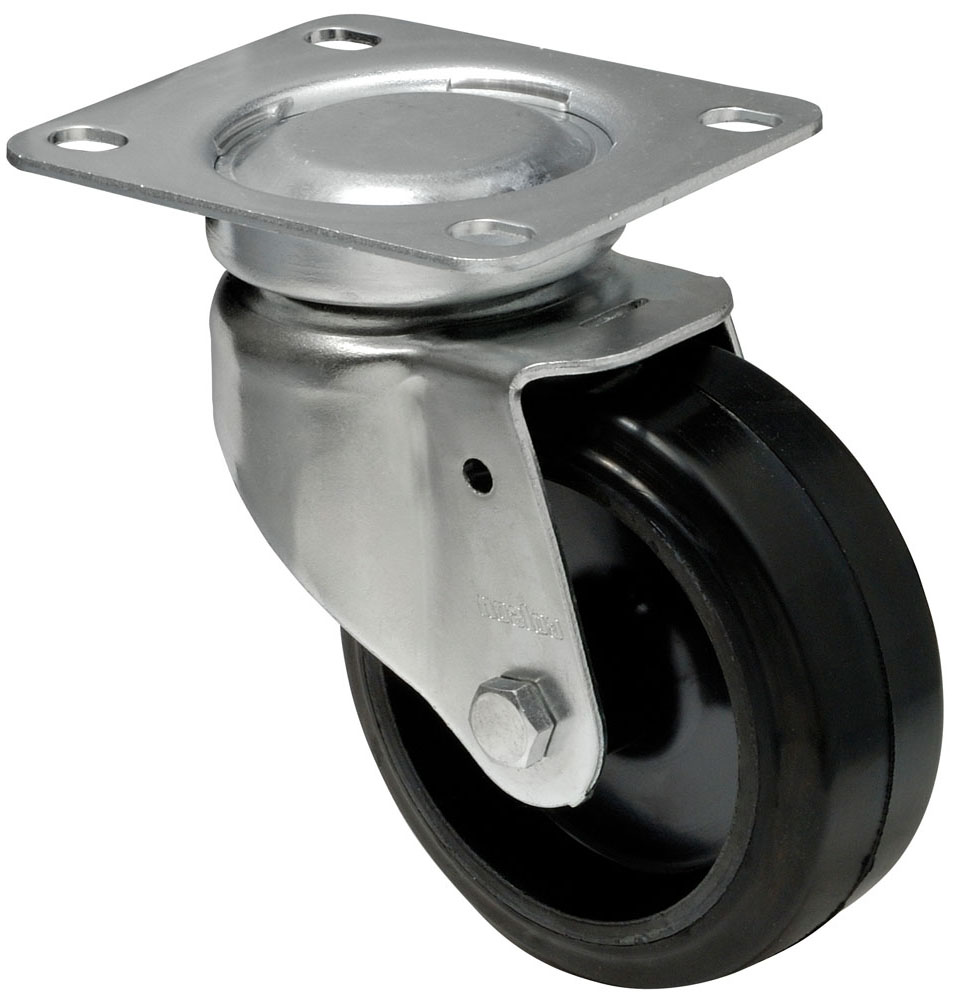

JLPT 1001 1000
Swivel castor 100 mm, 75 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 38 mm |
| Hub length | 40 mm |
| Height | 128 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 75 kg |
| Weight | 0.9 kg |
Wheel
- Plastic wheel with high temperature black rubber tyre
- (Shore A 62). Temperature resistance -40°C to + 300 °C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JLPT 1005 1000
Swivel castor 100 mm, 75 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 38 mm |
| Hub length | 40 mm |
| Height | 128 mm |
| Offset | 33 mm |
| Wheel axle diameter | 12 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 75 kg |
| Weight | 0.9 kg |
Wheel
- Plastic wheel with high temperature black rubber tyre
- (Shore A 62). Temperature resistance -40°C to + 300 °C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
JSFL 1002 6152
Swivel castor 100 mm, 240 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 240 kg |
| Weight | 1.3 kg |
Wheel
- Phenolic wheel for light Industrial use two ball bearings with labyrinth seals and bushing operating temperatures from -40°C to +250°C
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel

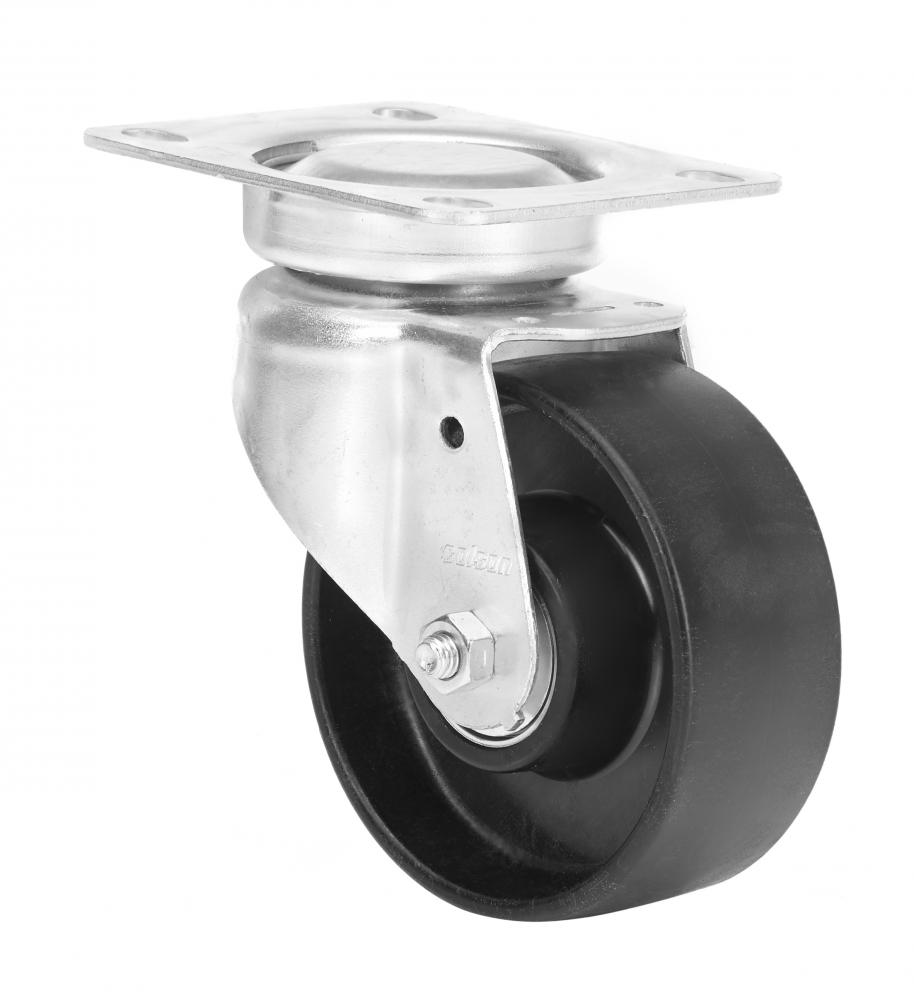

JSHN 0702 6152
Swivel castor 70 mm - 100 mm, 160 kg - 240 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 160 kg |
| Weight | 0.85 kg |
Wheel
- Varmo a high wear resistant synthetic material High resistance to moisture and water Sound reducing properties Temperature resistance -40°C to + 300 °C with two deep groove ball bearings
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel
