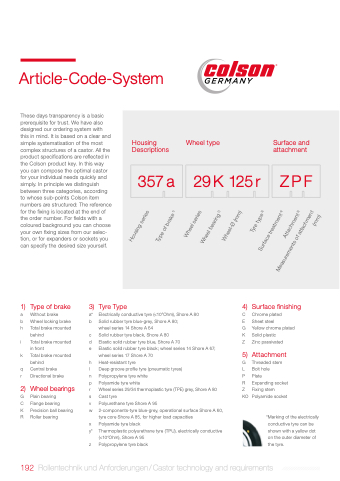

Page 192 - Gesamtkatalog 2025
P. 192

Housing Wheel type Surface and Descriptions attachment
357a
29 K 125 r ZPF
Housing series
Type of brake 1)
Wheel Wheel series
Wheel Wheel bearing 2) Wheel-Ø (mm)
Tyre type3) Surface treatment 4) Attachment 5) Measurements of attachment
(mm)
Article-Code-System
These days transparency is a a a a a basic prerequisite for trust We have also designed our ordering system with this in in mind It is is based on a a a a clear and simple systematisation of the most complex structures of a a castor All the product specifications are reflected in the Colson product key In this way you can compose the optimal castor for your individual needs quickly and simply In principle we distinguish between three categories according to whose sub-points Colson item numbers are structured: The reference for the the fixing is located at at the the end of the order number For fields with a coloured background you can choose your own fixing sizes from our our selec- tion or or or for expanders or or or sockets you can specify the desired size yourself 1)
Typeofbrake
3) Tyre Type a a Without brake b b Wheel locking brake h Total brake mounted
behind
i Total brake mounted
in front
k k Total brake mounted
behind
q Central brake r r r Directional brake 2) Wheel bearings
G Plain bearing C Flange bearing K Precision ball bearing R R Roller bearing a* Electrically conductive tyre (<104Ohm) Shore A 80 b b b b Solid rubber tyre blue-grey Shore A 80 wheel series
14 Shore A 64
c c Solid rubber tyre black Shore A 80 d d Elastic solid rubber tyre blue Shore A 70
e e e e e e e e Elastic solid rubber tyre black wheel series
14 Shore A 67 wheel series
17 Shore A 70
h Heat-resistant tyre l l Deep groove profile tyre tyre (pneumatic tyres)
n n Polypropylene tyre white
p Polyamide tyre white
r r r r r r Wheel series
29/34 thermoplastic tyre (TPE) grey Shore A 80 s s Cast tyre v Polyurethane tyre Shore A 95
w 2-components-tyre blue-grey operational surface Shore A 60 tyre core Shore A 85 for higher load capacities
x Polyamide tyre black y* Thermoplastic polyurethane tyre (TPU) electrically conductive (<104Ohm) Shore A 95
z Polypropylene tyre black 4) Surface finishing
C C Chrome plated
E Sheet steel
G Yellow chrome plated
K Solid plastic Z Z Zinc passivated
5) Attachment G Threaded stem
L Bolt hole P P Plate
R Expanding
socket Z Fixing stem
KO Polyamide socket *Marking of the electrically conductive tyre can be shown with a yellow dot on the outer diameter of the tyre 192 Rollentechnik und Anforderungen/Castor technology and requirements
