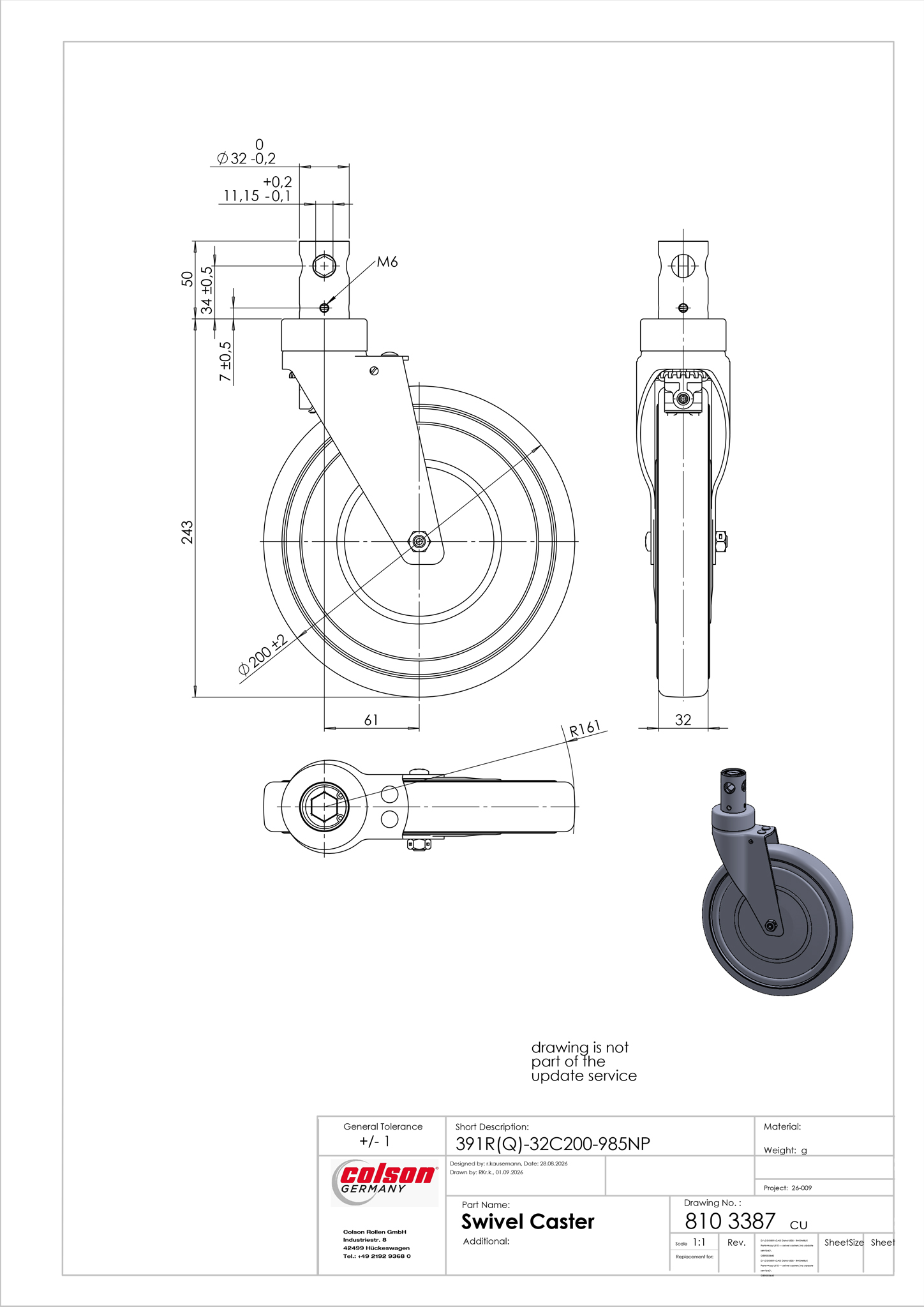

Swivel castor with central total brake, 100 mm - 200 mm, 80 kg - 120 kg

Part number: 391q 32C200b Z985

391q 32C200b Z985

Technical data

Diameter 200 mm
Tread width 32 mm
Height 243 mm
Offset 61 mm
Load capacity 120 kg

Accessories & options

Technical description

  • sheet steel metal housing
  • zinc passivated
  • presicion ball bearing in swivel head
  • protected from dust and water ingress by plastic sealing ring
  • integrated selection mechanism with total locking brake "q"
  • and directional locking brake "r"
  • selection mechanism continually greased
  • device to permit adjustment of the braking effect
  • (without removing the castor or wheel)
  • also available with other wheel variants



Wheel

  • solid rubber tyre blue-grey (Shore A 80)
  • sheet steel metal rim zinc passivated
  • metal thread quard
  • flange bearing

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical & diagnostic equipment
  • medical-technical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity
391q 32C100b Z985 100 mm 32 mm 139 mm 42 mm 80 kg
391r 32C100b Z985 100 mm 32 mm 139 mm 42 mm 80 kg
391q 32C125b Z985 125 mm 32 mm 164 mm 44 mm 100 kg
391r 32C125b Z985 125 mm 32 mm 164 mm 44 mm 100 kg
391q 32C150b Z985 150 mm 32 mm 191 mm 51 mm 120 kg
391r 32C150b Z985 150 mm 32 mm 191 mm 51 mm 120 kg
391q 32C200b Z985 200 mm 32 mm 243 mm 61 mm 120 kg
391r 32C200b Z985 200 mm 32 mm 243 mm 61 mm 120 kg
