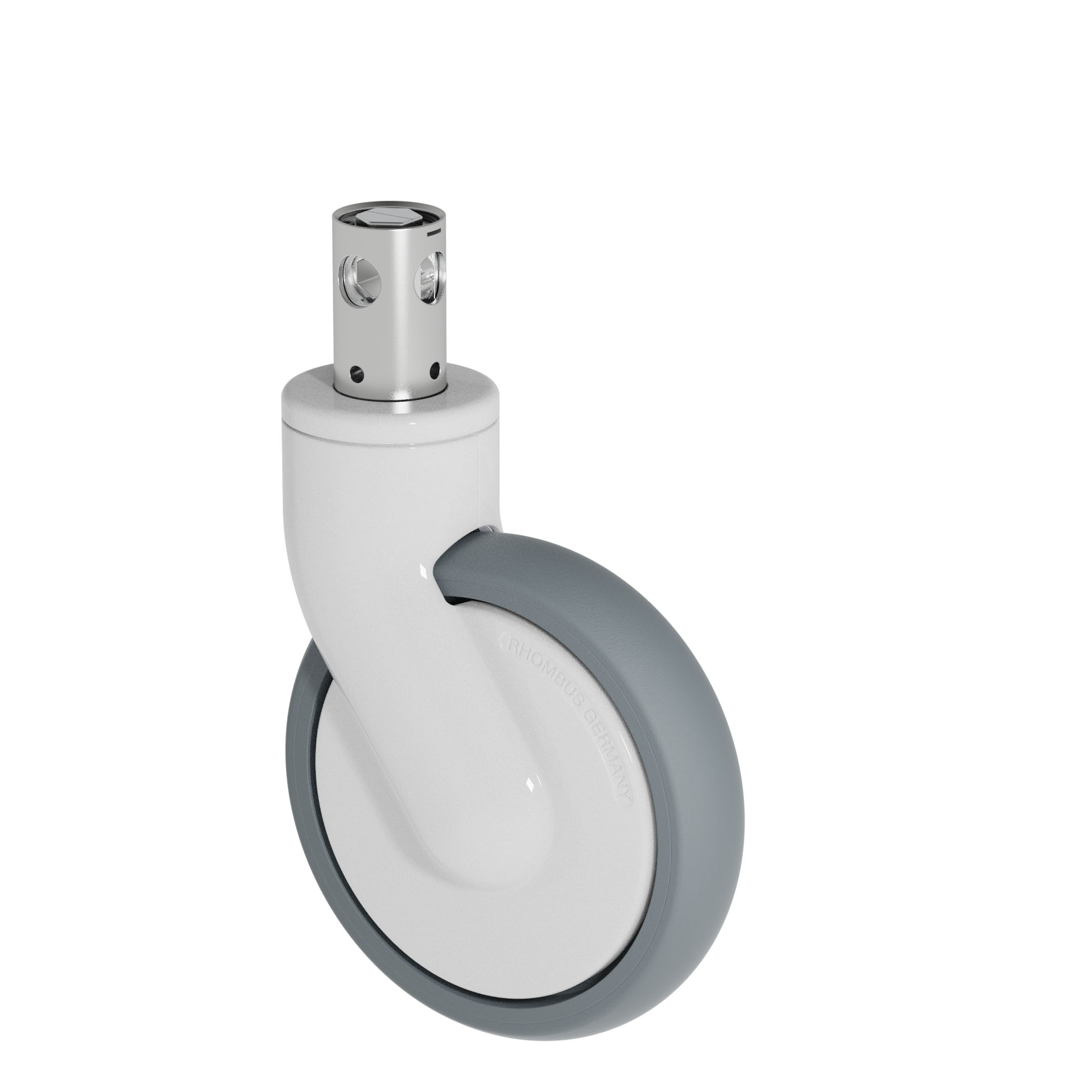

Swivel castor with central total brake, 100 mm - 200 mm, 100 kg - 150 kg
Part number: 398q 29K150v K985NP

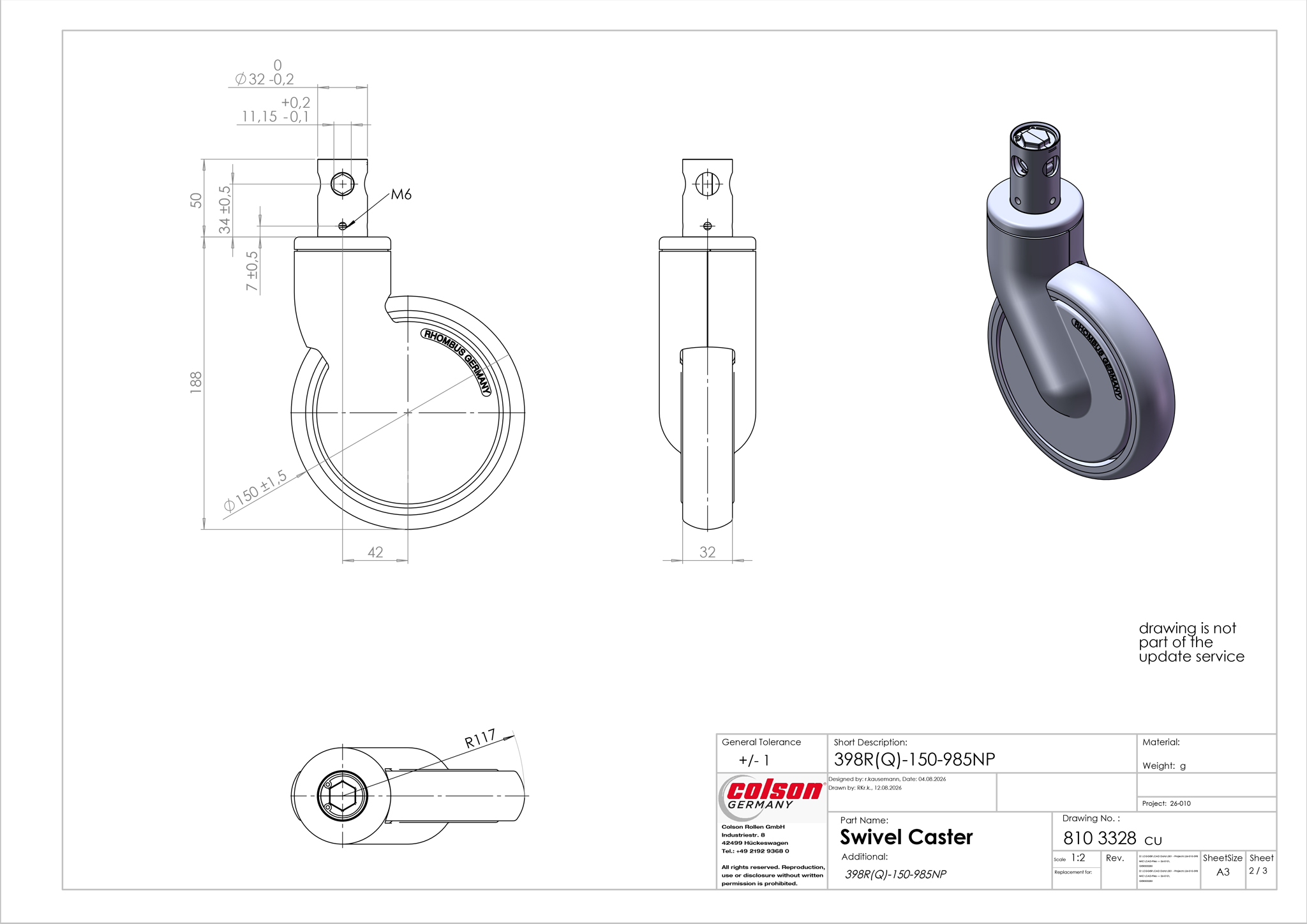

Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 150 kg |
| Weight | 1204 g |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Wheel
- thermoplastic polyurethane tyre (TPU) iron grey RAL 7011, Shore A 95 plastic wheel centre and plastic thread guard, silver grey RAL 7001 precision ball bearing
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
Variants
| Diameter | Tread width | Height | Offset | Load capacity | Weight | |
|---|---|---|---|---|---|---|
| 100 mm | 30 mm | 139 mm | 38 mm | 100 kg | 0 g | |
| 100 mm | 30 mm | 139 mm | 38 mm | 100 kg | 0 g | |
| 398q 29K125v K985 | 125 mm | 32 mm | 158 mm | 40 mm | 150 kg | 0 g |
| 398r 29K125v K985 | 125 mm | 32 mm | 158 mm | 40 mm | 150 kg | 0 g |
| 398q 29K150v K985 | 150 mm | 32 mm | 188 mm | 42 mm | 150 kg | 1204 g |
| 398r 29K150v K985 | 150 mm | 32 mm | 188 mm | 42 mm | 150 kg | 1206 g |
| 398q 37K200v K985 | 200 mm | 32 mm | 229 mm | 56 mm | 150 kg | 1564 g |
| 398r 37K200v K985 | 200 mm | 32 mm | 229 mm | 56 mm | 150 kg | 1560 g |
