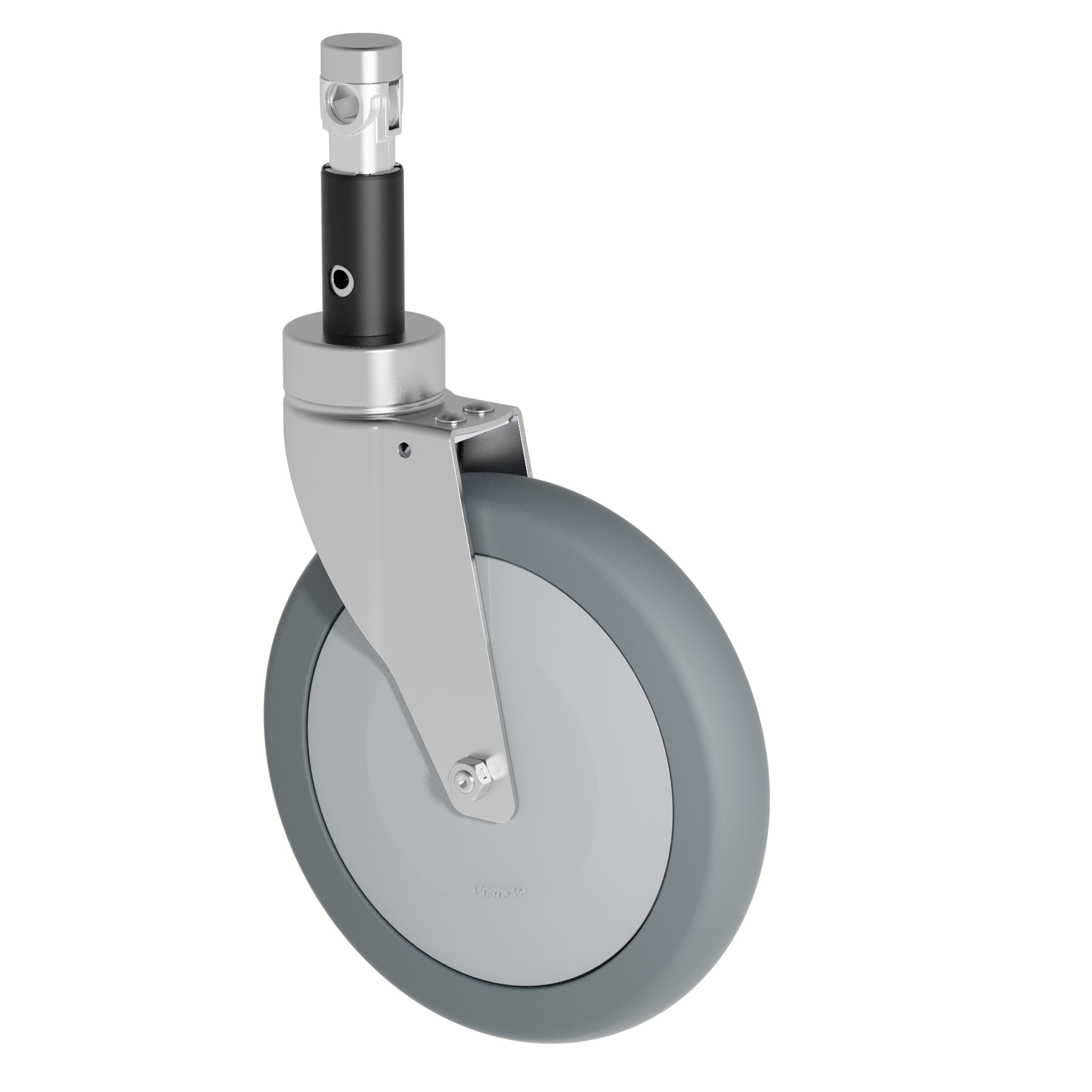

Swivel castor with central/directional total brake, 100 mm - 200 mm, 100 kg - 120 kg

Part number: 391r 29K200r Z2351

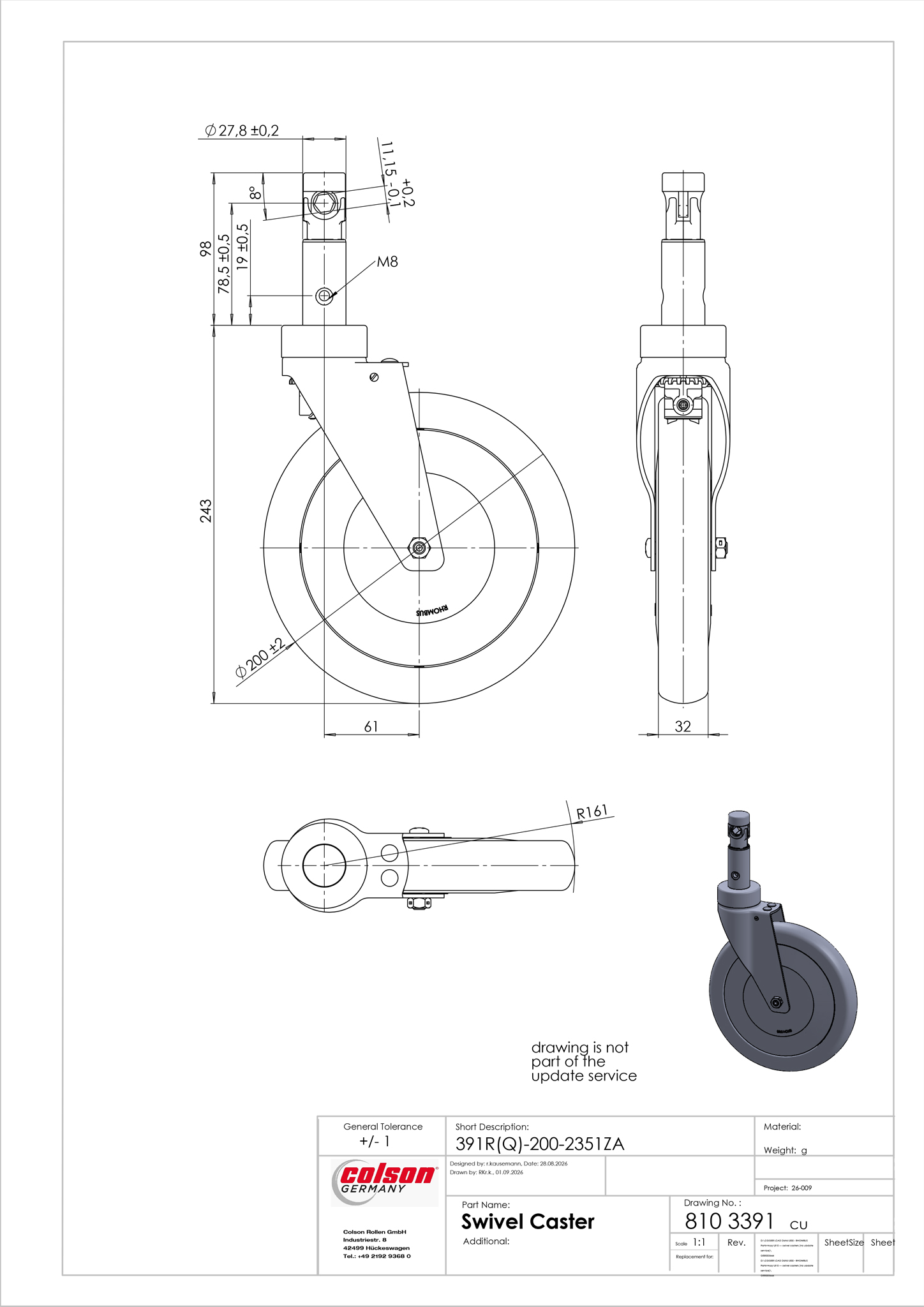

Technical data

Diameter 200 mm
Tread width 32 mm
Height 243 mm
Offset 61 mm
Load capacity 120 kg

Accessories & options

Technical description

  • sheet steel metal housing
  • zinc passivated
  • presicion ball bearing in swivel head
  • protected from dust and water ingress by plastic sealing ring
  • integrated selection mechanism with total locking brake "q"
  • and directional locking brake "r"
  • selection mechanism continually greased
  • device to permit adjustment of the braking effect
  • (without removing the castor or wheel)
  • also available with other wheel variants



Wheel

  • thermoplastic elastomer tyre (TPE) iron grey RAL 7011 (Shore A 80)
  • plastic wheel centre and thread guard silver grey RAL7001
  • precision ball bearing
  • Contact discoloration on unsealed grounds possible!>>

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical & diagnostic equipment
  • medical-technical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity
391q 29K100r Z2351 100 mm 30 mm 139 mm 42 mm 100 kg
391r 29K100r Z2351 100 mm 30 mm 139 mm 42 mm 100 kg
391q 29K125r Z2351 125 mm 32 mm 164 mm 44 mm 100 kg
391r 29K125r Z2351 125 mm 32 mm 164 mm 44 mm 100 kg
391q 29K150r Z2351 150 mm 32 mm 191 mm 51 mm 120 kg
391r 29K150r Z2351 150 mm 32 mm 191 mm 51 mm 120 kg
391q 29K200r Z2351 200 mm 32 mm 243 mm 61 mm 120 kg
391r 29K200r Z2351 200 mm 32 mm 243 mm 61 mm 120 kg
Reach compliant
Map
Rohs compliant
