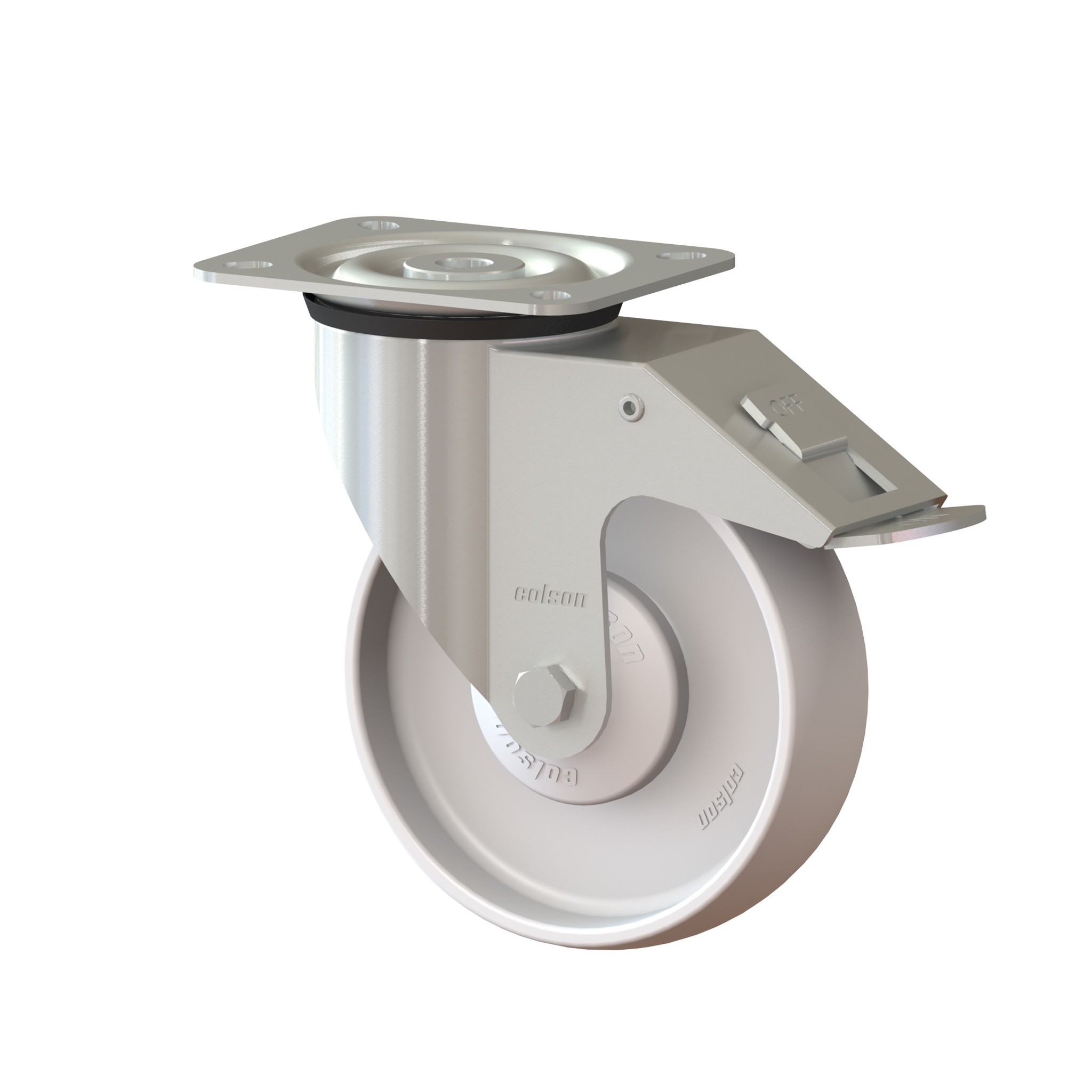

Swivel castor with total brake mounted behind, 80 mm - 200 mm, 150 kg - 400 kg

Part number: I62TZ-NL3K080
(Veloris)

Technical data

Diameter 80 mm
Wheel width 35 mm
Height 105 mm
Offset 34 mm
Top plate dimensions 104x85 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 150 kg

Technical description

  • pressed components made of carbon steel
  • protected with an additional
  • electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • injection-molded PA6 nylon in white color
  • with a hardness of 75 ± 5
  • Shore D
  • Ø80-125 mm single ball bearing
  • Ø160-200 mm double ball bearing

Variants

Diameter Wheel width Height Offset Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
80 mm 35 mm 105 mm 34 mm 104x85 mm 9 mm 80x60 mm 150 kg
I62TZ-NL3K160 160 mm 45 mm 195 mm 53 mm 135x110 mm 11 mm 105x80 mm 300 kg
I62TZ-NL3K200 200 mm 50 mm 235 mm 53 mm 135x110 mm 11 mm 105x80 mm 400 kg
Reach compliant
Map
Rohs compliant
